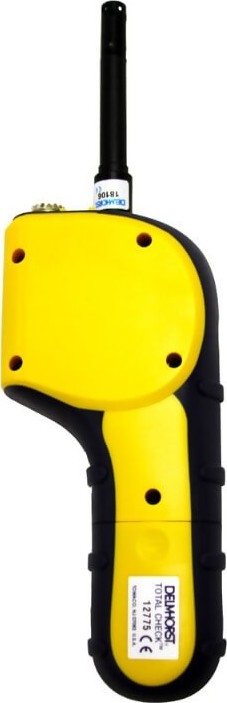

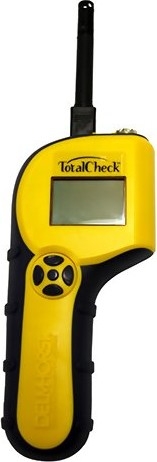

Delmhorst TotalCheck 3-in-1 Moisture Meter for Building Inspection

See More Moisture Meters for Water Damage Restoration

Delmhorst TotalCheck 3-in-1 Moisture Meter for Building Inspection

See More Moisture Meters for Water Damage Restoration
Price:
$1,250.00 - $1,490.00
    warrenty

    Product Description

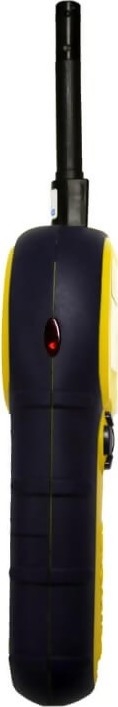

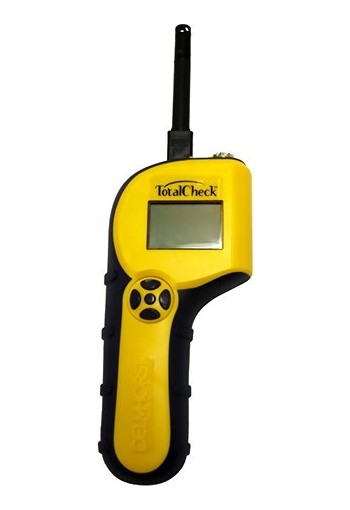

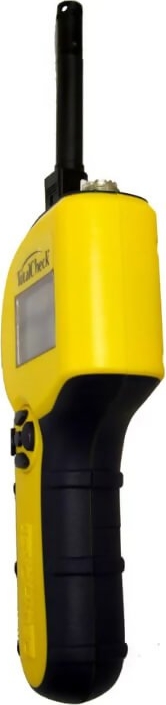

    Delmhorst TotalCheck 3-in-1 Moisture Meter for Building Inspection
    Bright, clear digital display
    Scan Mode: 0–300 numerical reference scale
    Store up to 1400 readings with date and time stamp

    Delmhorst’s TotalCheck 3-in-1 moisture meter measures moisture by pin and scan modes, and is fast acting, accurate, thermo-hygrometer. The removable RH sensor measures ambient temperature and RH, and calculate dew point and GPP. High levels of ambient humidity can be a warning sign at inspection jobs. RH is also a major concern when testing a concrete sub-floor. To address this concern, Delmhorst TotalCheck moisture meter is designed to conform to the ASTM F-2170 standard to determine RH in a concrete slab using in-situ probes. Using TotalCheck to follow the ASTM F-2170 will provide useful information to minimize moisture-related flooring problemsand failures


    line
    Kit Contents
    line

    Delmhorst TCHECK/CP TotalCheck Concrete Package 3-in-1 Moisture Meter for Building Inspection
    • Delmhorst TotalCheck 3-in-1 Moisture Meter for Building Inspection
    • RHT-S3 Humidity Sensor
    • 26-ES Electrode
    • RH/T-C1 Cable
    • 496 Pins (10 ten)
    • CS-3 Sleeves (10 ten)
    • Carrying Case
    • Instructions

    line

    Delmhorst TCHECK/S1/WD/PKG TotalCheck Wood Package 3-in-1 Moisture Meter for Building Inspection
    • Delmhorst TotalCheck 3-in-1 Moisture Meter for Building Inspection
    • RHT-S1 Humidity Sensor
    • 26-ES Electrode
    • 2-E Electrode
    • 496 Pins (10 ten)
    • MCS-1 Moisture Content Standard
    • Carrying Case
    • Instructions

    line

    Delmhorst TCHECK/FP TotalCheck Flooring Package 3-in-1 Moisture Meter for Building Inspection
    • Delmhorst TotalCheck 3-in-1 Moisture Meter for Building Inspection
    • RHT-S3 Humidity Sensor
    • RHT-C1 Cable
    • 26-ES Electrode
    • 496 Pins (10 ten)
    • CS-3 Sleeves (10 ten)
    • PC/KIT Software
    • Carrying Case
    • Instructions


    line
    Features
    line

    • Bright, clear digital display.
    • Pin Mode:
      • 5%-60% wood scale.
      • Corrects for 69 individual wood species and temperature (°F and °C).
      • 0.1% – 6% drywall scale.
      • 0–100 numerical reference scale for non-wood building materials.

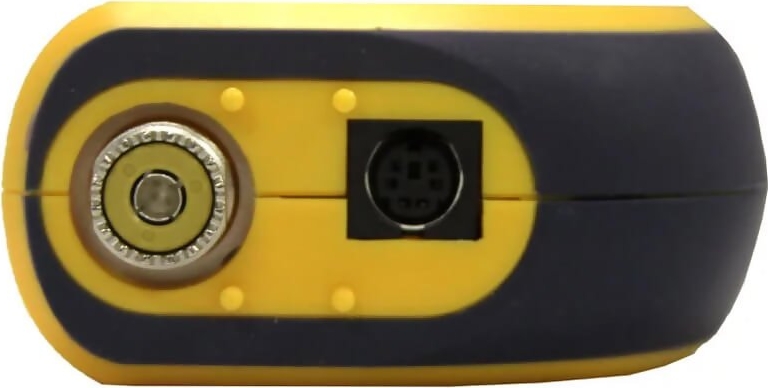

      • Built-in connector accepts any Delmhorst electrode.
    • Scan Mode: 0–300 numerical reference scale.
    • Thermo-hygrometer with RH sensor:
      • Temperature Range: -40°F - 255°F (-40°C - 124°C).
      • Relative Humidity Range: 0%–100%.
      • Dew Point Range: -40°F - 176°F (-40°C - 80°C).
      • GPP Range: 0.1 - 3820 GPP (Grains Per Pound).
      • Sensor can be used for in-situ concrete testing following the ASTM F2170 standard.
    • Store up to 1400 readings with date and time stamp.
    • View stored readings on screen.
    • Organize readings by job for easy reference.
    • Optional software lets you download readings to your computer and generate Excel reports.
    • Size: 8 ½” x 3 3/8” x 1 ¾”.
    • Weight: 11 oz.
    • Rugged construction ensures years of reliable use.
    • Sturdy plastic carrying case.
    • 9V battery.
    • 1-year warranty.


    line
    Accessories
    line

    1849

    • An alternate to the 496 pin for the 26-ES, the 1849 is a 1 ½” insulated pin with 1/2" penetration. The 1849 is suitable for wood up to 2" thick.

    line

    2497/A-100

    • Uninsulated pin and retainer with 5/16" penetration. Standard on all meters with built-in pins and the 2-E and 4-E electrodes. Used on wood up to 6/4 (1 ½”), concrete and gypsum

    line

    305RET-0021

    • Retainer used to hold contact pins in place. Used with #608 and #608/001. Available in packs of 4 as 305RET-0021/4.

    line

    496

    • 496 contact pins are insulated except at the tips, and measure 2" overall with 1 1/8" penetration. Standard on the 26-ES, and can be used to check wood up to 5" thick.

    line

    608

    • The 608 insulated contact pins measure 4" overall, and penetrate 3 1/4". Standard on 21-E and 18-ES electrodes, and can be used on roofing, insulation, timber, poles, and EIFS. Also available in 7” length with 6” penetration as 608/001.

    line

    632

    • Retainer used to hold contact pins in place. Used with #496, #1849, and #A-111 pins. Available in packs of 4 as 632/4.

    line

    A-111

    • Another alternative to the 496, the A-111 is an uninsulated contact pin measures 1 7/16” and has 1/2" penetration. The A-111 is compatible with both the 26-ES and the 22-E, and its tapered point makes it easier to penetrate into hard surfaces. Can be used on wood up to 2" thick.

    line

    CS-3

    • Plastic sleeve required when performing ASTM F-2170 tests on concrete. Used with the RH/T-S3 attachment included with Total Check and HT-4000F. Order in packs of 20 CS-3/20

    line

    HP-1

    • Makes pilot holes in stucco to reduce pin damage

    line

    MCS-1

    • Moisture content standards are great for verifying that your Delmhorst moisture meter is in calibration. The MCS-1 can be used on any meter with a wood scale. With two electrical resistance values (12% and 22%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy. The MCS-1 is also available with a letter of certificationtraceable to NIST.

    line

    PC/KIT

    Enables you to download stored readings from the meter to a PC via infrared linking. This software will enable you to:

    • Export job data to Excel.
    • Customize printing options.
    • View readings and stats in the application program.
    • Save and print individual or group job readings.
    • Customize job title.
    • View data in Fahrenheit or Celsius.
    • Append notes to each job.
    • Generate graphical histogram.

    All these features are provided in a easy to use GUI interface, and are compatible with Windows 95/98/ME/2000/XP/Vista/7/8/10.

    The PC/KIT is included in several of our moisture meter packages, or may be ordered separately. It can be used with the Moisture Check, Navigator Pro, RDM-3, RDM-3P, and Total Check moisture meters

    line

    Relative Humidity Test Kit

    • The relative humidity test kit is great for testing the accuracy of our detachable RH/T-S1 and RH/T-S3 relative humidity sensors. The air inside the test kit bottle is controlled by a salt solution, which keeps the relative humidity constant. The kit is available with either 33% or 75% relative humidity (Order asRH/TK/33 and RH/TK/75 respectively).

    line

    RH/T-C1

    • Extension cable that connects to the RH/T-S3, allowing you to easily view your meter’s screen while performing ASTM F-2170 tests on concrete.

    line

    RH/T-S3

    • Detachable relative humidity/temperature sensor that is included with Total Check and HT-4000F. Can be used to obtain ambient RH/T readings, or for performing ASTM F-2170 tests on concrete. Order individually or in packs of 5 as RH/T-S3/5.


    line
    Eletrodes
    line

    Delmhorst offers a wide assortment of electrodes known throughout the industry for their durability. All Delmhorst electrodes fit any Delmhorst moisture meter. Below are electrodes that are typically used for this model:

    2-E

    Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications

    • Home inspector: use on wood joists and drywall.
    • Paper producer: use on curved surfaces such as cardboard and paper tubes.
    • Woodworker: use on timber, poles, and veneer/

    2-E is also available as the 2- ET with a tapped handle for hard to reach areas. Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.

    line

    26-ES

    The 496 contact pins that come with the 26-ES penetrate 1 1/8” and have insulated shanks so that only the tips are exposed. The pins make contact only at their uncoated tips and provide much more accurate readings of moisture content at various levels of penetration. This feature is useful for a variety of different applications

    • Flooring installers: Penetrate through flooring to plywood sub-floor, or concrete.
    • Dry kiln operators: Identify moisture gradients which helps to identify the drying pattern.
    • Furniture manufacturers and craftsmen: Easily check high density hardwood that short pins are unable to penetrate

    Also available as the 26-ED, which includes gauge to measure pin penetration depth

    line

    21-E
    • The 608 pins that come with the 21-E are insulated, except at the tips, and can reach a maximum penetration of 3-1/4".
    • Great for use on roofs, insulation, or EIFS.
    • 21-E is also available as the 21-E/001 with 6" penetration, or as the 21-ET with a tapped handle for hard to reach areas.

    line

    19-E/STC
    • Features two 5'' long blades, bent to a 35° angle, and coated in Teflon except for the tips. Great for checking behind trim and baseboard molding.


    line
    Downloads
    line

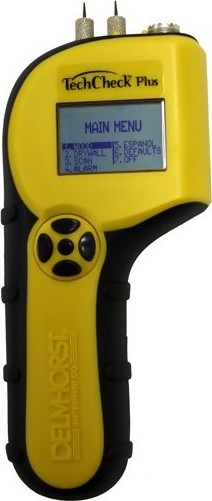

    Delmhorst TechCheck Plus Moisture Meter for Building Inspection - Owner’s Manual
    Delmhorst Accessories & Electrodes - Catalog Online


    lineF.A.Q.line

    BUILDING INSPECTION:

    Why should i use a Moisture Meter?

    Home Inspectors, Pest Control Operators and EIFS inspectors know that Moisture intrusion is the single most important factor affecting the integrity of building structures. Delmhorst Instrument Company offers Moisture Meter packages specifically manufactured to meet the needs of inspectors. Proper use of a Moisture Meter allows the inspector to easily identify the source of Moisture and to locate areas in the building that have been affected by moisture.

    How does a Moisture Meter work?

    There are two types of Moisture Meters typically used by the home inspector. Pin-type Meters, which utilize the principle of electrical resistance, use wood or other hygroscopic materials as an element in a circuit by driving two pins or electrodes into it.

    Pinless Meters use radio frequency signals to penetrate the material being tested. There is no pin intrusion into the surface of the material you are checking.

    Can i use a Moisture Meter to check for pest infestation?

    Yes -- a few Meter readings in key locations of the structure will quickly indicate if the areas are safe or in danger of infestation. We recommend using pin-type Meters for pest control applications as the best way to identify the exact point of infestation behind walls and ceilings. The key to finding hidden Moisture is to use an electrode with insulated contact pins. These pins read only at their un-insulated pin tips, allowing the contractor to drive the pins into material at different depths, noting readings at each level of penetration.

    A pinless Meter is a good way to identify infested areas, as long as you do not have to penetrate into a hidden material.

    At what level of Moisture does infestation or decay occur?

    Wood technologists and pest control experts agree that most fungi need at least 20% MC. Readings higher then 20% is susceptible to mold growth and decay. Readings in the 17%-20% are borderline and normally require further testing. On the other hand infestation can occur at much lower levels, especially in humid conditions. Old House Borer and Powderpost Beetles can attack wood that falls in the 12-13% range.

    Which type of Moisture Meter works best for EIFS?

    To quickly identify wet areas, a pinless Meter is easy to use. Pinless Meters offer the convenience of testing a large area quickly, and help you determine if further testing is required in certain spots.

    Pinless Meters read Moisture closest to the source of the magnetic field, in this case, at the surface. Most pin-less Meters read at a depth from 1/2" to 1". Moisture that resides in the substrate or insulation may go undetected without using a deep penetrating electrode. It is also important to remember that any metal or other conductive material behind the EIFS may give false readings.

    A pin type Meter, on the other hand, is the best way to identify the exact location of Moisture in the substrate and framing. A pin-type uses two pins that penetrate into the building at the users desired depth. When insulated contact pins are used, only the uncoated tips are exposed to the wood fiber, providing an accurate reading of Moisture content at various levels of penetration. Pin-type Meters are the only instruments that allow the inspector to identify exact location of Moisture at a given point.

    Many EIFS inspectors use both types of Meters. They can quickly identify problem areas using a pin-less Meter, and also use a pin-type Meter to identify exact location of Moisture in the wood substrate.

    Where does most Moisture intrusion occur in eifs clad houses?

    Most Moisture intrusion occurs around windows, doors and any flashing. In many cases the Moisture intrusion is directly related to poor installation practices.

    How can i find Moisture in the substrate or frame of the house.

    The most effective way to check for Moisture in the substrate or frame is to us our 21-E electrode with 6" penetration pins. This method allows you to locate Moisture behind the EIFS without it having to be torn away.

    How Do I Keep a Delmhorst Meter in Good Working Condition?

    Delmhorst Moisture Meters are well known for their ruggedness and ability to withstand years of rough handling. Like any testing instrument, a little care goes a long way toward trouble-free service:

    • Store the Meter in clean, dry place
    • Change batteries and pins as needed
    • Keep the Meter and electrode clean by using any biodegradable cleanser sparingly on external parts only.

    If you have any doubt about the working condition of your Meter, send it to Delmhorst. We can repair and re-calibrate your instrument to its original standards and return it to you quickly.



    FLOORING & WOOD PRODUCTS:

    Why should i use a Moisture Meter?

    Structurally sound and beautiful in appearance, wood is the ideal raw material. Flooring professionals know that Moisture content is the single most important factor affecting the quality of a wood flooring installation.

    To ensure quality from the manufacturer to the final installation, Delmhorst offers a full range of Moisture Meters that help minimize defects such as shrinkage, cracks, and splits. Years of experience, high-tech tools and controls, and premium grade wood cannot make a difference if Moisture content goes unchecked.

    How does a Moisture Meter work?

    There are two types of Moisture Meters typically used in the flooring industry. Pin-type Meters, which utilize the principle of electrical resistance, use wood or other hygroscopic materials as an element in a circuit by driving two pins or electrodes into it.

    Pinless Meters use radio frequency signals to penetrate the material being tested. There is no pin intrusion into the surface of the material you are checking.

    Which type of Moisture Meter works best for a flooring job?

    To quickly identify wet areas in floors, pinless Meters are easy to use. They offer the convenience of testing a large area quickly, and help you determine if further testing is required in certain spots. A pinless Meter may also be used to determine if water-born finishes are dry and ready for a second application.

    A pin type Meter, on the other hand, is the best way to identify the exact location of Moisture in sub-floors. The key to finding hidden Moisture is to use an electrode with insulated contact pins. These pins read only at their un-insulated pin tips, allowing the contractor to drive the pins into the floor and through to the sub-floor, noting readings at each level of penetration.

    What are the ideal Moisture conditions for the sub-floor and wood flooring so problems can be avoided?

    Flooring strips or planks - and the sub-floor - should be brought to equilibrium before installation. Best results are obtained when the wood sub-floor is within 4% MC of the flooring, maximum.

    If the floor is on concrete, especially a slab on grade, the challenge is to be sure that the slab is dry and not likely to pick up Moisture later on. Please refer to the Operating Instructions section under PRODUCT SUPPORT for more info.

    Why doesn't the Meter give Moisture content in percent on concrete?

    Because the exact makeup of concrete is usually unknown, it is virtually impossible to provide a %MC calibration. Delmhorst Moisture Meters feature a 0-100 reference scale that provides “dry to wet” indications of the presence of Moisture. Factors that affect concrete Moisture readings include it's mix ratio and type, voids, and depth that the pin penetrates.

    How does static electricity affect Meter readings?

    In cold and/or dry climates, static charges may cause erratic Meter readings in the range below 8 percent. Measuring such high resistance under these conditions is difficult enough, but the winter months can make it more so. The analog Meter pointer "jumps" all over the scale or the digital display may flash erratic numbers. To minimize the effect of static:

    • Try not to let the electrode cable dangle.
    • Drive the electrode pins into the wood with the Meter turned off, and then turn the Meter on when you are ready to take the reading.
    • After driving the pins, place your hands next to them on each side of the electrode to help discharge the static from the board.
    • You can also try passing a damp cloth over the board's surface to pick up any static charges before driving the pins.

    These suggestions are not guaranteed. However, depending on the conditions, any one of them can work, either alone or in combination with another.

    Are there board width limitations in using Moisture Meters?

    Board width is not a limiting factor when using a pin type Moisture Meter. As long as the pins make good contact, the Meter can be used on anything from small dowels to wide planks.

    For accurate results with a pinless Meter, the material you're testing must be at least the width of the scanning area on the bottom of the Meter. Otherwise the Meter will not make firm contact with the board and may provide inconsistent, unreliable readings.

    How Do Delmhorst Meters Handle Readings on Rough-Surfaced Lumber and Cupped Boards?

    With a pin-type Meter, these conditions are not a problem. Just drive the pins as you would normally, insuring firm, positive contact and detect unknown gradients.

    Pinless Meters, however, need firm contact to a flat surface so their readings on uneven surfaces may be unreliable.

    How do i determine if the Moisture problem is in the finished floor or the sub floor?

    In order to find this out, you must use a pin type Meter with insulated contact pins. First, take several readings in the layer just below the surface; then make a series of core readings, closer to the center of the board thickness. After you have noted these readings, hammer the pins through the flooring material until you make contact with the sub floor.

    If your readings throughout this process are uniform, then there is not a Moisture problem. If readings increase as you go further into the floor, and again in the sub floor, this indicates that the sub floor is a source of Moisture.

    How does temperature affect the accuracy of Meter readings?

    After Moisture content and a Moisture gradient, if one exists, wood temperature is the most important factor affecting the accuracy of your readings. As wood temperature increases its electrical resistance decreases and indicated Moisture content rises. The lower the temperature, the lower the indicated Moisture content. Depending on the temperature and Moisture content, you may have to make a correction.

    Does the glue used in plywood affect Meter accuracy?

    In most cases, no. To verify this, use insulated pin to make individual tests by touching the outer ply, glue lines, and center plys. If the glue reads the same as wood, use the Meter on plywood as you would any solid material and take the readings at face value, without species correction.

    How Do I Keep a Delmhorst Meter in Good Working Condition?

    Delmhorst moisture meters are well known for their ruggedness and ability to withstand years of rough handling. Like any testing instrument, a little care goes a long way toward trouble-free service:

    • Store the meter in clean, dry place
    • Change batteries and pins as needed
    • Keep the meter and electrode clean by using any biodegradable cleanser sparingly on external parts only.

    If you have any further questions on using a moisture meter for flooring applications
