Aqua-Boy TEM-1 Textile Moisture Meter

See More Textile Moisture Meters

Aqua-Boy TEM-1 Textile Moisture Meter

See More Textile Moisture Meters
Price:
$1,695.00 - $1,807.00
    warrenty

    Product Description
    Aqua-Boy TEM-1 Textile Moisture Meter

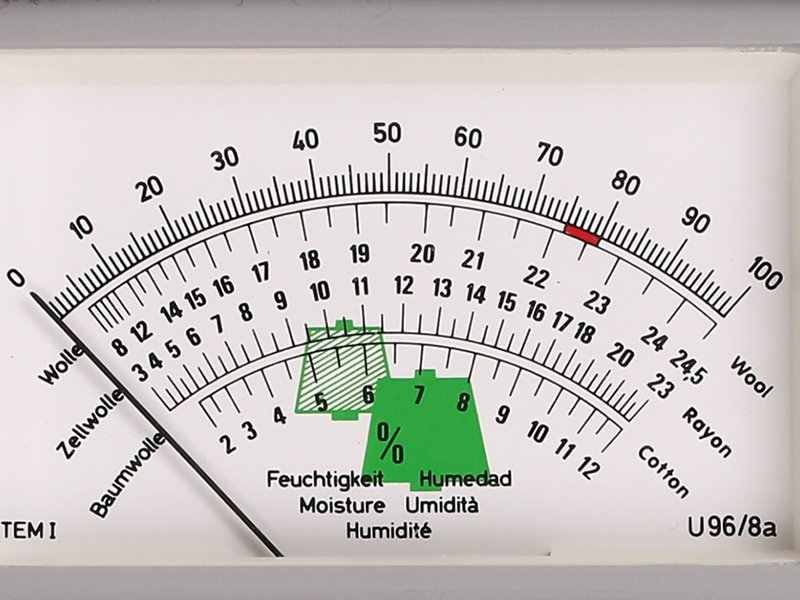

    Multiple scale for direct readings for wool, rayon and cotton

    The Aqua-Boy TEM-1 Textile Moisture Meter determines the residual moisture in yarn bobbins, fabric folls, filaments, fiber flocks, etc.

    The measuring principle of the Aqua-Boy TEM-1 Textile Moisture Meter is based on the electrical conductivity of the material which always bears a fixed relation to the moisture. All changes in resistance inside the measuring ranges of interest are sufficiently pronounced to ensure a high degree of accuracy for the readings obtained with the TEM-1.

    The electrical indicating accuracy of the TEM-1 is +/- 0.1% whilst the reproducibility is +/- 0.2% referred of the absolute readings on the meter dial


    line

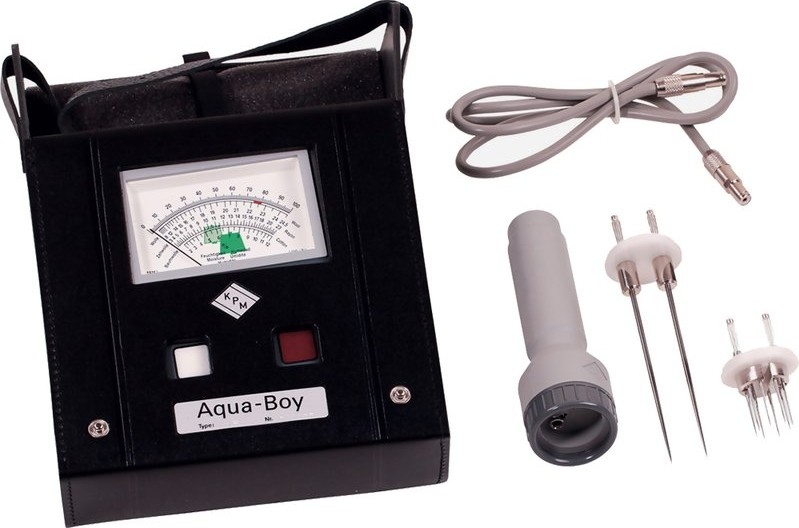

    Kit Contents
    line

    • Aqua-Boy TEM-1 Textile Moisture Meter
    • Electrode holder 204
    • Electrode holder 205
    • Electrode holder 207
    • Connecting cable 200
    • Carrying case


    line
    Features
    line

    • Multiple scale for direct readings for wool, rayon and cotton
    • Easy to use for many applications
    • Portable, battery-operated
    • 0 -100 scale for comparison tables used for other materials like Polyester, Polyamid and many material mixtures
    • High accuracy and repeatability


    line
    Specifications
    line

    Measuring RangeWool: 8 to 24.5% moisture content
    Rayon: 3 to 23% moisture content
    Cotton: 2 to 12% moisture content
    Comparison measurement: 0 - 100 scale
    Power9V battery
    Weight400 g
    Dimensions200 x 250 x 70 mm (L x W x H)


    line
    Electrodes
    line

    205
    • Needle electrode for yarns, cross-wound bobbins and hanks (needle length 25 mm)
    related

    line

    207
    • Needle electrode for yarns, cross-wound bobbins and hanks (needle length 100 mm)
    related

    line

    209
    • Stab electrode for textiles in sacks and rolls (needle length 325 mm)
    related

    line

    209 BSM
    • Cotton electrode, especially for measuring cotton and similar products in sacks or pressed bales;
    • piercing point: app 75 mm (total length app. 250 mm)
    related

    line

    210
    • Knife electrode for rolls or bales of textile fabric (knife length 110 mm)
    related

    line

    211
    • Roller electrode for running webs of textiles (roller 27 mm Ø)
    related

    line

    212
    • Continuous run electrode for yarn hanks and single filaments (roller 16 mm Ø)
    related

    line

    213
    • Surface electrode for fabrics (surface 23 mm Ø)
    related

    line

    299
    • Calibration electrode with a fixed calibration value
    related

    ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
    Models Price
    $1,695.00
    $1,807.00
    Recommended Accessories PRICE
    $198.00
    $531.00
    $115.00
    $128.00
    $128.00
    $128.00
    $115.00
    $263.00
    $263.00
    $195.00
    $168.00
    $168.00
    $135.00
    $450.00
    $90.00
    $144.00
    $150.00
