TMT-425 Digital Textile Moisture Meter

---

Measuring range: 0.3% to 26.0% moisture content

---

Stored Curves for: acetate, acrylic, hemp yarn, jute yarn, cotton, nylon, polyester, viscose, flax and wool

---

Non-destructive moisture measurement with temperature compensation

---

Measuring Range: 0.3 to 26.0% water content
Available with optional USB output

The Checkline TMT-425 Digital Textile Moisture Meter is the next generation of textile moisture meters. It determines the moisture content of textiles, natural materials, synthetics and yarn during the production process within seconds. The water content of textiles and yarns influences the elasticity and tensile strength directly.

This textile moisture tester has all textile curves stored inside and does not require any look up tables. Just select the appropriate moisture curve and start measuring. By this, maximum accuracy is guaranteed

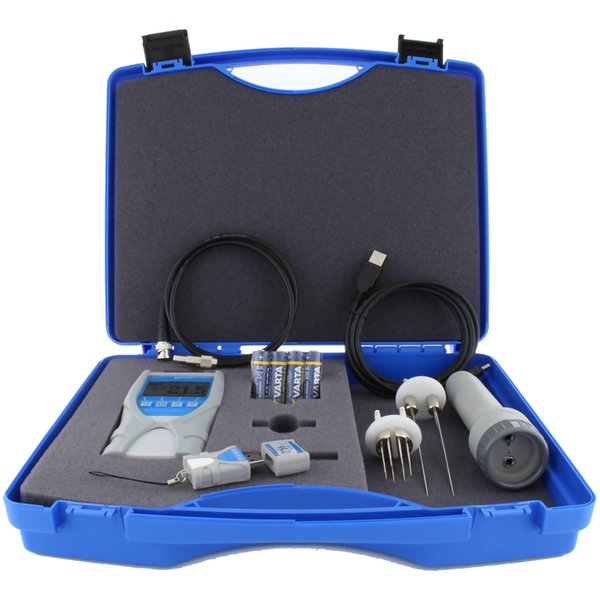

Kit Contents

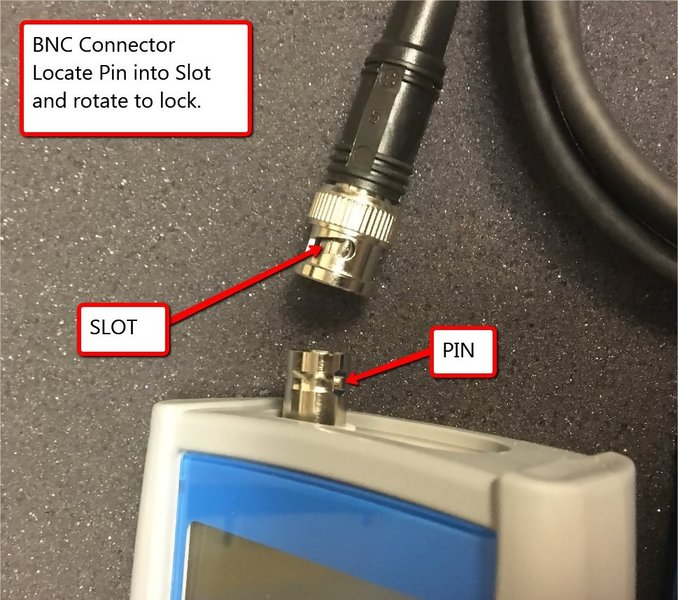

TMT-425 Textile Moisture Meter Connecting Cable TMT-425-CABLE Electrode Holder 204 Electrode 205 Electrode 207 Batteries Carrying Case

Features

• Wide measuring range of 0.3% to 26% moisture content
• Memory Enables quality control and documentation on location
• Many stored curves for determining humidity in textile, natural and synthetic fabrics and yarns
• Menu languages: German, English, French, Italian, Spanish and Russian
• Automatically calculates average measurement values
• No conversion tables needed!
• Automatic temperature compensation

Specifications

Measuring Range	0.3% to 26% moisture content
Resolution	0.1%
Measuring Technique	Electrical Resistance
Menu Languages	English, German, French, Italian, Spanish and Russian
Housing	Meter: Plastic with IP40 classification
Data Recording	10,000 measurements with date, batch and temperature
Display	Grafic LCD display with backlight (128 x 64 pixels)
Temperature	Automatically in °C or °F using a built-in temperature probe
Operating Temperature	0 °C to 40 °C
Storage Temperature	-20 °C to 60 °C

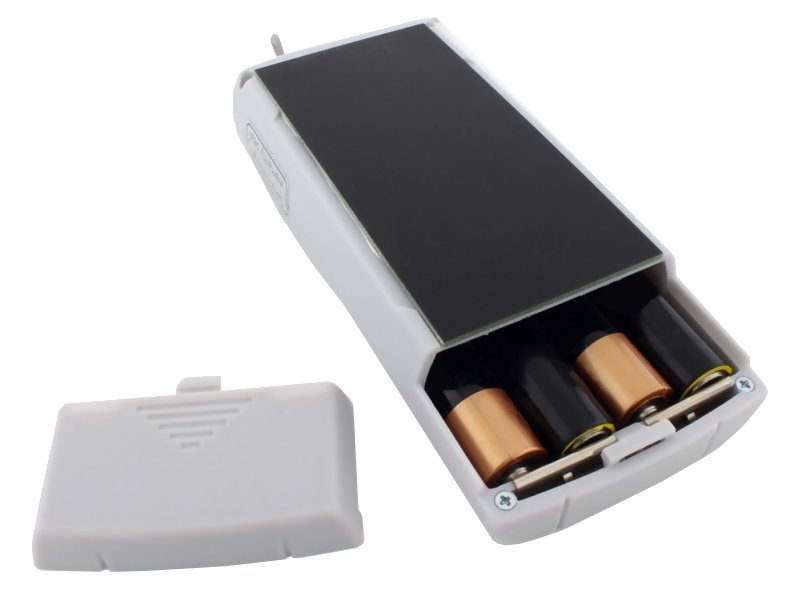

Power Supply	4 x 1.5 Volt AA Alkaline Batteries

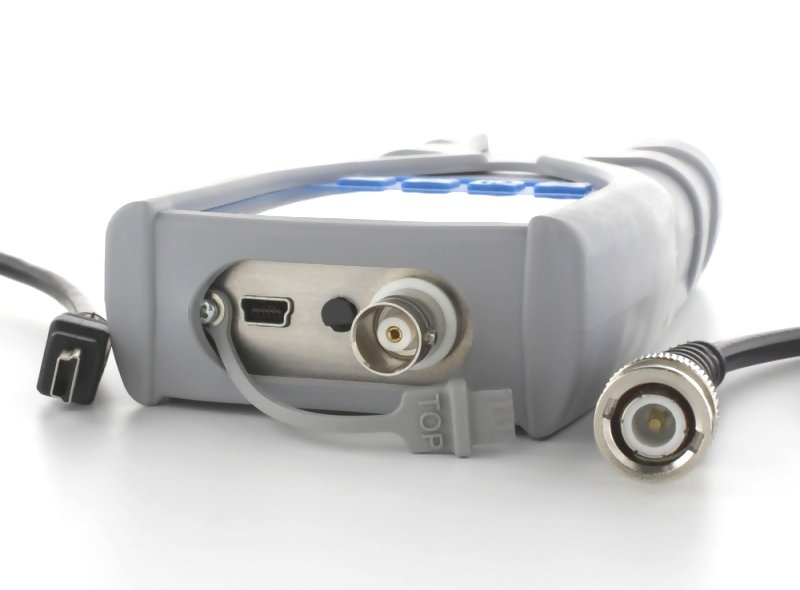

Data transfer (only for TMT-425-USB)	Via USB-port (supplied with USB cable and software)
Dimensions	740 x 65 x 40 mm
Weight	450 gr. including batteries
Warranty	2 years

Calibration Curves

Acetate Acrylic Hemp yarn Jute Yarn Cotton

Nylon Polyester Viscose Flax Wool

Electrodes

205 Needle electrode for yarns, cross-wound bobbins and hanks (needle length 25 mm)

207 Needle electrode for yarns, cross-wound bobbins and hanks (needle length 100 mm)

209 Stab electrode for textiles in sacks and rolls (needle length 325 mm)

209 BSM Cotton electrode, especially for measuring cotton and similar products in sacks or pressed bales; piercing point: app 75 mm (total length app. 250 mm)

210 Knife electrode for rolls or bales of textile fabric (knife length 110 mm)

211 Roller electrode for running webs of textiles (roller 27 mm Ø)

212 Continuous run electrode for yarn hanks and single filaments (roller 16 mm Ø)

213 Surface electrode for fabrics (surface 23 mm Ø)

299 Calibration electrode with a fixed calibration value
