    Product Description

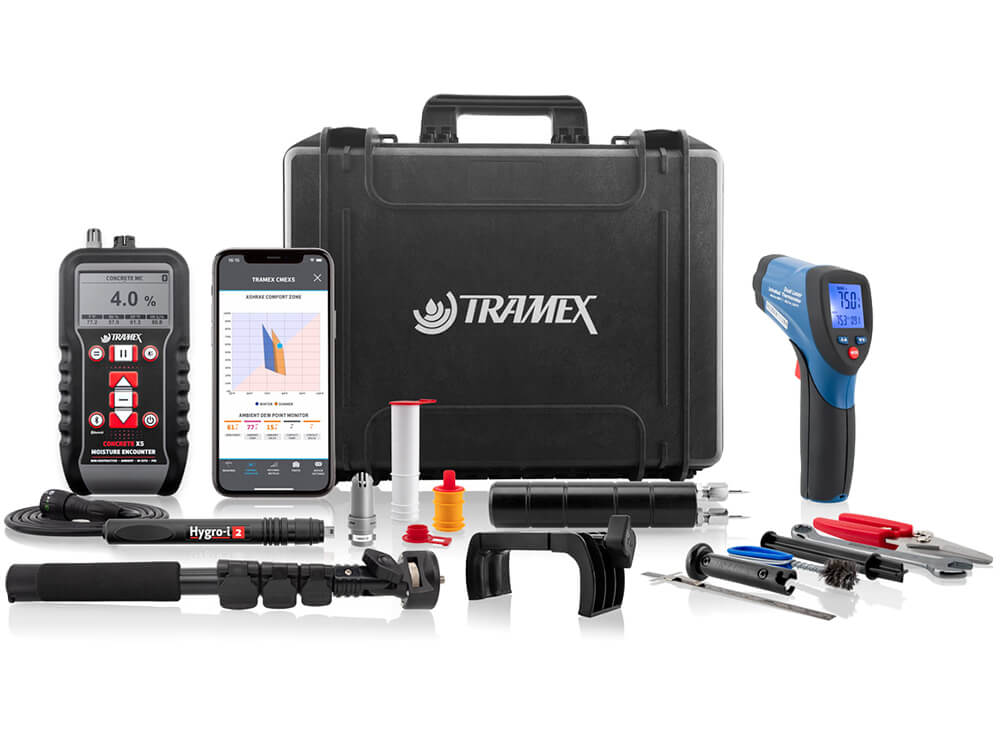

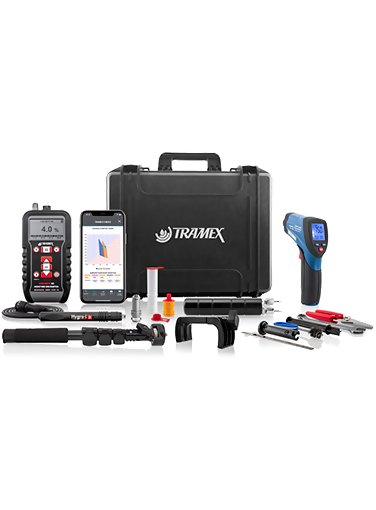

    Tramex FIK Flooring Inspector Kit
    Industry: Flooring Inspection, Flooring Installation.

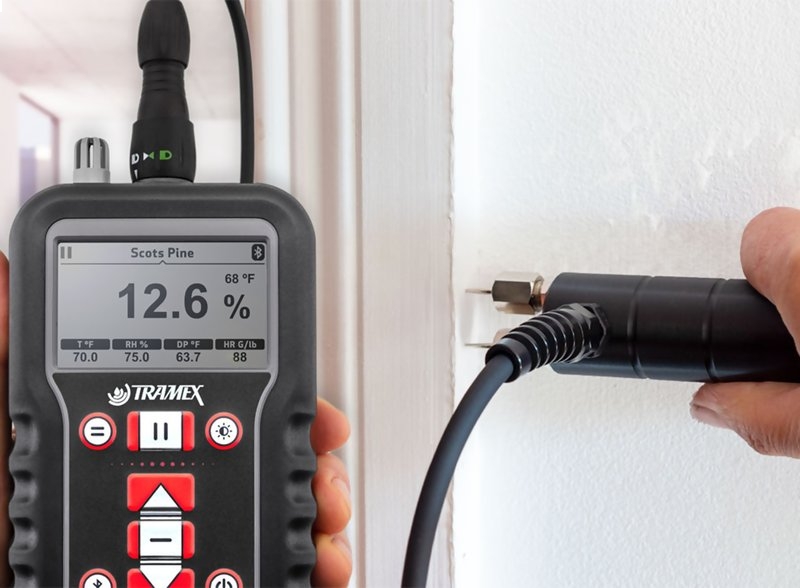

    The Tramex FIK Flooring Inspector Kit is the ultimate kit for pre & post-application moisture testing of concrete slabs, wood and various other floor covering materials. Featuring the Tramex Tramex CMEX5 Concrete Moisture Encounter X5 for non-destructive quantitative and comparative testing of concrete and ambient conditions. The Tramex Tramex CMEX5 Concrete Moisture Encounter X5 digital moisture meter allows for non-destructive quantitative testing of concrete using Gravimetric testing as a baseline and comparative testing per ASTM F2659. Plug-in reusable Tramex Tramex HIPP Hygro-i2 Relative Humidity Probe allow for performing ASTM F2170 for relative humidity readings in concrete slabs. The Tramex heavy-duty wood pin-probe measures the moisture content of wood. An infrared surface thermometer gives surface temperature and dew point conditions used in conjunction with the CMEX5 hygrometer. The Tramex Flooring Inspector Kit comes with an extension handle in a heavy duty Tramex travel case. Bluetooth connectivity to the Tramex Meters App allows for visualization of readings and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.

    Kit Contents

    Specifications

    Size17.1" x 14.2" x 5.5" (43.5cm x 36cm x 14cm)
    Weight8.6 lbs (3.9kg)
    Power2 x AA batteries, 1 x 9 volt PP3 battery

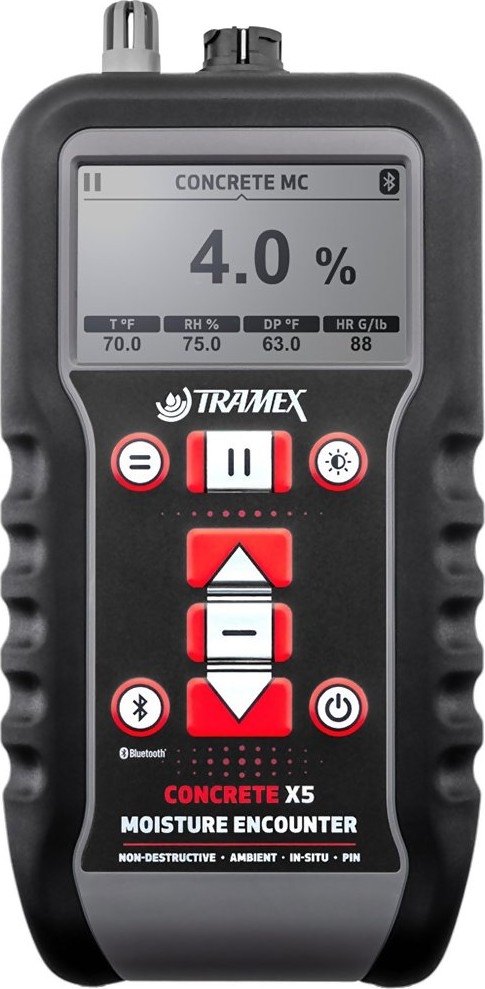

    Tramex CMEX5 Concrete Moisture Encounter X5

    Moisture content for Concrete0 → 6.9 %
    Comparative for Gypsum floor screed0 → 12
    CM Equiv Anhydrite/Concrete0→2.7 / 0→ 4.3
    Reference scale0 → 100
    Relative Humidity0 → 99% (with optional Hygro-i2 ® probe)
    Humidity accuracy0% → 99%RH ± 2% @ 25°C / 77°F
    Moisture content for wood5→ 30 % (with optional wood pin probes)
    ConstructionABS Body
    Power2 x AALR6 ALKALINE (included)
    DisplayDigital
    Depth of penetration in concreteapprox. ¾" (20mm)

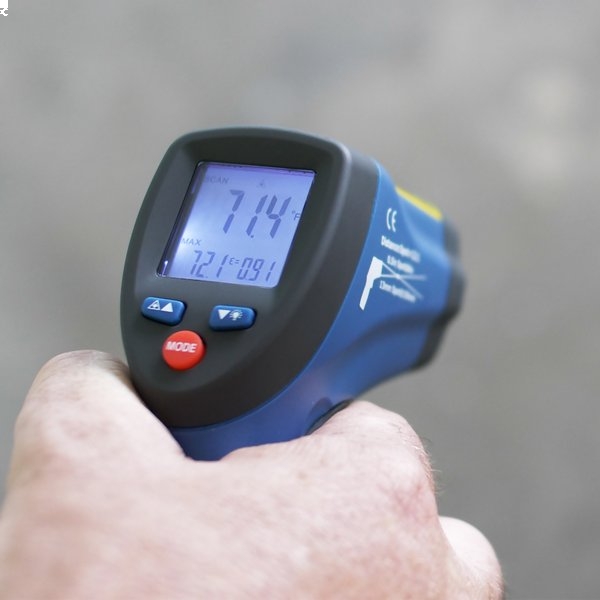

    Tramex IRT2 Infrared Surface Thermometer

    Temperature range

    		-58°F ~ 1202°F (-50 to 650 °C)
    Distance to Spot ratioD:S = 12:1
    Display resolution0.1 °F(0.1°C)   <1000 1°C   >1000

    Accuracy for targets

    Assumes ambient operating temperature of  73 to 77°F (23 to 25 °C) -58°F ~ 68°F (-50 ~ 20°C)  ±4.5°F (2.5°C) 68°F ~572°F (20°C ~300°C)  ±1.0% ± 1.8°F (1.0°C) 572°F ~ 1202°F (300°C ~650°C) ±1.5%

    Repeatability

    -58~68°F (-50~20°C)  :  ± 2.3°F (1.3°C) 68~1202°F (20~650°C) : ±0.5% or ±0.9°F (0.5°C)

    Response time

    150ms

    Spectral response

    8~14um

    Emissivity

    Digitally adjustable from 0.10 to 1.0

    Over range indication

    LCD will show "----"

    Polarity: Automatic (no indication for positive polarity)

    Minus (-) sign for negative polarity

    Diode laser output

    <1mW,Wavelength 630~670nm, Class 2 laser product

    Operating temp.

    32 to 122°F ( 0 to 50°C)

    Storage temp.

    14 to 140°F (–10 to 60°C)

    Relative humidity

    10%~90%RH operating, <80%RH storage

    Power supply

    9V battery, NEDA 1604A or IEC 6LR61, or equivalent

    Safety"CE" Comply with EMC

    Related Products

    Tramex CMEX5 Concrete Moisture Encounter X5

    • 4 Modes of Measurement
    • 8 Simple Membrane Keypad Controls
    • Display Digital
    related
    Click image for more info

    Tramex IRT2 Infrared Surface Thermometer

    • his hand held, infrared surface thermometer features a laser target pointer to gain instant readings on almost any surface from a distance.
    related
    Click image for more info

    Tramex Extension Handle for ME5, CME5 and CMEX5

    • The Extension Handle can be used with the ME5, CME5 and CMEX5 Moisture Meters. It is a useful accessory for measuring in out of reach, high places. It can also be used for taking readings on the floor and thus reduces the need for crouching or kneeling.
    • Order Code: E5-HBS
    related
    Click image for more info

    Tramex HIPP Hygro-i2 Relative Humidity Probe

    • Reusable Hygro-i2 ® Relative Humidity sensors prove to be the lowest cost per ASTM F2170 test
    		related

    Tramex CALCRH Calibration Check for CME5, CMEX5

    • The Tramex CALCRH is a calibration check plate used to easily verify if moisture meters yield proper moisture readings, or if or needs to be sent to a calibration lab.

    		related

    Tramex Accessory Pack for Concrete Moisture Encounter 5 and 5X

    • For use with CMEX5, CMEX2, MRH3 & PTM.
    • Order Code: HH14TP30 (For use with CMEX2, MRH3 and PTM)
    • Order Code: HH14TP30B (For use with CMEX5)
    		related

    Tramex SAL75 Calibration Salt Check

    • Calibration Salt Check for Tramex Hygro-i2 Relative Humidity Probe. The calibration salt check allows for regular calibration checks. Designed to produce a 75% RH environment within the chamber which may be used to ensure the calibration of the Hygro-i2®RH probe is optimum
    • Order Code: SAL75, for Tramex RHP-LW Long RH Probe, Tramex RHP-SW Relative Humidity Probes
    • Order Code: SAL75S, for Tramex RHP-NW Narrow Wand Relative Humidity Probe, Tramex RHP-SW Relative Humidity Probes
    • Order Code: SAL75N for Tramex RHP-NW Narrow Wand Relative Humidity Probe, Tramex RHP-SNW Short Narrow Wand Relative Humidity Probe
    • Order Code: SAL75-6 for Tramex Hygro-i2 Relative Humidity Probe for calibration checking of 6 probes at once.
    		related

    Tramex HA21SP52 Hammer-Action Pin-Type Electrode

    • Hammer-action pin-type electrode (With Cable And Pins) for use with CMEX5, MRH3.
    • Order Code: HA21SP52 (For use with MRH3)
    • Order Code: HA21SP52B (For use with CMEX5)
    		related

    Tramex SP200 Spare 7" Pins for Pin Probe HH14SP200

    • Heavy-Duty Electrode with Cable and 7" (200mm) Long Pins for use with CMEX5, MRH
    • Order Code: HH14SP200 For use with MRH3
    • Order Code: HH14SP200B For use with CMEX5
    		related

    Tramex CALCRH Calibration Check for CME5, CMEX5

    • Heavy-duty Pin-type Electrode with Cable and 3" pins for use with CMEX5, MRH3
    • Order Code: HH14SP90 For use with MRH3
    • Order Code: HH14SP90 For use with CMEX5
    		related

    Tramex ASTM F2170 Accessory Pack

    • Accessory Pack for RH testing
    • The AP-F2170-B for use with the: CMEX5 and DL-RHTX
    • The AP-F2170 for use with the: CMEX2 and MRH3
    		related

    Tramex Heavy-duty Pin-type Wood Probe with Cable and Pins

    • For use with CMEX5, CMEX2, MRH3 & PTM.
    • Order Code: HH14TP30 (For use with CMEX2, MRH3 and PTM)
    • Order Code: HH14TP30B (For use with CMEX5)
    		related
