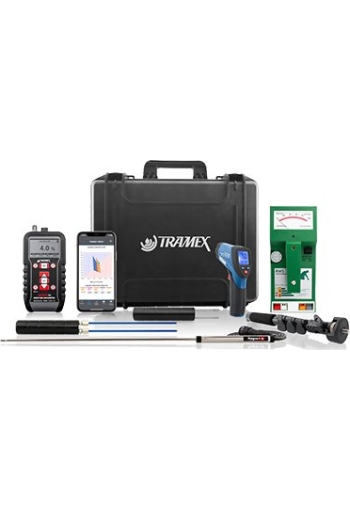

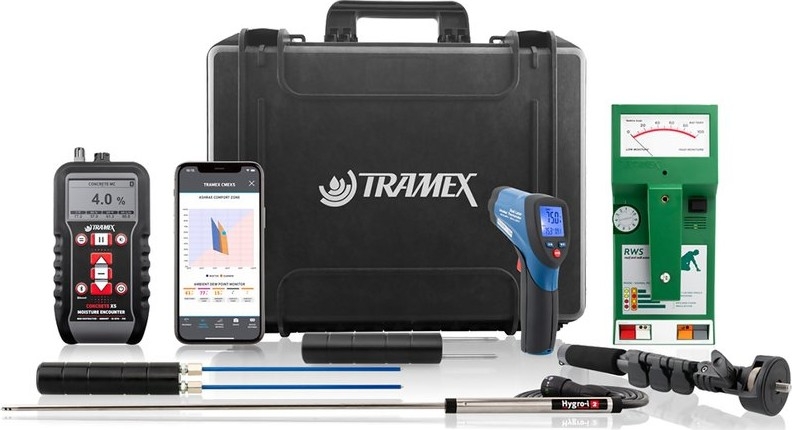

Tramex RIK Roofing Inspector Kit
Non-destructive checking of moisture conditions in roofing
The Tramex RIK Roofing Inspector Kit allows for point-of-contact, non-destructive checking of moisture conditions in roofing and waterproofing systems up to approximately 4 inches in depth with the Tramex RWS Roof Moisture Meter and Wet Wall Scanner. The kit also allows for non-destructive measurement of moisture conditions in concrete decks and pin readings in wood decks and roofing materials, relative humidity readings, and ambient and dew point conditions using the Tramex CMEX5 Concrete Moisture Encounter X5 and probes. An infrared surface thermometer gives surface temperature. The Roofing Inspector Kit comes with an extension handle in a protective heavy-duty carrying case with die-cut foam lining.
Kit Contents
Specifications
Kit:
Size | 19.2" x 14.9" x 5.7" (487mm x 380mm x 145mm) |
Weight | 9.9 lbs (4.51kg) |
Power | 2 x 9 volt PP3 Batteries, 2 x AALR6 ALKALINE (Included) |

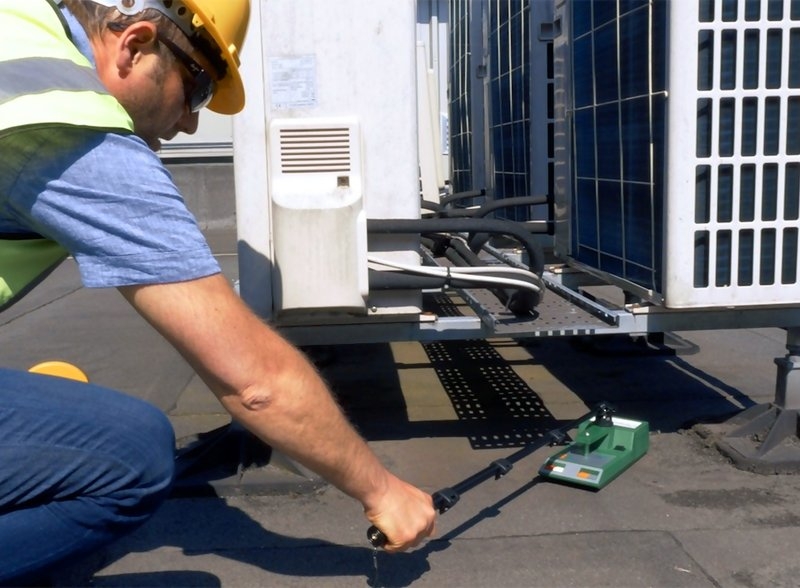

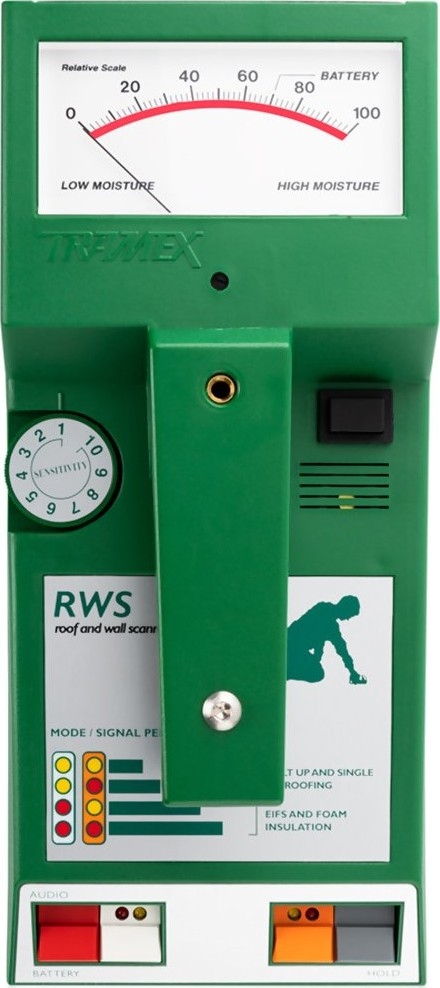

Tramex RWS Roof Moisture Meter and Wet Wall Scanner
Construction | ABS Body Power: 9 volt PP3 |
Battery | Included |
Display | Analog Depth of penetration: 4" (100mm) |
Sensitivity Four Ranges | Roofing Mode with high and low sensitivity. EIFS / Foam Roof Insulation Mode with high and low sensitivity |
Limitations | Some EPDM, Butyl rubber roofing and other conductive roofing. Hard Coat Stucco, wire lath or wire mesh reinforced finishes |

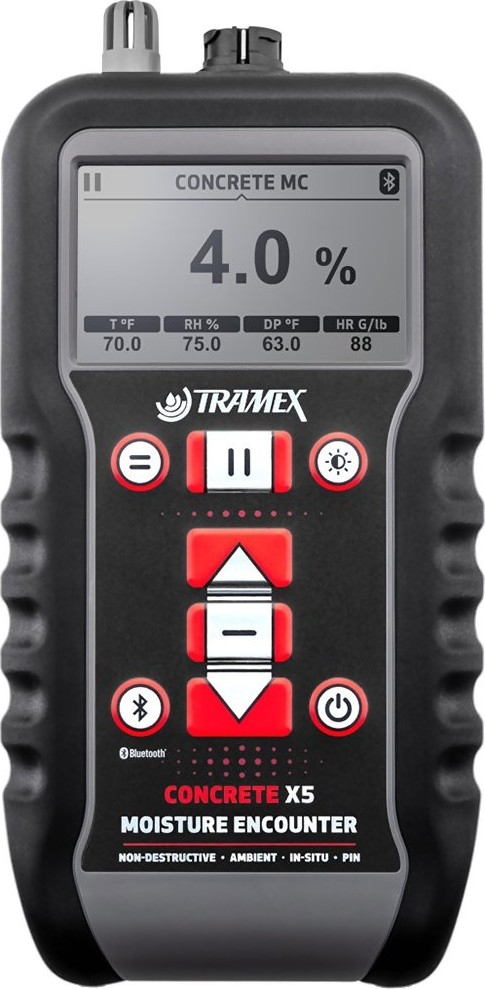

Tramex CMEX5 Concrete Moisture Encounter X5
Moisture content for Concrete | 0 → 6.9 % |
Comparative for Gypsum floor screed | 0 → 12 |
CM Equiv Anhydrite/Concrete | 0→2.7 / 0→ 4.3 |
Reference scale | 0 → 100 |

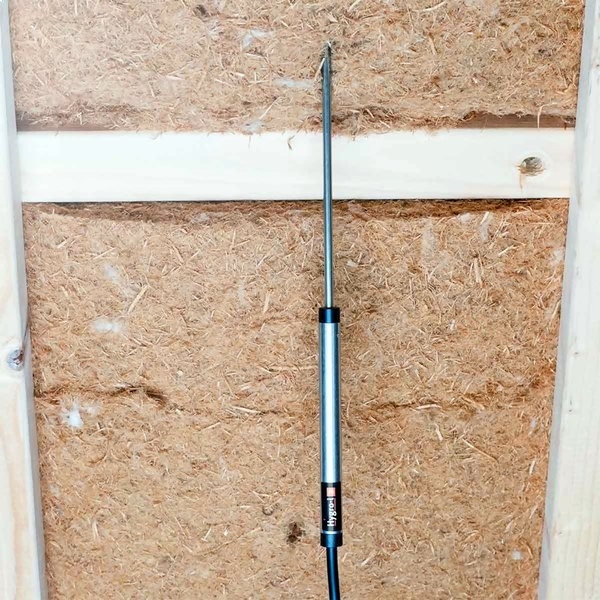

Relative Humidity | 0 → 99% (with optional Hygro-i2 ® probe) |
Humidity accuracy | 0% → 99%RH ± 2% @ 25°C / 77°F |

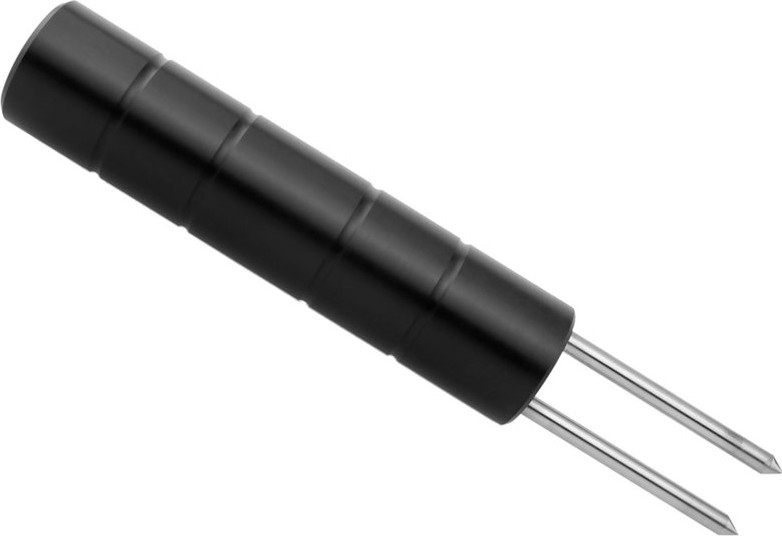

Moisture content for wood | 5→ 30 % (with optional wood pin probes) |
Construction | ABS Body |
Power | 2 x AALR6 ALKALINE (included) |
Display | Digital |
Depth of penetration in concrete | approx. ¾" (20mm) |

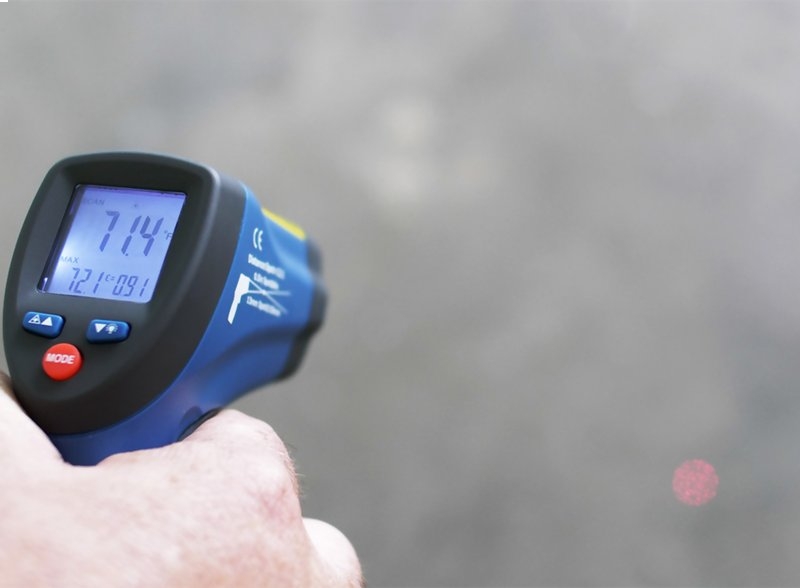

Tramex IRT2 Infrared Surface Thermometer
Temperature range | -58°F ~ 1202°F (-50 to 650 °C) |
Distance to Spot ratio | D:S = 12:1 |
Display resolution | 0.1 °F(0.1°C) <1000 1°C >1000 |
Accuracy for targets | Assumes ambient operating temperature of 73 to 77°F (23 to 25 °C) -58°F ~ 68°F (-50 ~ 20°C) ±4.5°F (2.5°C) 68°F ~572°F (20°C ~300°C) ±1.0% ± 1.8°F (1.0°C) 572°F ~ 1202°F (300°C ~650°C) ±1.5% |
Repeatability | -58~68°F (-50~20°C) : ± 2.3°F (1.3°C) 68~1202°F (20~650°C) : ±0.5% or ±0.9°F (0.5°C) |
Response time | 150ms |
Spectral response | 8~14um |
Emissivity | Digitally adjustable from 0.10 to 1.0 |
Over range indication | LCD will show "----" |
Polarity: Automatic (no indication for positive polarity) | Minus (-) sign for negative polarity |
Diode laser output | <1mW,Wavelength 630~670nm, Class 2 laser product |
Operating temp. | 32 to 122°F ( 0 to 50°C) |
Storage temp. | 14 to 140°F (-10 to 60°C) |
Relative humidity | 10%~90%RH operating, <80%RH storage |
Power supply | 9V battery, NEDA 1604A or IEC 6LR61, or equivalent |
Safety | "CE" Comply with EMC |
Related Products
Tramex Extension Handle for ME5, CME5 and CMEX5
- The Extension Handle can be used with the ME5, CME5 and CMEX5 Moisture Meters. It is a useful accessory for measuring in out of reach, high places. It can also be used for taking readings on the floor and thus reduces the need for crouching or kneeling.
- Order Code: E5-HBS
