Tramex RIK Roofing Inspector Kit
Non-destructive checking of moisture conditions in roofing

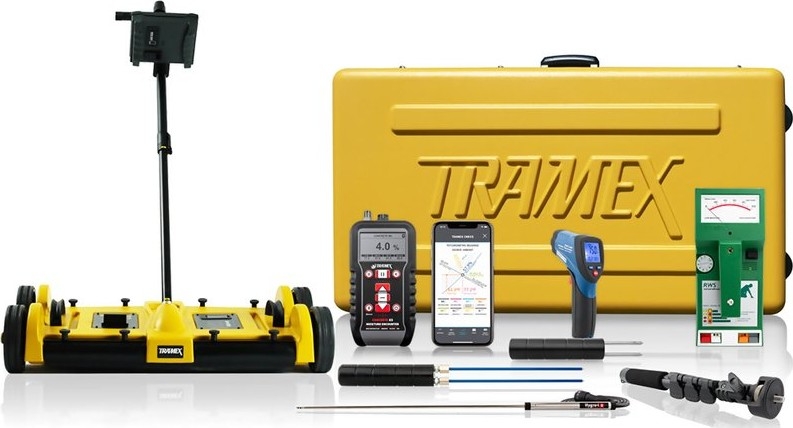

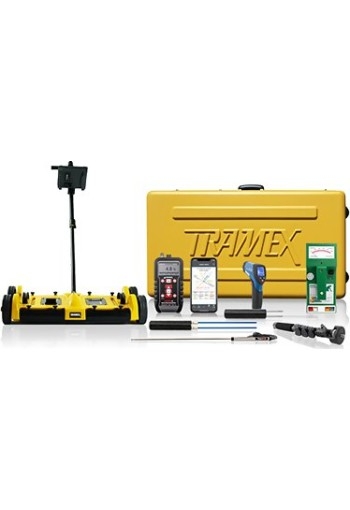

The Tramex RMK Roof Master Kit is a complete kit for the Roofing Professional, including the Dec Scanner and the Tramex RWS Roof Moisture Meter and Wet Wall Scanner allowing for continuous and point-of-contact, non-destructive surveying of moisture conditions in roofing and waterproofing systems up to 6 inches (152mm) in depth. The kit also allows for non-destructive measurement of moisture conditions in concrete decks and pin readings in wood decks and roofing materials, relative humidity readings, and ambient and dew point conditions using the Tramex CMEX5 Concrete Moisture Encounter X5 and probes. An infrared surface thermometer gives surface temperature. This kit comes in a protective heavy-duty wheeled carry case with die-cut foam lining. The Roof Master Kit is used to perform ASTM D7954.
Kit Contents
Specifications
Kit:
| Size | 41.2" x 21.1" x 12" (1045mm x 535mm x 305mm) |
| Weight | 59.5lbs (27kg) |
| Power | 4 x 9 volt PP3 Batteries, 2 x AALR6 ALKALINE Batteries (included) |

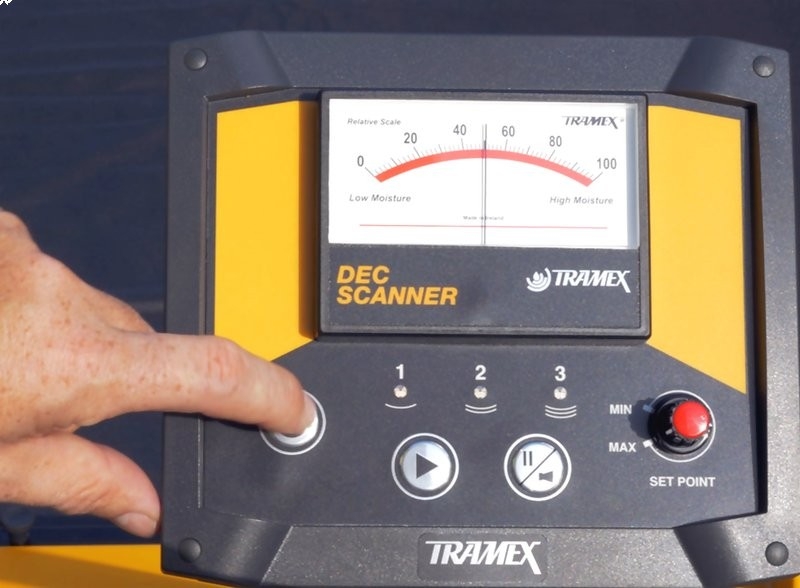

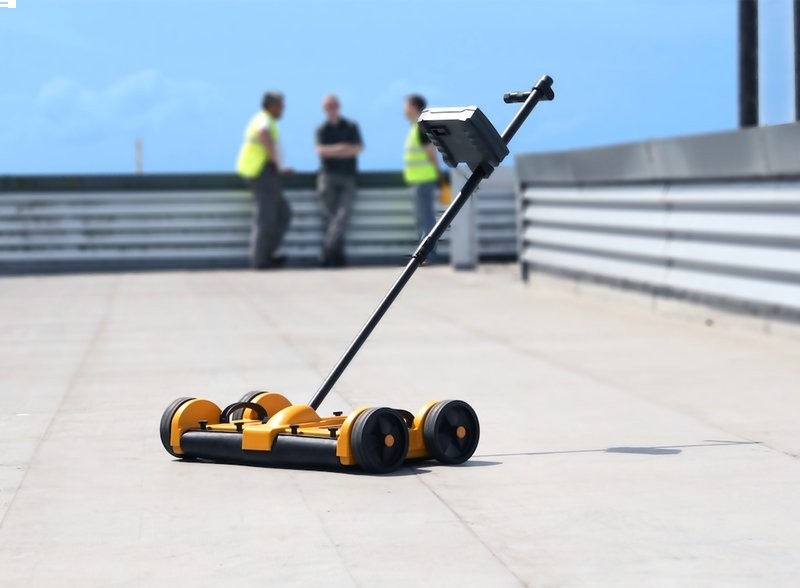

Tramex DSAL Dec Scanner Moisture Scanner for Roofing
| Size | 30”W x 15¾“D x 6¼”H (762 mm x 400 mm x 158 mm) |
| Scanning area | 24”W x 15.5”D (609 mm x 394mm) |
| Carry case | 38”W x 20”D x 12”H (940mm x 508 mm x 305mm) |
| Weight Dec Scanner | 24.6 lbs (9.95 Kg) |
| Weight Carry Case | 21.9 lbs (9.9 Kg) |
| Total Weight Dec Scanner in Carry Case | 46.5 lbs (21.1 Kg) |
| Outer packaging carton weight | 4.4 lbs (2 Kg) |
Total shipping weight | 51 lbs (23.1Kg) |
| Dimensional shipping weight | 66 lbs (30 Kg) |
| Display | Analog Measuring Range: 0 to 100 |
| Comparative Max. depth of penetration | 6” (152 mm) |
| Power Supply | 2 x 9 Volt PP3 Batteries (included) |
| Limitations | Some EPDM, Butyl rubber roofing and other conductive roofing |

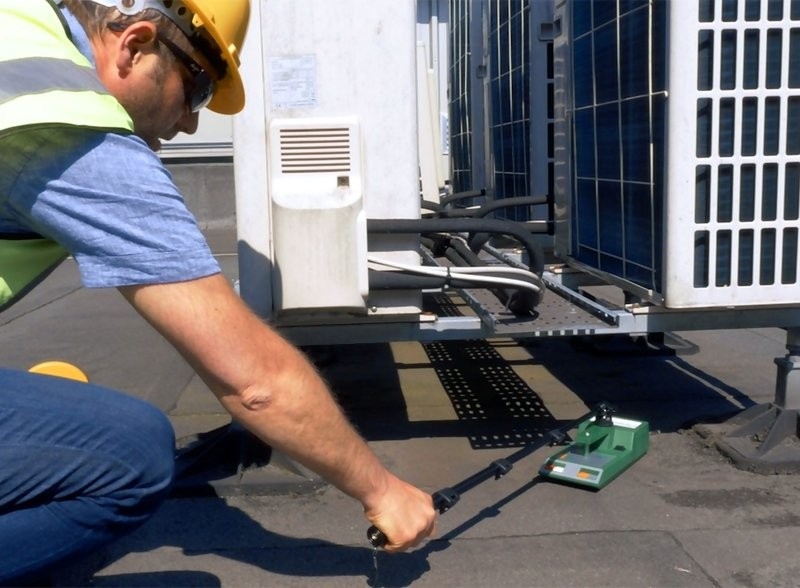

Tramex RWS Roof Moisture Meter and Wet Wall Scanner
| Construction | ABS Body Power: 9 volt PP3 |
| Battery | Included |
| Display | Analog Depth of penetration: 4" (100mm) |
| Sensitivity Four Ranges | Roofing Mode with high and low sensitivity. EIFS / Foam Roof Insulation Mode with high and low sensitivity |
| Limitations | Some EPDM, Butyl rubber roofing and other conductive roofing. Hard Coat Stucco, wire lath or wire mesh reinforced finishes |

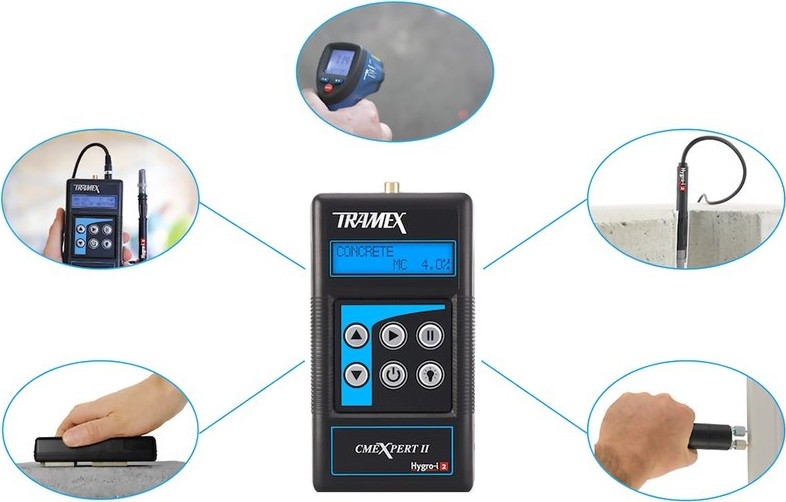

Tramex CMEX5 Concrete Moisture Encounter X5
| Moisture content for Concrete | 0 → 6.9 % |
| Comparative for Gypsum floor screed | 0 → 12 |
| CM Equiv Anhydrite/Concrete | 0→2.7 / 0→ 4.3 |
| Reference scale | 0 → 100 |
| Relative Humidity | 0 → 99% (with optional Hygro-i2 ® probe) |
| Humidity accuracy | 0% → 99%RH ± 2% @ 25°C / 77°F |
| Moisture content for wood | 5→ 30 % (with optional wood pin probes) |
| Construction | ABS Body |
| Power | 2 x AALR6 ALKALINE (included) |
| Display | Digital |
| Depth of penetration in concrete | approx. ¾" (20mm) |
Tramex IRT2 Infrared Surface Thermometer
Temperature range | -58°F ~ 1202°F (-50 to 650 °C) |
| Distance to Spot ratio | D:S = 12:1 |
| Display resolution | 0.1 °F(0.1°C) <1000 1°C >1000 |
Accuracy for targets | Assumes ambient operating temperature of 73 to 77°F (23 to 25 °C) -58°F ~ 68°F (-50 ~ 20°C) ±4.5°F (2.5°C) 68°F ~572°F (20°C ~300°C) ±1.0% ± 1.8°F (1.0°C) 572°F ~ 1202°F (300°C ~650°C) ±1.5% |
Repeatability | -58~68°F (-50~20°C) : ± 2.3°F (1.3°C) 68~1202°F (20~650°C) : ±0.5% or ±0.9°F (0.5°C) |
Response time | 150ms |
Spectral response | 8~14um |
Emissivity | Digitally adjustable from 0.10 to 1.0 |
Over range indication | LCD will show "----" |
Polarity: Automatic (no indication for positive polarity) | Minus (-) sign for negative polarity |
Diode laser output | <1mW,Wavelength 630~670nm, Class 2 laser product |
Operating temp. | 32 to 122°F ( 0 to 50°C) |
Storage temp. | 14 to 140°F (-10 to 60°C) |
Relative humidity | 10%~90%RH operating, <80%RH storage |
Power supply | 9V battery, NEDA 1604A or IEC 6LR61, or equivalent |
| Safety | "CE" Comply with EMC |
