Mountz 020440 EMT12-F EMT 12 Adjustable Torque Screwdriver 1/4" F/Hex Drive, Range 2-12 lbf.in - Gedore 060120

See More Torque Screwdrivers

Mountz 020440 EMT12-F EMT 12 Adjustable Torque Screwdriver 1/4" F/Hex Drive, Range 2-12 lbf.in - Gedore 060120

See More Torque Screwdrivers
Price:
$562.62
    warrenty

    Product Description

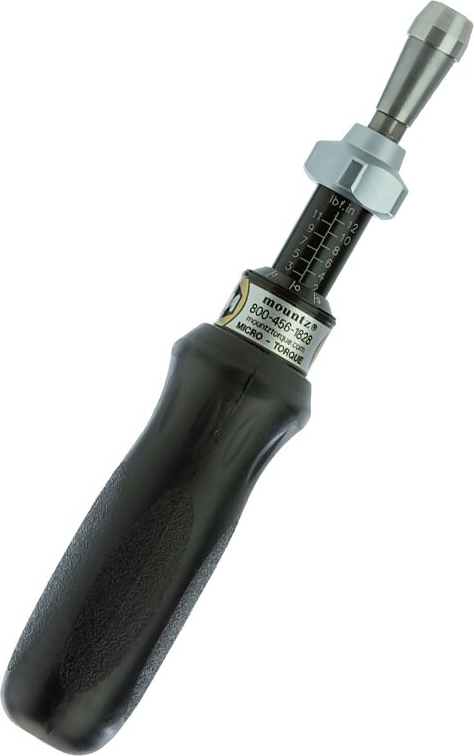

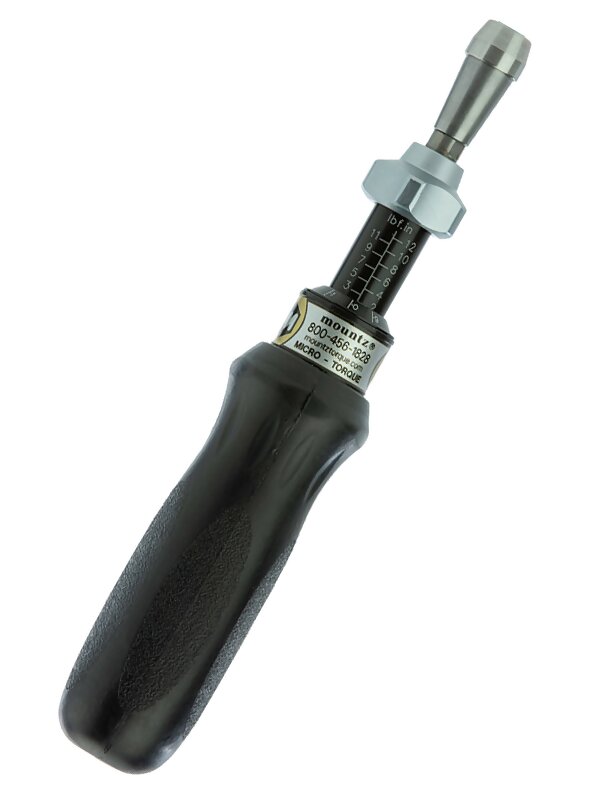

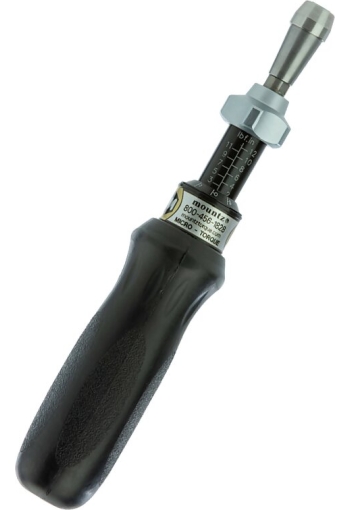

    Mountz Gedore EMT Adjustable Torque Screwdriver - Ergo Quickset Adjustable
    Torque Limiting Screwdriver for Production
    The bi-directional cam “slips free” once the set torque has been reached making over-tightening impossible.
    Micrometer adjustment allows for accurate tool setting.

    The Mountz Gedore Ergo Micro Torque (EMT) Screwdriver is designed to apply a set amount of torque. A bi-directional cam “slips free” once the set torque has been reached making over-tightening impossible


    line
    Features
    line

    • The preferred and certified ranges of these tools is in accordance with the requirements if ISO 6789:2003 (+/- 6% of setting).
    • Adjustment ring disengages to prevent incidental torque adjustment.
    • Precision radial ball clutch and cam allows for automatic resetting.
    • The “positive” locking system prevents incidental torque adjustment.
    • Ergonomic rubber hand grip.
    • Micrometer adjustment allows for accurate tool setting.
    • Color coded adjustment ring allow for differentiation of models.
    • ESD compliant (IEC 61340-5-1: 1998)
    • Removable T-bar on larger models provides extra leverage.

    Note - does not affect torque setting accuracy.


    line
    Force Ranges
    line

    ModelRangeGraduationDrive
    EMT60-M10 - 60 ozf.in1 ozf.in1/4” M/Sq. Dr.
    EMT60-F10 - 60 ozf.in1 ozf.in1/4” F/Hex Dr.
    EMT160-M20 - 160 ozf.in1 ozf.in1/4” M/Sq. Dr.
    EMT160-F20 - 160 ozf.in1 ozf.in1/4” F/Hex Dr.
    EMT4-M0.5 - 4 lbf.in0.1 lbf.in1/4” M/Sq. Dr.
    EMT4-F0.5 - 4 lbf.in0.1 lbf.in1/4” F/Hex Dr.
    EMT12-M2 - 12 lbf.in0.1 lbf.in1/4” M/Sq. Dr.
    EMT12-F2 - 12 lbf.in0.1 lbf.in1/4” F/Hex Dr.
    EMT50-M*10 - 50 lbf.in1 lbf.in1/4” M/Sq. Dr.
    EMT50-F*10 - 50 lbf.in1 lbf.in1/4” F/Hex Dr.
    EMT80-M*30 - 80 lbf.in1 lbf.in1/4” M/Sq. Dr.
    EMT80-F*30 - 80 lbf.in1 lbf.in1/4” F/Hex Dr.
    EMT40-M5 - 40 cN.m1 cN.m1/4” M/Sq. Dr.
    EMT40-F5 - 40 cN.m1 cN.m1/4” F/Hex Dr.
    EMT120-M20 - 120 cN.m1 cN.m1/4” M/Sq. Dr.
    EMT120-F20 - 120 cN.m1 cN.m1/4” F/Hex Dr.
    EMT6-M*1 - 6 N.m0.1 N.m1/4” M/Sq. Dr.
    EMT6-F*1 - 6 N.m0.1 N.m1/4” F/Hex Dr.
    EMT9-M*4 - 9 N.m0.1 N.m1/4” M/Sq. Dr.
    EMT9-F*4 - 9 N.m0.1 N.m1/4” F/Hex Dr.

    * Supplied with Sliding T-Bar


    line
    Downloads
    line

    Mountz EMT Adjustable Torque Screwdriver - Instruction Manual
