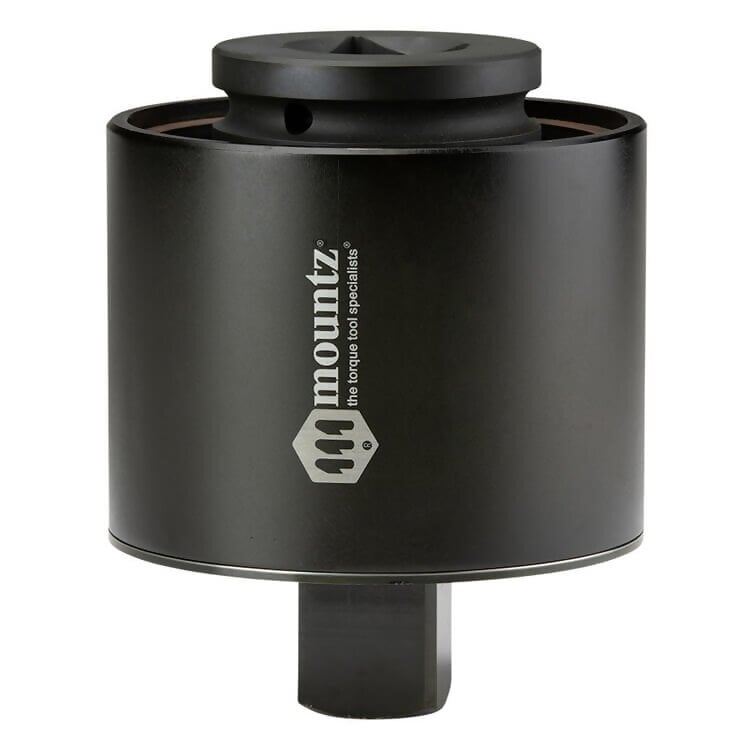

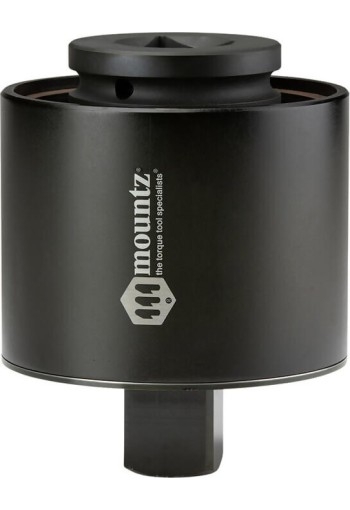

Mountz RDA Run Down Adapters for Torque Testers
The Mountz run down adapter (RDA) is designed to provide consistent and reliable torque readings for use with power driven torque control tools.
Available in capacities up to 5000 Lb-ft / 6780 Nm
Mountz RDA Run Down Adapters for Torque Testers are designed to provide consistent and reliable torque readings when testing power driven torque control tools. RDA’sreduce the impact and irregular peaks that cause poor repeatability. Each Mountz RDA has an effective torque range and will provide repeatable torque data within that range if used correctly. The run down adapter is mounted in-line between the tool drive and transducer.
Features
- Designed to provide consistent and reliable torque readings for use with power driven torque control tools.
- Adapter is mounted in-line between tool drive and transducer.
- Hardened thread components, increase accuracy and life.
- Square drives conform to ASME B107 standards for proper fit.
- Non-rotating body for improved safety.
- Compact size and lightweight.
- Operates in clockwise direction only. After each run down, the RDA should be completely backed-up
Torque Ranges
| Model | Capacity* | Square Drive (M/F) |
| RDA-10i | 10 Lb-in / 113 N-cm | 1/4" |
| RDA-25i | 25 Lb-in / 282 N-cm | 1/4" |
| RDA-50i | 50 Lb-in / 5.6 Nm | 1/4" |
| RDA-100i | 100 Lb-in / 11 Nm | 1/4" |
| RDA-250i | 250 Lb-in / 28 Nm | 1/4" |
| RDA-750i | 750 Lb-in / 85 Nm | 3/8" |
| RDA-50F | 50 lb-ft / 68 Nm | 3/8" |
| RDA-100F | 100 Lb-ft / 135 Nm | 1/2" |
| RDA-250F | 250 Lb-ft / 340 Nm | 1/2" |
| RDA-500F | 500 Lb-ft / 677 Nm | 3/4" |
| RDA-1000F | 1000 Lb-ft / 1355 Nm | 1" |
| RDA-2500F | 2500 Lb-ft / 3390 Nm | 1 1/2" |
| RDA-5000F | 5000 Lb-ft / 6780 Nm | 1 1/2" |
