Product Description

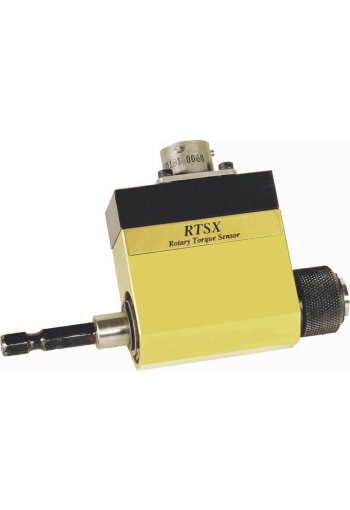

Mountz RTSX Rotary Torque Transducer
Rotary Torque Transducer - Mountz
Various models that range from 1 Lb-in to 1500 Lb-ft.
For use with most hand tools, power tools or rotational measurement applications

The Mountz RTSX Rotary Torque Transducer is for use with most hand tools, power tools or rotational measurement applications. The Mountz RTSX connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener. Features an instant auto-recognition system of the RTSX connected to the PTT & LTT.

Specifications

Output at Rated Capacity > 6 Nm [53 lbf.in] rated torque 2 mV/V
InterchanegeabilityMatched for mv/v and shunt calibration +0.3% FS
Nonlinearity+0.2% FS
Excitation Recommended10V DC or AC RMS
Bridge Resistance350 ohms
Usable Temperature Range41-122 degrees F
Safe Overload125% of rated output

Torque Ranges

ModelRangeInput
Drive		Output
Drive
RTSX10i-H1 - 10 Lb-in1/4" M/Hex1/4" F/Hex
RTSX10i1 - 10 Lb-in1/4" F/Sq1/4" M/Sq
RTSX50i-H5 - 50 lbf.in1/4" M/Hex1/4" F/Hex
RTSX50i5 - 50 lbf.in1/4" F/Sq1/4" M/Sq
RTSX100i-H10 - 100 Lb-in1/4" M/Hex1/4" F/Hex
RTSX100i10 - 100 Lb-in1/4" F/Sq1/4" M/Sq
RTSX200i-H20 - 200 Lb-in1/4" M/Hex1/4" F/Hex
RTSX200i20 - 200 Lb-in3/8" F/Sq3/8" M/Sq
RTSX50F5 - 50 Lb-ft3/8" F/Sq3/8" M/Sq
RTSX100F10 -100 Lb-ft1/2" F/Sq1/2" M/Sq
RTSX400F40 -400 Lb-ft3/4" F/Sq3/4" M/Sq
RTSX738F74 - 738 Lb-ft1" F/Sq1" M/Sq
RTSX1500F150 - 1500 Lb-ft1 1/2" F/Sq1 1/2" M/Sq
