    Product Description

    Measuring amplifier unit for field installation

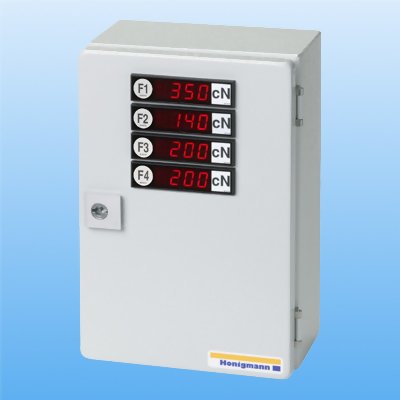

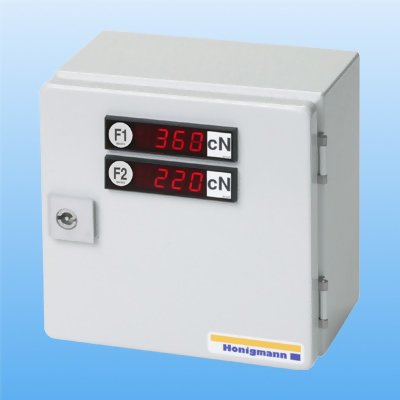

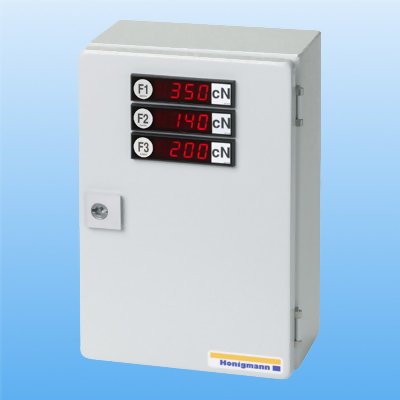

    MU621 Tension Indicator/Amplifier Console


    line
    Features
    line

    • for strain gauge sensors
    • 1 to 4 measuring channels

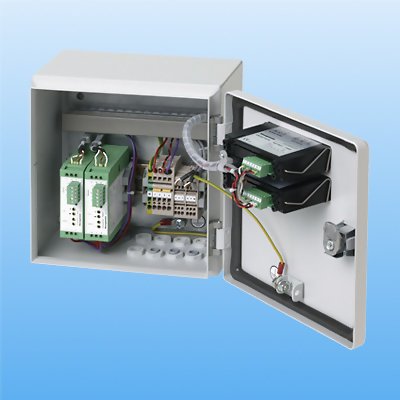

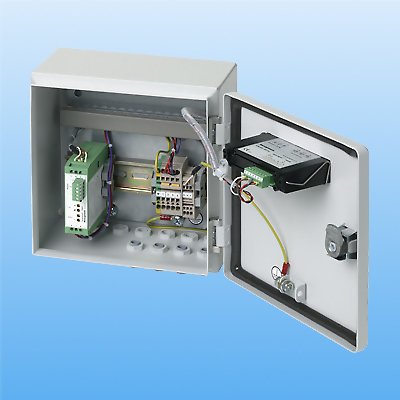

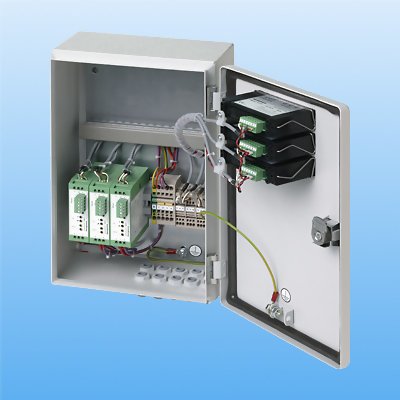

    • includes TS621 Amplifier and DPM502 Indicator
    • scalable to all engineering units
    • requires 24V DC power
    • rugged industrial design in steel plate-housing


    line
    Specifications
    line

    Display Range0– 1999 (calibrated for any units)
    Display3 1 /2 - digit Red LED, 14.4mm high
    Decimal PointUser-selected via internal jumper
    Power Supply24 VDC @ 100mA
    Analog Output4–20 mA or 0–10 VDC, user selected
    Frequency Response1 Hz (with damping filter)
    40 Hz (without damping filter)
    Enclosure MaterialHigh-Impact Plastic
    Dimensions3.78" W x 1.89" H x 4.04" D
    (96 x 48 x 103mm)
    Panel Cutout92 x 44mm
    Operating Temperature32 to 122° F (0–50° C)
    Relay OperationHi–Hi/Hi or Hi–Lo
    Relay Rating1 Amp @ 250 VAC/ 30 VDC, normally open
    Power Required115/ 230 VAC + 10%, 50/ 60 Hz
