Name: Mountz MZ-TA Torque Wheel and Torque Segment Arm
Brand: Mountz
SKU: 1326

Mountz MZ-TA Torque Wheel and Torque Segment Arm

See More Torque Calibration Equipment

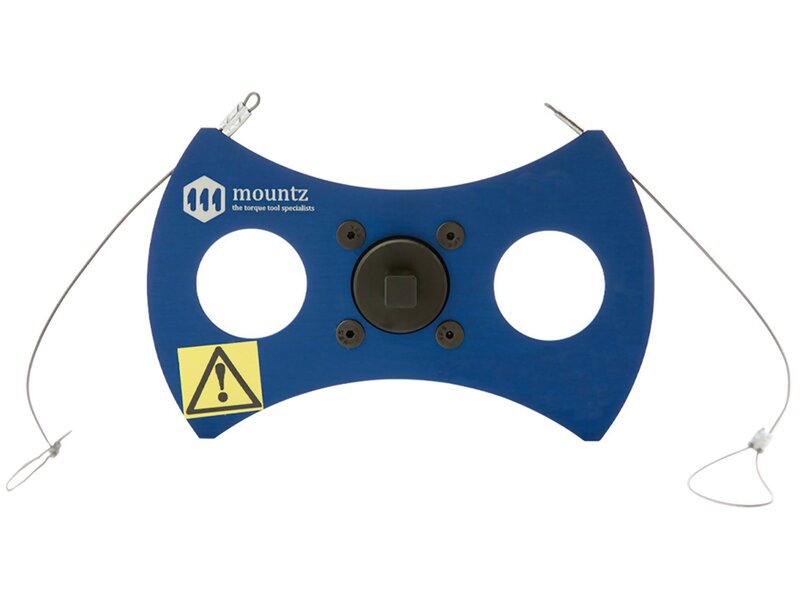

Mountz MZ-TA Torque Wheel and Torque Segment Arm

Calibrate your torque testers in house with our Torque Wheels and Segment Arms

Calibrate your torque testers in house with our Mountz MZ-TA Torque Wheel and Torque Segment Arm. We offer precision arms for calibrating sensors from 50 oz-in to 1000 lb-ft.

line
Ranges
line

Model	Length (Inches)	Max Weight	Max Torque	Tolerance	Input Drive (Square)
069980	1	50 oz	50 oz-in	+/- .001"	1/4 Inch

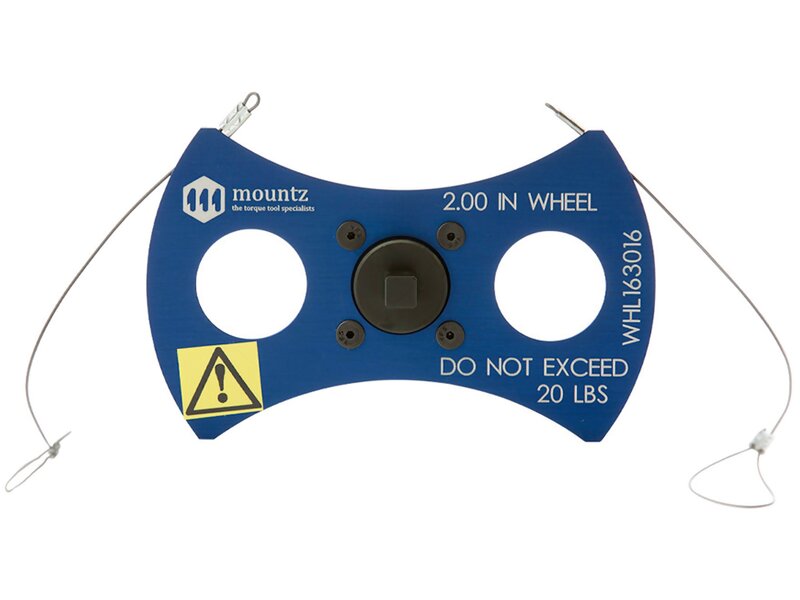

060095	2	20 lbs	40 lb-in	+/- .001"	1/4 and 3/8 Inch
060064	4	65 lbs	260 lb-in	+/- .002"	1/4 and 3/8 Inch
061106	10	25 lbs	250 lb-in	+/- .005"	1/4 Inch
060094	10	75 lbs	750 lb-in / 62 lb-ft	+/- .005"	3/8 Inch
060056	10	100 lbs	1000 lb-in / 83 lb-ft	+/- .005"	1/2 Inch
060052	12	75 lbs	900 lb-in / 75 lb-ft	+/- .006"	3/8 Inch
060093	12	100 lbs	1200 lb-in / 100 lb-ft	+/- .006"	1/2 Inch
060091	24	125 lbs	250 lb-ft Capacity	+/- .012"	1/2 Inch
060053	24	250 lbs	500 lb-ft Capacity	+/- .012"	3/4 Inch
060090	48	125 lbs	500 lb-ft Capacity	+/- .024"	3/4 Inch
060054	48	250 lbs	1000 lb-ft Capacity	+/- .024"	1 Inch

line
Related Products
line

MTM
Multi-Range Torque Tester

- Available with 2, 3 or 4 torque transducers
- LED Indicator Shows Active Transducer

line

TT-CA
Torque Arms, Calibration Arms, Torque Wheels, Calibration Wheel

line

TT-QC
Torque Tool Tester - AWS-QC

Bidirectional accuracy of ± 1% of indicated reading

line

MZ-TA
Torque Wheel and Torque Segment Arm

Supplied with calibration certificate

line

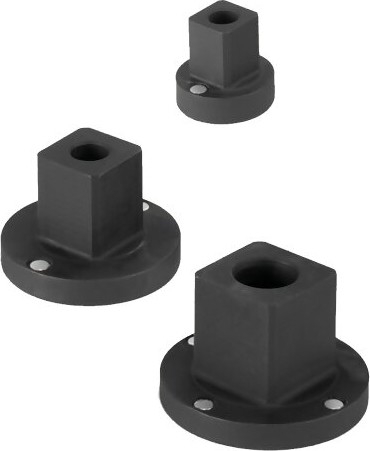

TT-DA
Torque Drive Adapters

Custom drives available, inquire

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Mountz 060064 4" MZ-TA Calibration Wheel, 260 lb-in Capacity, 1/4 and 3/8 Sq Drives View Model Details

$2,145.00

Mountz 061106 10" MZ-TACalibration Arm, 250 lb-in Capacity, 1/4 Sq Drive View Model Details

$11,550.00

Mountz 060094 10" MZ-TA Calibration Arm, 750 lb-in / 62 lb-ft Capacity, 3/8 Sq Drive View Model Details

$11,660.00

Mountz 060056 10" MZ-TA Calibration Arm, 1000 lb-in / 83 lb-ft Capacity, 1/2 Sq Drive View Model Details

$11,825.00

Mountz 060052 12" MZ-TA Calibration Arm, 900 lb-in / 75 lb-ft Capacity, 3/8 Sq Drive View Model Details

$13,173.00

Mountz 060093 12" MZ-TA Calibration Arm, 1200 lb-in / 100 lb-ft Capacity, 1/2 Sq Drive View Model Details

$13,448.00

Mountz 060091 24" MZ-TA Calibration Arm, 250 lb-ft Capacity, 1/2 Sq Drive View Model Details

$13,448.00

Mountz 060053 24" MZ-TA Calibration Arm, 500 lb-ft Capacity, 3/4 Sq Drive View Model Details

$13,558.00

Mountz 060090 48" MZ-TA Calibration Arm, 500 lb-ft Capacity, 3/4 Sq Drive View Model Details

$24,750.00

Mountz 060054 48" MZ-TA Calibration Arm, 1000 lb-ft Capacity, 1 Sq Drive View Model Details

$25,905.00

Mountz 069980 1" MZ-TA Calibration Wheel, 50 oz-in Capacity, 1/4 Sq Drive View Model Details

Discontinued

Mountz 060095 2" MZ-TA Calibration Wheel, 40 lb-in Capacity, 1/4 and 3/8 Sq Drives View Model Details

Discontinued
