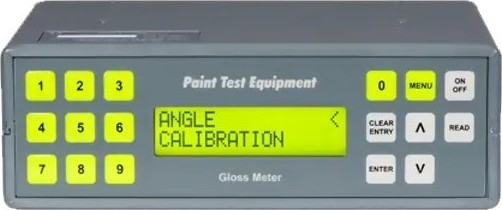

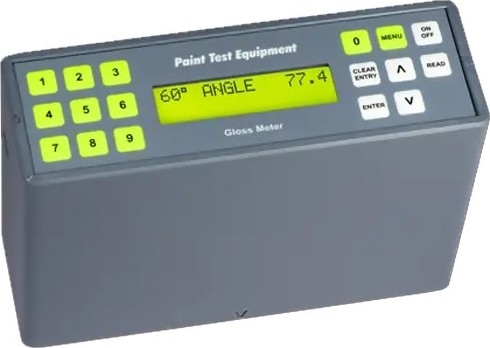

Gloss Meter
The Paint Test Equipment Gloss Meter is essential where an aesthetic appearance of the coating finish is required and to ensure uniformity of the surface finish.
Available model: 20°/60°.
The Paint Test Equipment Gloss Meter uses superior tungsten halogen lamp technology to create a light source that has a true human photo-optic ISO Standard performance. Optical bench accuracy is obtained by the optics being mounted in a precision-engineered aluminium block.
Available in models of Standard and Top. All functions are easily accessible through a menu-driven back-lit display. Standard Models have Calibration, Statistics and limits functions. Top Models have all the functions of the Standard Model plus Batching and Download.

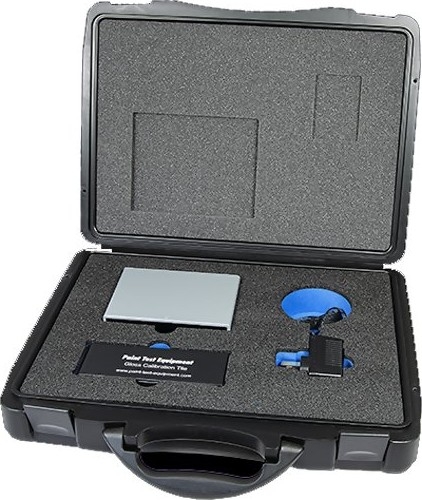

Supplied in an industrial Carrying Case with Gloss Tile and Charger. Top Models are supplied with and Download Software and Cable. Calibration Certificates with traceability to BAM are an optional extra.
Specifications
Standard Model| Calibration | Calibrate on the supplied Gloss Tile or any other value Gloss Tile |
| Statistcs | Shows Mean, Number of Readings, Max/Min, Coefficient of Variation and Standard Deviation |
| Limits | Pass and fail with audible and visual alarm |
| Top Model | All the functions of the Standard Model plus the following: |
| Batching | Store measurements into batches with batch number, job number and Date / Time |
| Download | Download measurements into Microsoft Word or Excel |
| Compliant | ISO 2813 |
| Measurement accuracy | ±1% |
