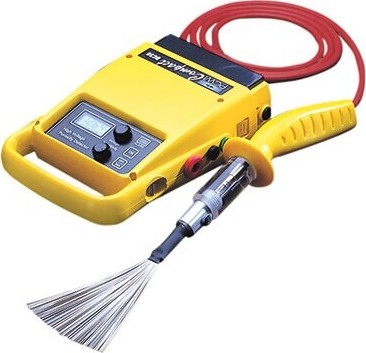

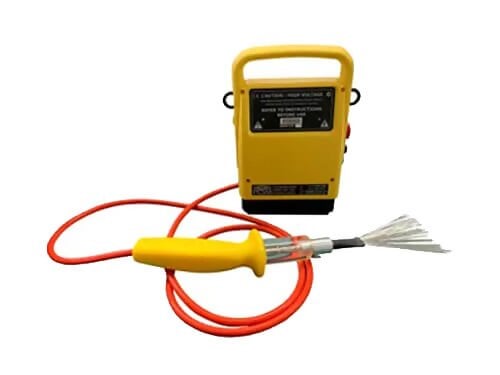

PCWI Compact DC High Voltage Holiday Detector DC15 & DC30

See More PCWI Holiday Detectors
Price:
$2,725.00 - $3,061.00
  • Hassle Free 30-Day Returns
  • Availability: In Stock Usually ships within 1-2 business days
  • FREE - Standard Ground 3-5 Business Days View Faster Delivery Options
warrenty

Product Description

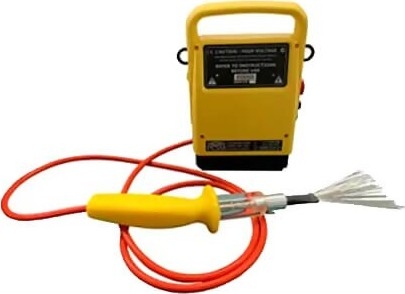

PCWI Compact DC High Voltage Holiday Porosity Detectors
Measuring Ranges:
Model DC15: 0 to 15,000 Volts (DC15IND or DC15PIPE)
Model DC30: 0 to 30,000 Volts (DC30IND or DC30PIPE)

Porosity detectors, also known as holiday detectors, spark testers, porosimeters or jeepers, are used to ensure the longevity of coating systems by locating pin holes, air bubbles and porosity.

PCWI Compact DC High Voltage Holiday Porosity Detectors are popular with coating inspectors because our unique, lightweight design makes surveying large surfaces quicker and easier. Unlike other holiday detectors on the market, the PCWI DC Holiday Detector can be operated one-handed using the shoulder or waist harness included in each kit. The unit is housed in a fully portable ABS case and supplied with a rechargeable battery pack in a clip-on style that allows you to easily substitute a spare battery, thereby reducing downtime.

The DC15 High Voltage Holiday Porosity Detector delivers stabilized DC output of up to 15kV and is suitable for use on thinner internal and external coatings from 150um to 3.5mm, whereas the DC30 Porosity Detector delivers stabilized DC output of up to 30kV and is suitable for use on thinner internal and external coatings from 150um to 13mm. Possible applications include tanks, valves or pipelines. Both audible and visual alarms will alert when a fault is found.

PCWI High Voltage Holiday Porosity Detectors are designed for long term performance in the field. To facilitate this, we stock a range of accessories for increased flexibility and replacement parts to extend the life of your detector. We recommend the purchase of a PCWI DC Crest Meter, which provides on-site calibration to ensure accurate output voltage and allow for adjustment if necessary.

Conforms to ASTM G62-87 (1998), NACE RP0274-98, NACE RP0490-2001, NACE RP0188-99, ASTM D4787-93 (1999), JIS G-3491, JIS G-3492, ANSI/AWWA C214-89, ANSI/AWWA C213-94, ISO 2746:1998 & AS3894.1-2002


line

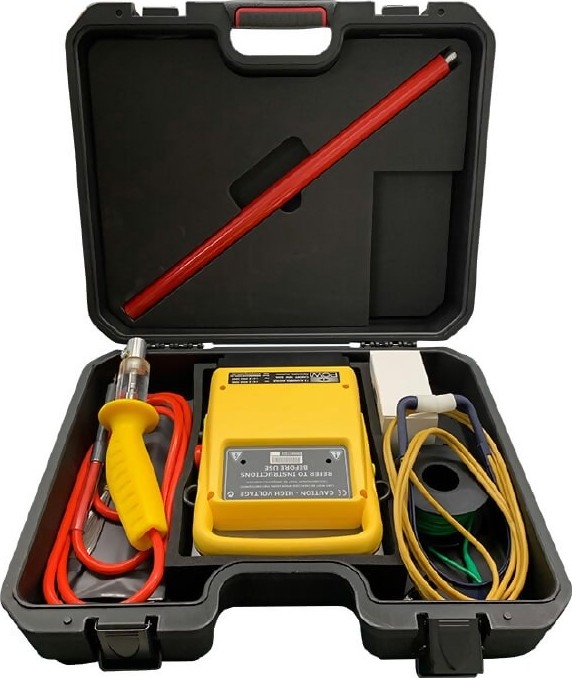

Kit Contents
line

PCWI Compact DC High Voltage Holiday Detectors are available in two kit options, allowing you to select the kit that best suits your requirements.

Industrial Kit:

  • Detector with Clip-on Battery
  • Universal Charger
  • Probe Handle with Neon and 2m Lead
  • 60mm Connector for Flat Brushes
  • 7m Earth Lead with Clamp
  • Fan Brush
  • 250mm Flat Brass Wire Brush
  • 450mm Probe Extension
  • Air-Operated Earphones
  • Shoulder & Waist Harness
  • Kit Case
  • Operating Instructions
  • Manufacturers Certificate

line

Pipeline Kit:

  • Detector with Clip-on Battery
  • Spare Clip-on Battery & Terminal Protector
  • Coil Joiner
  • Universal Charger
  • Probe Handle with Neon and 2m Lead
  • 60mm Connector for Flat Brushes
  • 7m Earth Lead with Clamp
  • Fan Brush
  • 450mm Connector
  • Air-Operated Earphones
  • Shoulder & Waist Harness
  • Kit Case
  • Operating Instructions
  • Manufacturers Certificate


line
Features
line

  • Lightweight with ABS Case
  • Momentary On Switch allows Auto Shut-off
  • Digital Display of Applied Voltage with integral Battery Condition indicator
  • Regulated DC Voltage
  • Voltage Ranges of 0-15kV or 0-30kV, Fully Adjustable
  • Clip-On Battery Pack
  • Constant Test Current
  • Sensitivity Control
  • Overcharge Protection
  • Earphones for Noisy Environments


line
Specifications
line

ModelDC15DC30
Voltage Display0 to 15kV0 to 30kV
Alarm Range500V to 15kV500V to 30kV
Resolution10V
Accuracy±5% of reading or ±50.0V below 1.0kV
Short CircuitTest Current 0.5mA Max
Power SupplyLiFePO4 Clip-on
Operating Temperature0°C to 60°C
AlarmAudible and Visual
DisplayLCD 3¾ Digits
Probe Handle2m High-Voltage Silicon-Rubber lead
Dimensions260 x 160 x 70mm
Unit Weight845g without Battery | 1.45kg with Battery


line
Applications
line

Used for detection of Coating Porosity (Pin-holes, or Holidays) in dielectric (insulation type) coatings on conductive substrates, including Concrete. Suitable for Production Pipeline Coating operations, Tank-Work and Structures. Ideal for use on Storage Tanks, Valves and Pipelines.

Housed in a fully portable ABS case, the Detectors deliver stabilized DC output of up to 30kV. Constant Current source maintains applied test voltage. Full test current at low voltages (where it is needed most) when testing at low film builds (eg: 150μm - as per AS3894.1).

Incorporating momentary-on and continuous-on switches (mounted on the front panel), allowing the units to be switched on momentarily for safety, or run continuously.

No need to swap probes to change voltage - the Detectors have Clip-on Battery Packs that must be separately charged. Fully recharged in 4 hours. Regulated DC output Fully Adjustable. Applied voltage and battery condition are continuously shown on the Liquid Crystal Display.


line

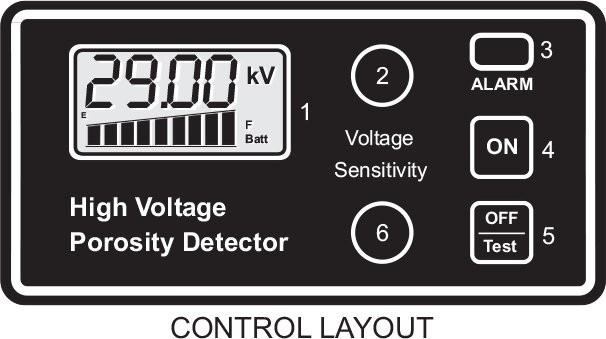

Controls
line

  1. LCD display (including battery condition 12 indicator)
  2. Voltage control (10 turn)
  3. Visual alarm indicates when fault is found
  4. On switch
  5. Off/test switch
  6. Sensitivity control for the alarm
  1. Audible alarm when fault is found
  2. High Voltage probe connector
  3. Fuse (1.6A slow blow) 5 x 20mm
  4. Earth connection point
  5. Slide-off power pack
  6. Earphone jack (opposite side)


line

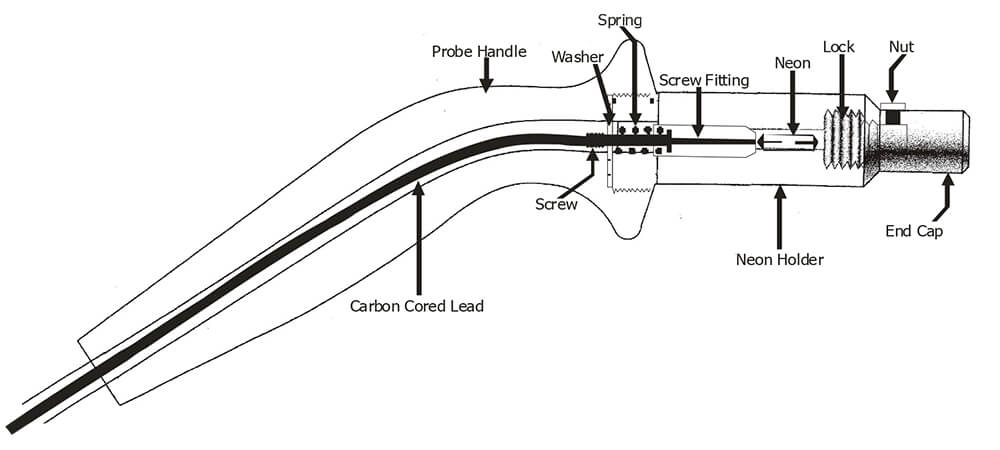

Probe Handle Diagram
line


line
Ordering Information
line

Part NumberDescription Part NumberDescription
DC15INDCompact DC15IND Industrial KitDC30INDCompact DC30IND Industrial Kit
DC15PIPECompact DC15PIPE Pipeline KitDC30PIPECompact DC30PIPE Pipeline Kit
