PCWI Compact Pulse High Voltage Holiday Detectors P20 and P40

See More PCWI Holiday Detectors

PCWI Compact Pulse High Voltage Holiday Detectors P20 and P40

See More PCWI Holiday Detectors
Price:
$3,061.00 - $3,190.00
warrenty

Product Description

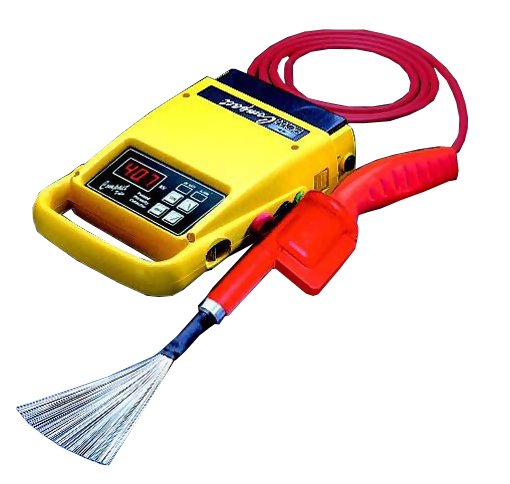

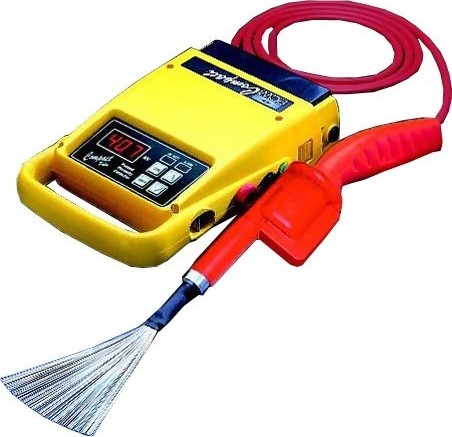

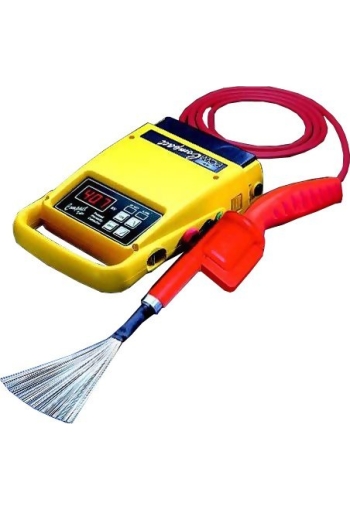

PCWI Compact Pulse High Voltage Holiday Porosity Detectors
Measuring Ranges:
Model P20: 2,000 to 20,000 Volts (P20IND or P20PIPE)
Model P40: 5,000 to 40,000 Volts (P40IND or P40PIPE)
Resolution: 100 Volts

Conforms to ASTM G62-87 (1998), NACE RP0274-98, NACE RP0490-2001, NACE RP0188-99, ASTM D4787-93 (1999), JIS G-3491, JIS G-3492, ANSI/AWWA C214-89, ANSI/AWWA C213-94, ISO 2746:1998 & AS3894.1-2002

The PCWI Compact Pulse High Voltage Porosity Detector is fully adjustable, has regulated pulsed output up to 20kV, 40kV or 50kV. All pulse models can be used for porosity and holiday testing of carbon impregnated coatings such as carbonated rubber, thick coatings such as rubber linings and on ‘plastic’/fibreglass type coatings likely to become electrostatically charged


line

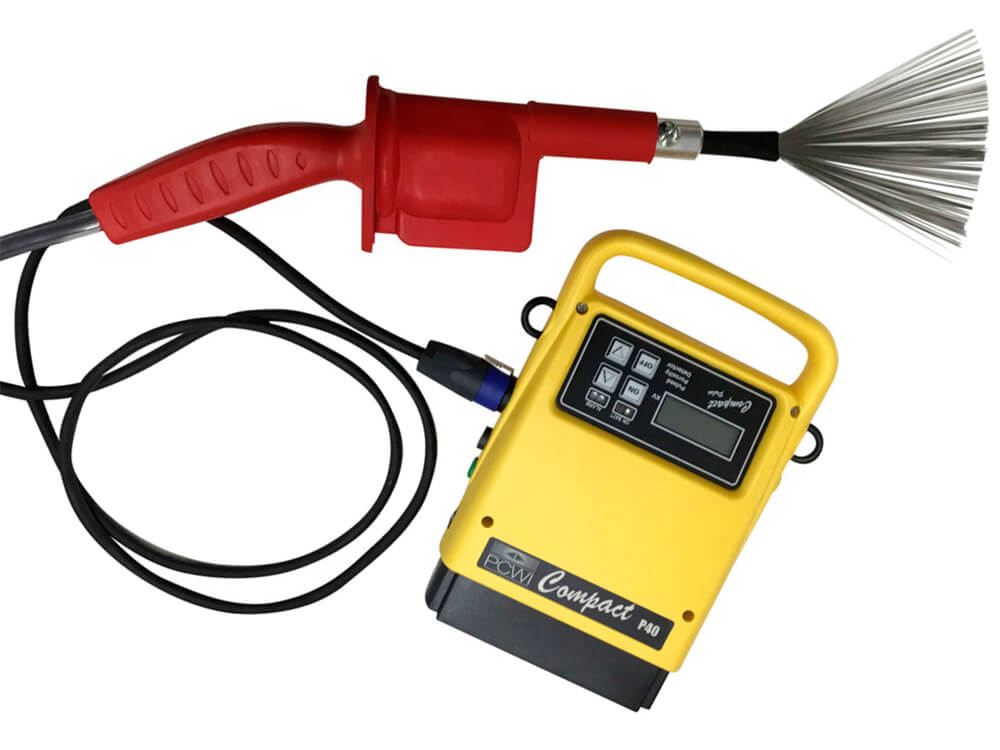

Kit Contents
line

PCWI Compact DC High Voltage Holiday Detectors are available in two kit options, allowing you to select the kit that best suits your requirements.

Pipeline Kit includes:

  • PCWI Compact Pulse Holiday Detectors
  • Clip-on power pack
  • 10-hour charger
  • spare clip-on battery pack
  • 10-hour charger
  • probe handle with 79" (2m) long cable
  • 22 (7m) long ground cable with clamp
  • fan brush
  • coil joiner with 18" (450mm) long probe extension
  • air-operated earphones
  • shoulder and waist harness
  • carrying case
  • operation instructions
  • conformance certificate

lineIndustrial Kit includes:

  • PCWI Compact Pulse Holiday Detectors
  • Clip-on power pack
  • 10-hour charger
  • spare battery pack (P50 model only)
  • probe handle with 79" (2m) long cable
  • 2.4" (60mm) connector for flat brush electrodes
  • 22 (7m) long ground cable with clamp
  • fan brush
  • 10" (250mm) wide flat brass wire brush
  • 18" (450mm) long probe extension
  • air-operated earphones
  • shoulder and waist harness
  • carrying case
  • operation instructions
  • conformance certificate


line
Features
line

  • Light weight ABS case
  • LED digital display of applied voltage
  • The P20 and the P40 holiday detectors are available in industrial and pipeline kits. The P60 is available only in an industrial kit.
  • Voltage ranges of 500 to 20kV or 40kV and 10kV to 50kV, fully adjustable
  • Clip-on battery pack
  • Constant test current
  • Wet or dry condition sensitivity control on P20 and P40 porosity detectors
  • Overcharge protection
  • Single power supply
  • Low battery condition indicator
  • Earphones for noisy environments
  • The Pulse 50kV model is the only portable battery operated model on the market capable of generating voltages from 10,000 to 50,000 volts. The P50 was designed for use with Rubber Coatings. It is not for use on Pipelines

Applications

Used for detection of coating porosity (pinholes or holidays) in dielectric (insulation type) coatings on conductive substrates, including concrete.

Regulated pulsed output is fully adjustable. Ideal for use:

  • In moist conditions
  • On wet coating surfaces
  • On contaminated coating surfaces
  • On carbon-impregnated coatings, i.e. carbonated rubber
  • On "plastic/fiberglass type coatings likely to become electrostatically charged
  • Coating thickness range: 6 to 1000 mils (150 to 25,000µm) with the P40 holiday detector (and even thicker coatings with the P60)


line
Specifications
line

ModelP20P40
Unit Weight4.8 lbs (2.2 kg)4.8 lbs (2.2 kg)
Packed Weight13.2 lbs (6.0 kg)13.2 lbs (6.0 kg)
DisplayLEDLED
Voltage1 to 20kV5 to 40kV
Resolution100V100V
Alarm Range2 to 20kV5 to 40kV
Short Circuit Test Current1.5 mA max.
Power SupplyGell Cell 3Ah Clip-On
Dimensions10.25" x 6.3" x 2.8" (260 x 160 x 70 mm)
AlarmAudible
Probe HandleRubber Lead
Battery ConditionLED Indicator


line
Applications
line

Used for detection of Coating Porosity (Pin-holes, or Holidays) in dielectric (insulation type) coatings on conductive substrates, including Concrete. Suitable for Production Pipeline Coating operations, Tank-Work and Structures. Ideal for use on Storage Tanks, Valves and Pipelines.

Housed in a fully portable ABS case, the Detectors deliver stabilized DC output of up to 30kV. Constant Current source maintains applied test voltage. Full test current at low voltages (where it is needed most) when testing at low film builds (eg: 150μm - as per AS3894.1).

Incorporating momentary-on and continuous-on switches (mounted on the front panel), allowing the units to be switched on momentarily for safety, or run continuously.

No need to swap probes to change voltage - the Detectors have Clip-on Battery Packs that must be separately charged. Fully recharged in 4 hours. Regulated DC output Fully Adjustable. Applied voltage and battery condition are continuously shown on the Liquid Crystal Display.


line
Related Products
line

High Voltage DC Crest Meter

  • High Voltage Direct Current Crest Meter, Jeep Meter or Volt Meter
  • Measuring Range: 0 to 30,000 Volts
  • For verifying output voltage and the calibration of Direct Current type Porosity and Holiday Detectors
related

line

Flat Brush Electrodes

  • Flat (Straight) Brush Electrodes for Porosity Holiday Detectors
  • Straight Flat Brass Brush Electrodes
  • Available in diameters of 2" (50mm) to 24" (600mm)
related

line

Circular Pipeline Coils

  • Full Circle Spring Electrodes
  • Available in diameters of 2" (50mm) to 56" (1420mm)
related

line

Circular Internal Brush Electrodes

  • Internal Circular Brush Electrodes for Porosity Holiday Detectors
  • Internal Pipeline Disk & Spiral Wound Brushes
  • Available in diameters of 2" (50mm) to 20" (508mm)
related


line
Downloads
line

PCWI Compact Pulse High Voltage Holiday Detectors - Data Sheet
