Name: PCWI High Voltage Pulse Crest Meter
Brand: PCWI
SKU: 16

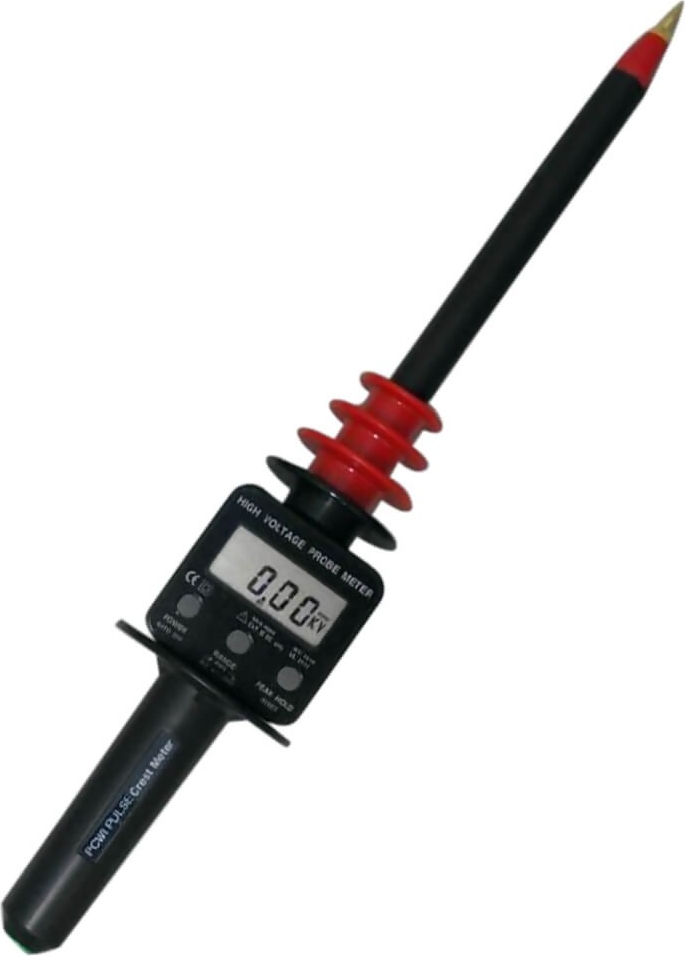

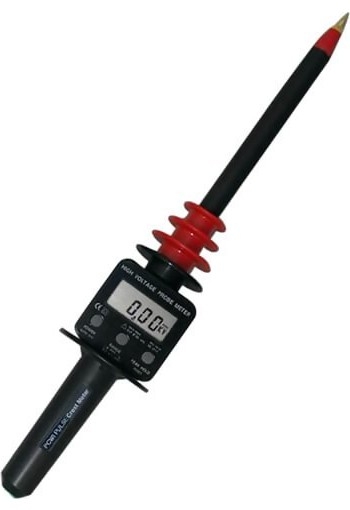

PCWI High Voltage Pulse Crest Meter

See More PCWI Holiday Detectors

PCWI High Voltage Pulse Crest Meter, Jeep Meter or Voltmeter

Calibration Reference Device for the Compact range of Porosity Detectors

Can be used in accordance with ASTM G62, ASTM D5162, ASTM D4787, NACE RP0274, NACE SP0490, NACE SP0188, ANSI/AWWA C213, ANSI/AWWA C214, ISO 2746

New Part. No. PULSECREST - Old Part No. 0150

Measuring Range: 5 to 30kV

The PCWI PULSECREST High Voltage Pulse Crest Meter is used to verify output voltage and the calibration of Direct Current type Porosity and Holiday Detectors.

line

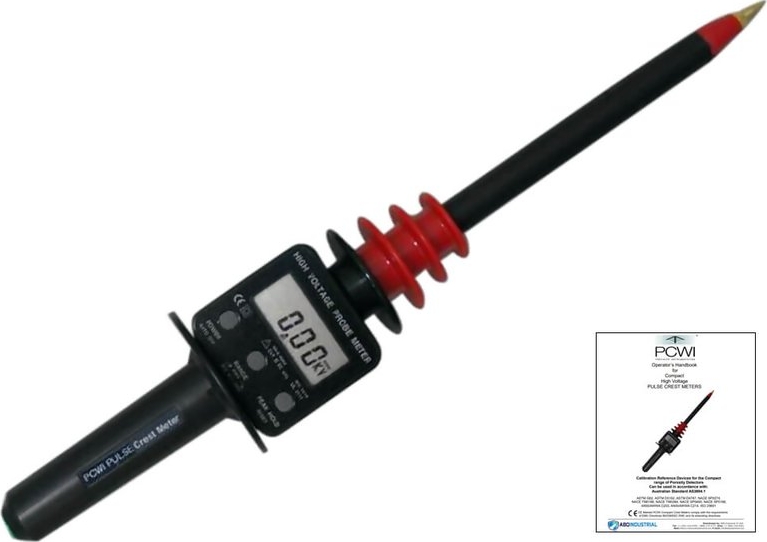

Kit Contents
line

PCWI PULSECREST High Voltage Pulse Crest Meter
Carry Case
Instruction Manual
One (1) year warranty

line
Features
line

Used for checking & calibrating Porosity Detector output voltage
Compact, lightweight hand-held unit
Integral probe
Conformance Certificate

Applications

Verification of output voltage and set voltage of detectors when a load is applied to the probe
To ensure accuracy, and to enable voltage adjustment (if necessary)

line
Specifications
line

Range	5 to 30kV
Resolution	10V / 1V / 0.1V
Earth lead	Separate
Dimensions	11,8" x 2,9" x 1,5" (300mm x 75mm x 40mm)
Weight	13,7 oz (390g)

line
Operation and Testing Procedure
line

Testing the output of the Detector, and verifying the voltage on the visual display

Set up Detector for test.
Switch on Detector, and set voltage.
Connect crest meter into system, set the Detector’s voltage using the crest meter’s display.

Note: The crest meter will measure and indicate peak voltage.
