NDT DPG-3 Enhanced Digital Pit Depth Gauge

See More Pit Depth Gauges
Price:
$275.00
    warrenty

    Product Description
    2 Exchangeable Knife Edge Bases
    IP54 protection level for water spray, dust, etc.
    Accuracy of +/- 0.001"

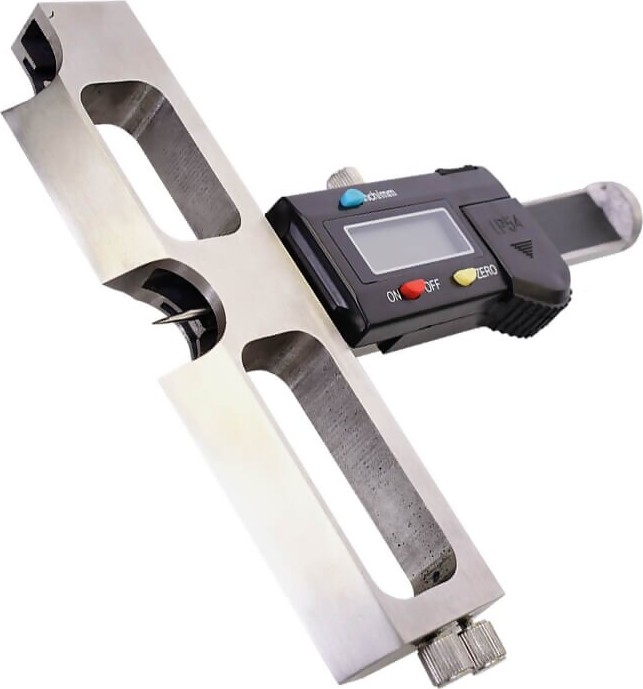

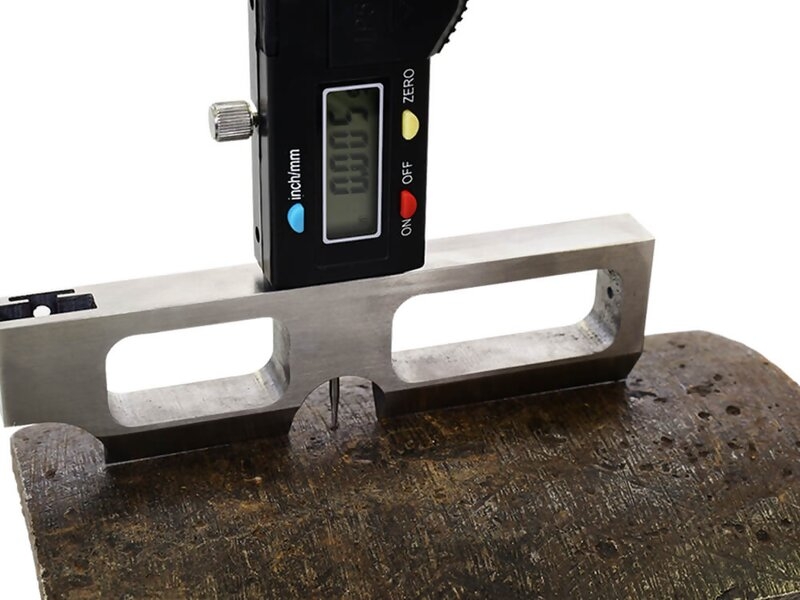

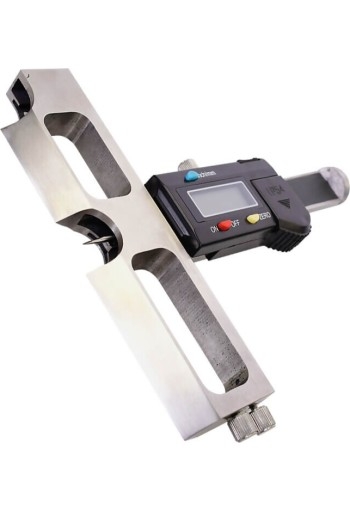

    The NDT DPG-3 Enhanced Digital Pit Depth Gauge is the new and improved spring loaded digital pit gauge with two exchangeable knife edge bases: a standard 2 3/8" long base and a 4 7/8" long base with center and cantilever positions for versatility based on your needs. Simple to use, the NDT DPG-3 Enhanced Digital Pit Depth Gauge is water resistant and made of hardened stainless steel, producing accurate measurements of surface pits, gauges, dents, undercuts and more. Only 0.050" in diameter, the probe can access even the smallest pits.


    line

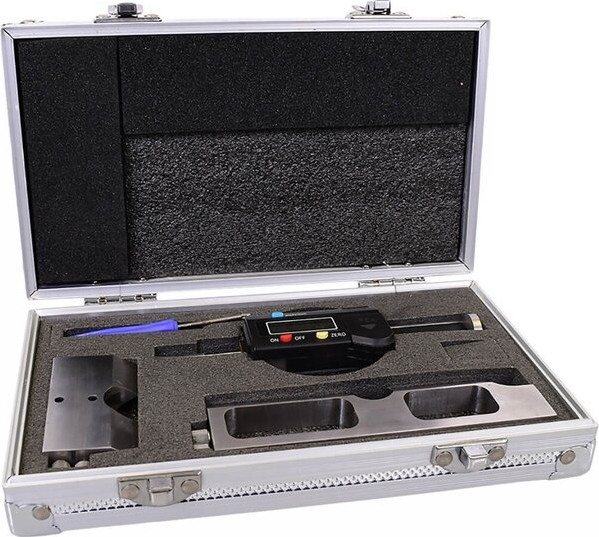

    Kit Contents
    line

    • Spring Loaded Digital Pit Gauge
    • Standard 2 3/8" Long Base
    • Two Position 4 7/8" Long Base
    • Two Sets of Attachment Screws
    • Hard Storage Case


    line
    Features
    line

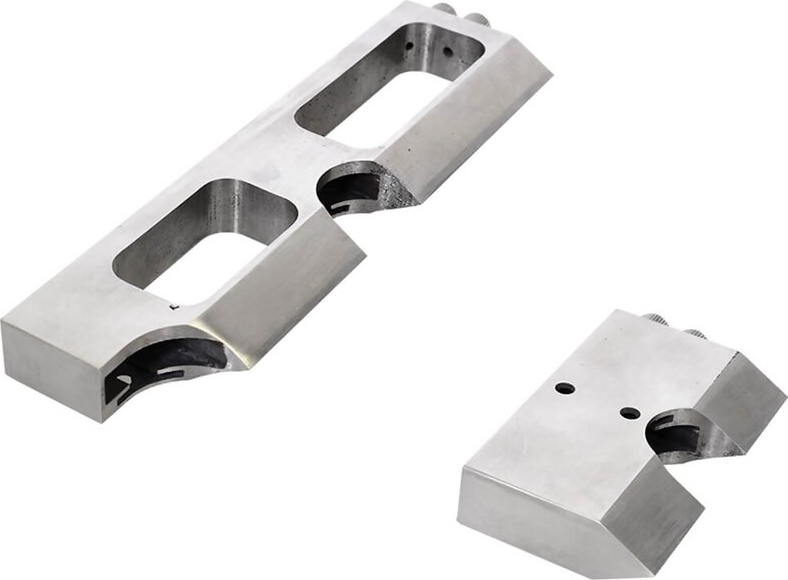

    • 2 Exchangeable Knife Edge Bases: Standard 2 3/8" long base and a 4 7/8" long base with center and cantilever positions
    • IP54 protection level for water spray, dust, etc.
    • Accuracy of +/- 0.001"
    • Can measure up to a 1.18" depth
    • Made of hardened stainless steel
    • Spring Loaded, 0.050" diameter probe
    • Can zero at any position
    • Button to switch between inches and mm
    • 1 Year Limited Warranty


    line
    Specifications
    line

    Resolution0.0004" (0.01 mm)
    Range0-1.18" (0-30 mm)
    Accuracy0.001" (0.03 mm)
    Protection LevelIP54

    Measuring Speed

    ≤ 1.5 m/sec.

    Standard Knife Edge Base Size

    2 3/8" Long

    Two Position Knife Edge Base Size

    4 7/8" Long with Center and Cantilever Positions
    Working Temperature0-40 °C
    Working Relative Humidity≤ 80%
    Storage Temperature-10-60 °C
    PowerOne Button 1.55 V Battery


    line
    Downloads
    line

    NDT DPG-3 Enhanced Digital Pit Depth Gauge - Data Sheet
