N88-VI Vessel Inspectors Kit - includes Reaching Blade N88-5B, the Pocket Reversible Blade N88-4B and the Basic Blade N88-2B

As Western’s Pit Gauge Product Series gains popularity, we are able to address various industry needs. When API Inspectors (510, 570, 653) see all of the different models of Pit Gauges we offer, they immediately want ‘one of each’!

Unfortunately budget constrains take hold and he’s limited to pick and choose his components. Due to customer requests, we now offer the Vessel Inspectors Kit

Kit Contents

Carry Case (7½” x 5½” x 2”). #1 and #2 Contact Points Fasteners and allen key Operator Instructions

Features

• As Western’s Pit Gauge Product Series gains popularity, we are able to address various industry needs. When Pipeline Inspectors would like to purchase our Digital Bridging Pit Gauge System, but their budget won’t permit the higher cost, the answer is our Digital Pipe Pit Gauge, which is simply the Main Blade and Digital Indicator of our Digital Bridging Pit Gauge System. In the future, as the budget permits, the inspector can purchase the rest of the parts, and assemble a full Bridging Pit Gauge, however with the Digital Pipe Pit Gauge, an inspector can evaluate 90% of all the Pitting he encounters. The Digital Pipe Pit Gauge evolved from specific customer requests!

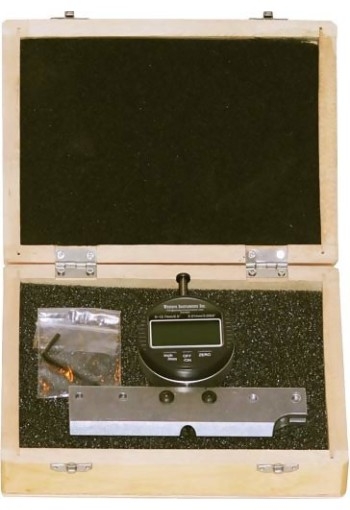

• The Digital Pipe Pit Gauge Kit comes in its custom made carrying case, with the Gauge (Digital Indicator and Blade), as well as the Accessories (Allan Key, Spare #1 Contact Point, Spare Battery, and Operator Manual). In this view, the Digital Indicator installed in the Centre Receptacle of the Blade for those who prefer this centralized mounting configuration.
• The view below is of the Digital Pipe Pit Gauge with the Digital Indicator installed in the End Receptacle. The Blade is equipped with a Cut Away below the End Receptacle, to allow the inspector to check corrosion right up to a weld, riser, or re-pad. Here the Gauge is measuring a 0.100” (2.4mm) nominal hole on Western’s standard N88-FBH Calibration Block.

Downloads

Western Instruments N88-9B-D-PIPE Digital Pipe Pit Gauge - Instruction Manual

Western Instruments Pit Gauges - Instruction Manual
