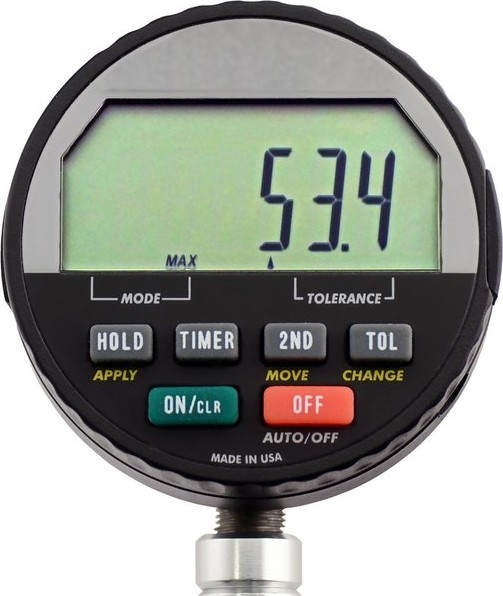

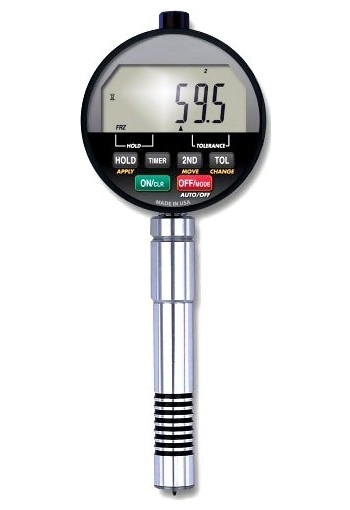

Rex RX-DD-5 Digital Durometer with Adjustable Timer
Adjustable Measurement Timer with Onscreen Countdown
Available Scales: A, D
Store and View up to 200 Measurements
Includes NIST Calibration Certificate
Conforms to ASTM D-2240
Available Scales: A, D, B, C, DO, E, M, O, OO, OOO, ASKER C
The Rex RX-DD-5 digital durometer is the latest innovation for performing timed hardness testing. The Rex RX-DD-5 is equipped with an adjustable timer and onscreen countdown that can be set to delay from 0-30 seconds. When enabled, the timer function will be automatically activated when the presser foot meets the test specimen. Up to 200 readings can be stored and viewed inside the durometer or downloaded through the USB port.
Kit Contents
- Rex RX-DD-5 Digital Durometer with Adjustable Timer
- 115V AC Adapter
- Calibration certificate in a foam-fitted metal
- Instruction Manual

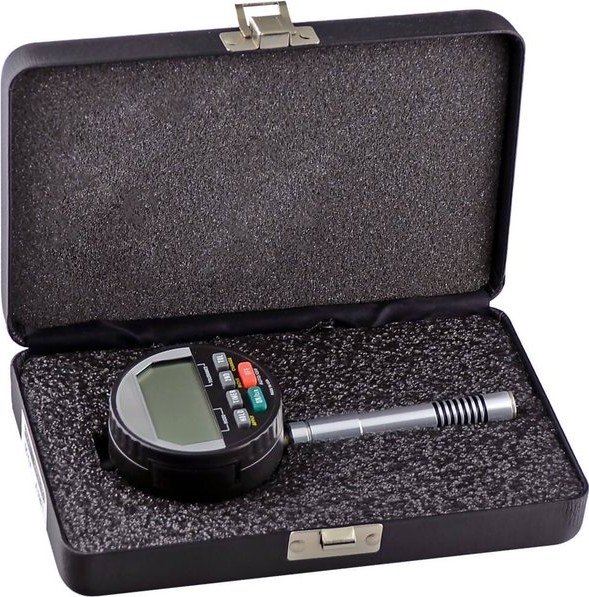

- Carrying case
Features
- Conforms to ASTM D-2240 (ISO, DIN and JIS Conformance Also Available)
- Adjustable Measurement Timer with Onscreen Countdown
- Store and View up to 200 Measurements
- High and low buttons for setting tolerance limits
- Holds reading until reset
- Dial rotates up to 270°
- Extra-Large Number Display
- Download and Collect Data Using USB Smart Cable (Sold Separately)
- Custom Made Carrying Case
- Includes NIST Calibration Certificate
- One Year Warranty
Specifications
| Measruing Range | 0 - 100 Units |
| Resolution | 0.1 Units |
| Accuracy* | ±1 durometer unit (A,B,C,D,E,O,DO) | ±2 durometer units (OO,OOO) | ±4 durometer units (M) |
| Tolerance | ± 0.5 at "100" and -0 +1 at "0" |
| Power Supply | (2) 3V CR-2450 Batteries
115V AC Adapter Included. 230V AC Adapter Optional |
| Mounting Thread | 5/16-40 |
| Dimensions | 2.25" x 6.125" |
| Weight | 7.15 oz (202.69 grams) |
| Warranty | 1 year |
| RS232 Output | 9600 baud, no parity, 8 data bits, 1 stop bit (requires external power) |
* Note: per ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.
Portable Battery-Powered Printer for Hardcopy Documentation
Need a hard copy printout of your measurement results?
Our P-190 Printer with the G03-0086 Cable will allow you to print each reading as it's shown on the display. The user simply depresses the thumb switch each time they want a value transferred to the printer. Simple yet effective!
The battery-powered P-190 Printer uses standard rolls of adding machine paper, unlike thermal printers the printout will not fade over time. It is supplied with a battery charger for operation on all power worldwide.
Order the following items as shown in the accessories section of the BUY NOW section at the bottom of this page.
P-190 Printer
G03-0086 Data Transfer Cable and Thumb Switch
