Magnetic pick-up with Amphenol connector

---

Sine wave output from change in magnetic to non-magnetic

---

Range of 0.01" (0.25 mm) typical clearance

---

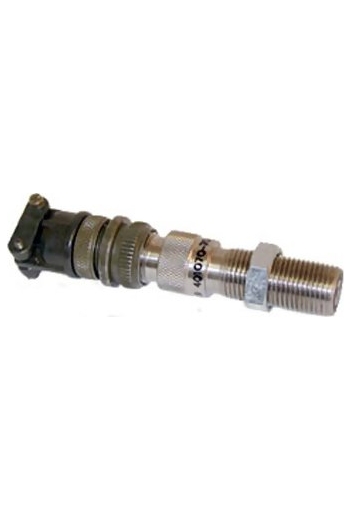

Shimpo 3030AN magnetic pick-up with Amphenol connector; requires sensor cable assembly. This general-purpose unit is designed to mount in a 5/8"-18 threaded hole and is provided with a jam nut for sensor securing.

Model 3030AN pickup provides a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole. The output voltage is directly proportional to the change in magnetic flux intensity over the change in time

Features

---

• Sine wave output from change in magnetic to non-magnetic
• Change in voltage proportional to magnetic flux intensity over time
• Range of 0.01" (0.25 mm) typical clearance
• Amphenol connector

Specifications

---

Measuring principle	5/8" – 18 threaded hole
Display	Sine wave
Adjustment	Clearance of 0.1" between the sensor and gear
Temperature Range	-100 to 225 °F (-75 to 107 °C)

Downloads

---

Shimpo 3030AN Magnetic Pick-Up Sensor - Instruction Manual
