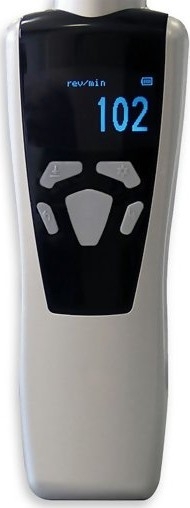

Shimpo DT-2100 Tachometer with USB Output, Combination Contact / Non-Contact

See More Handheld Tachometers

Shimpo DT-2100 Tachometer with USB Output, Combination Contact / Non-Contact

See More Handheld Tachometers
Price:
$345.00
    warrenty

    Product Description

    Shimpo DT-2100 Tachometer with USB Output, Combination Contact / Non-Contact


    Continuous Data-Logging, Optional Windows Software

    Measuring Range: Non-Contact - 1.00 - 99,999 rpm | Contact - 1.00 - 25,000 rpm


    Warranty: 1 Year

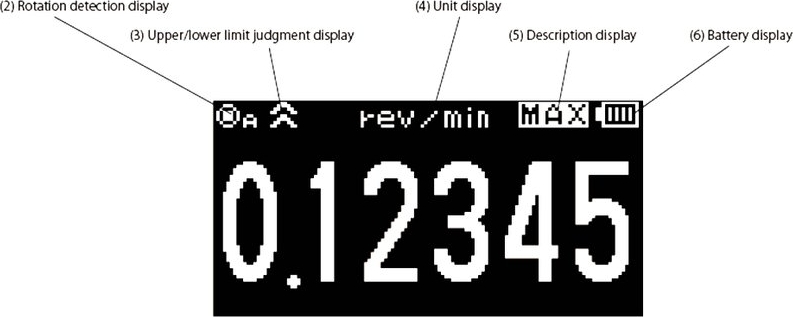

    The Shimpo DT-2100 Tachometer with USB Output is an advanced combination contact / non-contact hand-held tachometer. The DT-2100 features data-logging, USB output and a programmable scaling feature to offset RPM according to application variables. It features a backlit LED Display with upper/lower limit icons and a unique X-Y Graphic mode. Additional display modes unique to the DT-2100 is the "Needle Sweep" and Bar Graph" offers the user a choice of how to view the data. The display can also be inverted to optimize the viewing angle.

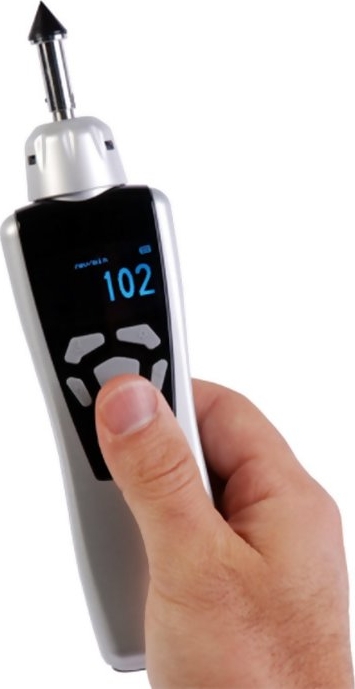

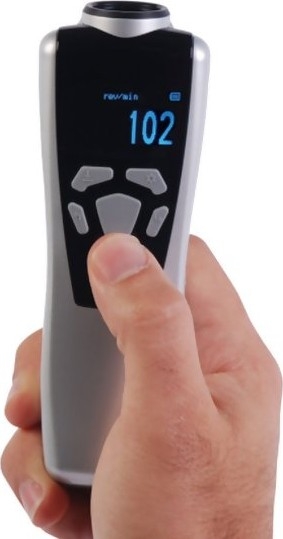

    In non-contact mode the tachometer measures RPM up to 99,999 RPM at distances up to 13 feet or 500 cm. The DT-2100 can also measure contact RPM, surface speed, or length using the supplied screw-on adapter.

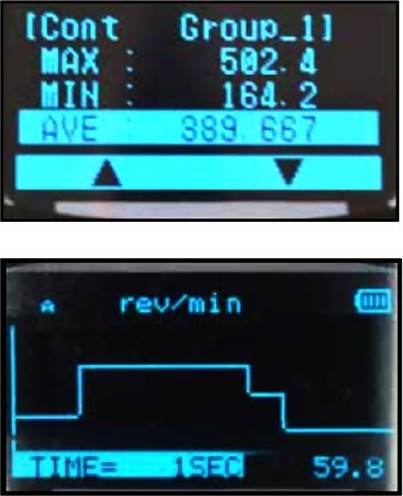

    Data logging can be set for single point or continuous logging. Single data points as well as statistics (Max, Min, Average) can be stored in the built-in memory and recalled to the display. Often users need to adjust machinery during testing, with the DT-2100 you can mount it on a tripod, select continuous logging and adjust machinery as necessary. After the test, you can easily review the data on the DT-2100's display or download to a computer using the optional PC Software.


    line

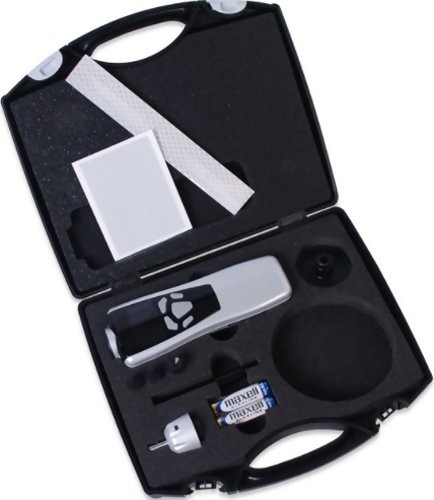

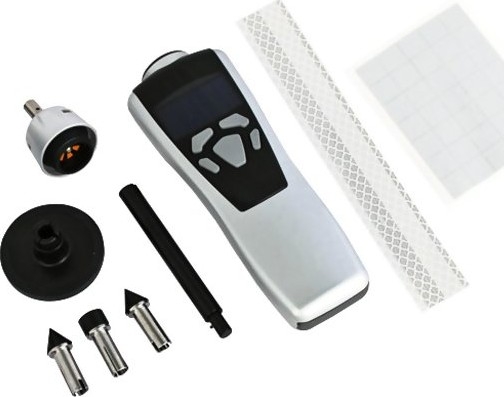

    Kit Contents
    line

    • Shimpo DT-2100 Tachometer with USB Output
    • 2 cone adapters
    • Funnel adapter
    • 3.5” extension shaft
    • Surface speed wheel (6” circumference)
    • Reflective tape
    • 2 AA batteries
    • Contact adapter
    • Carrying case


    line
    Features
    line

    • Data Logging with Continous, Single Unit or Statistics modes
    • View data and statistics on tachometer display or with optional Windows software
    • Built-in Memory with USB Data Output
    • Powerful laser for non-contact measurement 2” to 13.1’ (5 to 400 cm)
    • Non-Contact length measuring mode (requires reflective tape or edge of roller)
    • Programmable multiplier to convert reading based on wheel diameter, gear ratios, etc...
    • On-screen hi-lo limits for pass/fail analysis
    • Auto-detection of contact adapter
    • Reversible Display
    • 1/4-20 Threaded Insert on bottom of housing for fixed-mounting or use on Tripod


    line
    Specifications
    line

    Range6-99,999 rpm Non-contact
    0.8-25,000 rpm Contact
    Accuracy±0.006% of reading ±1 least significant digit
    Measuring UnitsSpeed: rpm, m/min, cm/min, inch/min, ft/min, yds/min, rps, m/sec, cm/sec, inch/sec, km/hr, mph
    Distance: cm, m, km, in, ft, yd
    MemoryContinuous Mode: 1000
    Single Mode: 100
    Statistics Mode: 100
    Laser Sensing Distance2 inches up to 13.1 Feet (5 to 400 cm)
    DisplayGraphical Blue Light OLED, reversible
    Display Update TimeSelectable: 100 ms, 500 ms, 1 sec, 5 sec
    Power2 AA 1.5V batteries or USB
    Battery LifeApprox: 20 hours with brightness set to 20%
    Temperature Limits32º - 113ºF (0º - 45ºC) Non-Condensing
    ConstructionPolycarbonate
    Dimensions6.1” x 2.2” x 1.4” (155 x 55 x 35 mm)
    Product Weight4.14 oz (125 g)
    ApprovalsCE, RoHS, PSC, FDA, IEC/EN 60825-1 : 2007
    Warranty1 Year
    Included Accessories2 cone adapters, funnel adapter, 3½” extension shaft, surface speed wheel (6” circumference), 2 AA batteries, contact adapter and carrying case


    line
    Downloads
    line

    Shimpo DT-2100 Tachometer with USB Output - Instruction Manual
    Shimpo DT-2100 Tachometer with USB Output - Software Manual
    Shimpo DT-2100 Tachometer with USB Output - Tachometer Manual
    Shimpo DT-2100 Tachometer with USB Output - Dimensional Drawing
