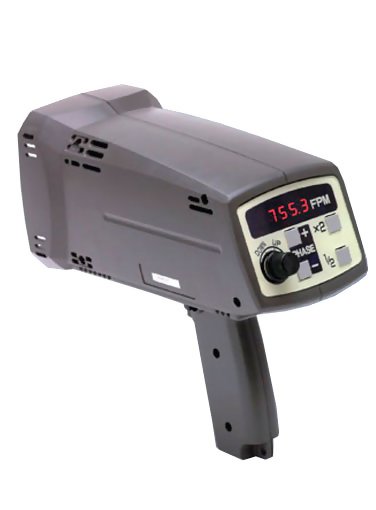

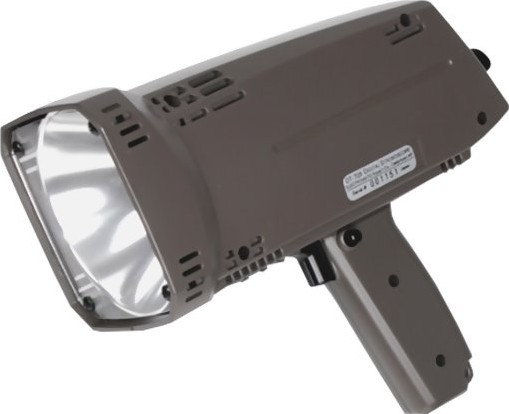

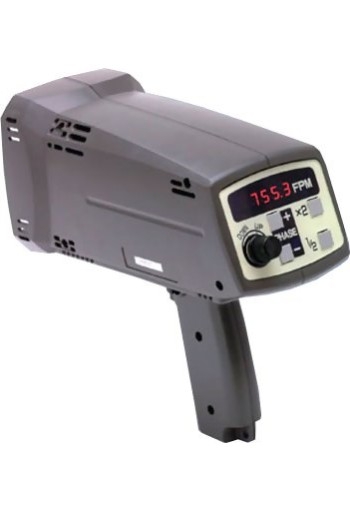

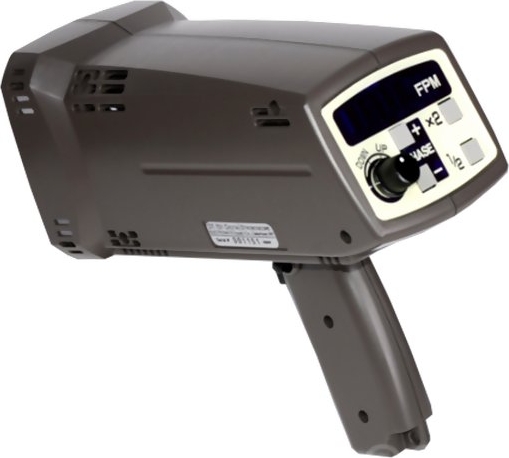

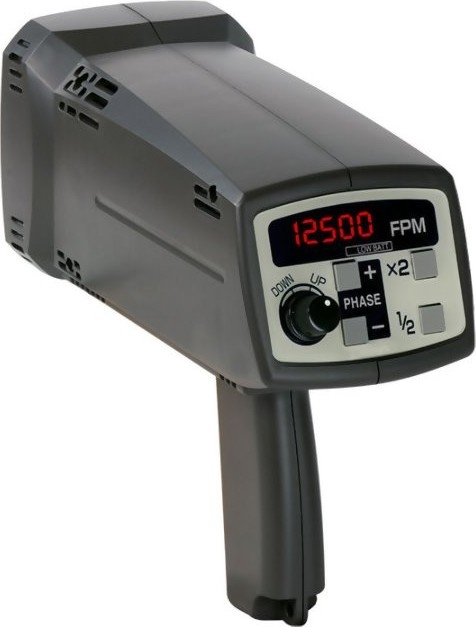

Shimpo DT-725 Digital Stroboscope
Range: 40 - 12,500 RPM/FPM
Power: Internal Battery Powered
The Shimpo DT-725 Digital Stroboscope is a highly stable, industrial-quality instrument for non-contact RPM measurement as well as for inspection and observation of moving parts by "freezing" or "slowing down" the action.

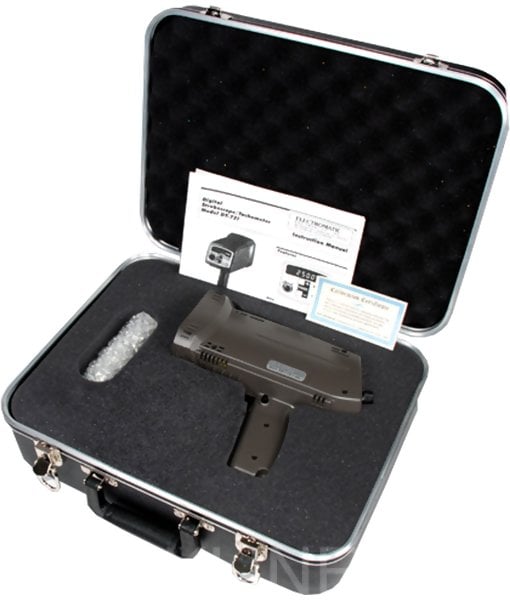

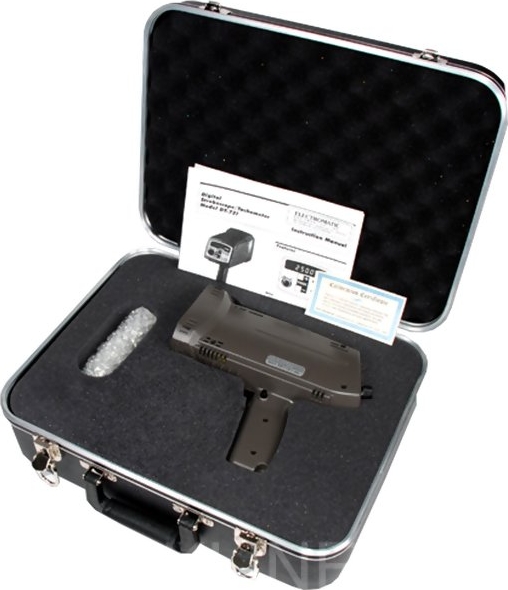

A "Kit" option is offered which also includes a carrying case and spare flash tube at minimal additional cost.
Kit Contents
- Shimpo DT-725 Digital Stroboscope
- Spare flash tube at minimal additional cost
- Carrying case
Features
- Highly accurate speed control with drift-free operation

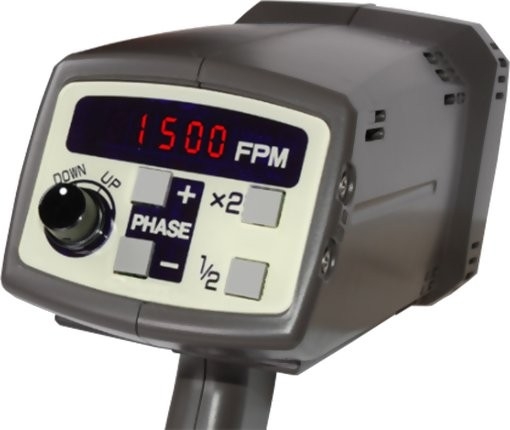

- Easy-to-use controls with bright LED display
- Instant double (2x) and half-rate (÷2) flash selection
- Accepts input from sensor for external flash triggering
- Phase shift adjustment permits movement of objects to desired position for convenient observation
- Extremely lightweight and rugged
Specifications
| Flash Range | 40.0 - 12,500 FPM |
| Accuracy | ± 0.02% of reading |
| Resolution | (0.1) 40.0 - 4,999.9
(0.2) 5,000.0 - 7,999.8
(0.5) 8,000.0 - 9,999.5
(1.0) 10,000.0 - 12,500.0 |
| Display | 5-Digit LED, 8 mm high |
| Flash Tube | Xenon, 10 watt |
| Tube Life | 100 million flashes |
| Flash Duration | 10 - 15 µs |
| Signal Output | NPN Open Collector, 24 VDC max. |
| Phase Shift | 0 - 359° (Internal Mode) |
| Operating Time | 1 hour |
| Charging Time | 15 Hours |
Low Batt
Indicator | LED light on display |
| Operating Temp | 32 to 105° F (0 to 40° C) |
| Weight | 1.50 lbs. (680 g) |
| Warranty | 1 years |
External Trigger Input Signal
- 12 - 24 V DC through a 3-wire NPN sensor (requires external power supply)
- 12 V DC through a 2-wire proximity sensor(Leakage Current 1 mA max. Load current 8 mA min.)
- Switch or Relay Contact

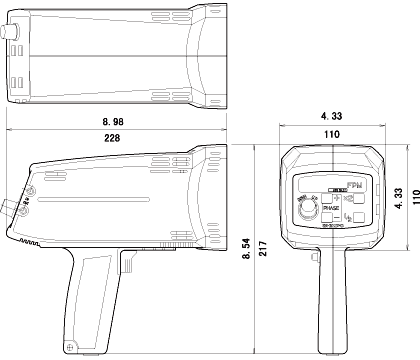

Dimensions
