Battery Powered Xenon Stroboscope

---

Range: 60 - 12,000 RPM/FPM

---

NIST-Traceable Calibration Certificate & Test Report optionally available

---

Flash Range: 60-12,000 RPM/FPM

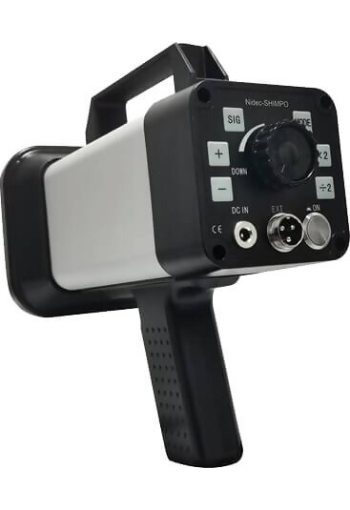

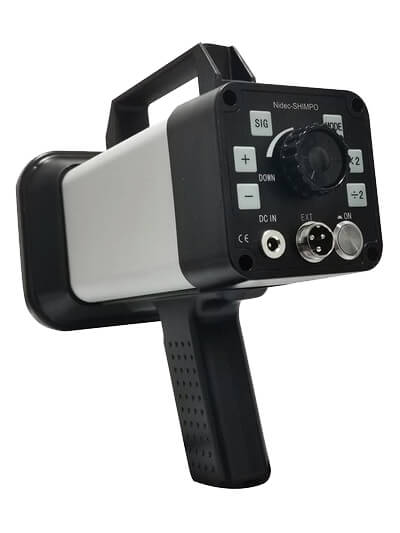

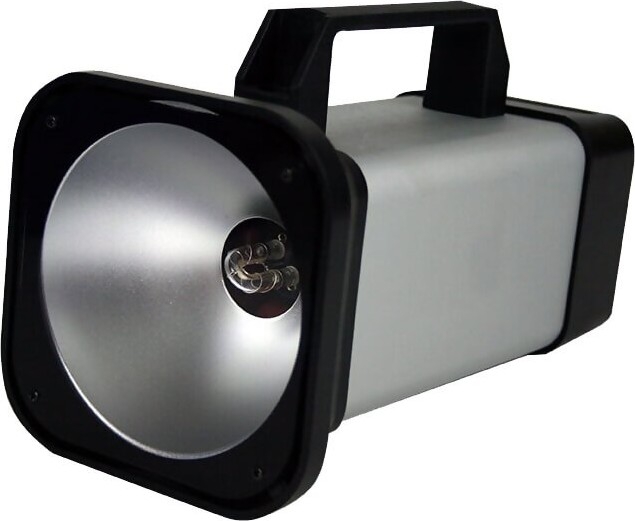

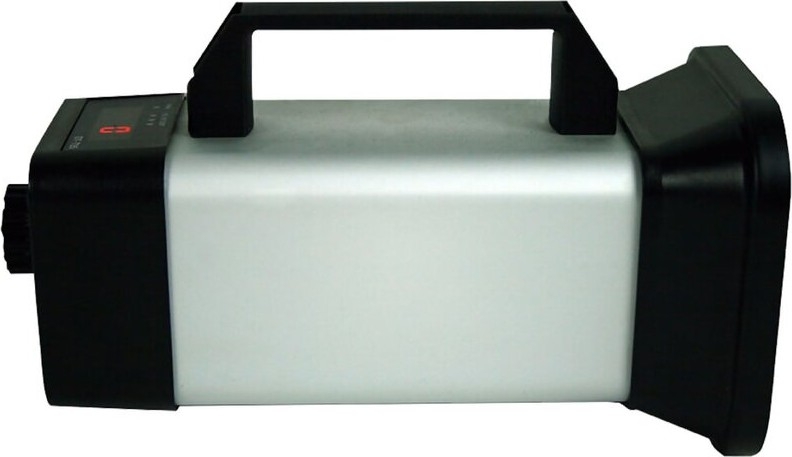

The Shimpo DT-735 Battery Powered Xenon Stroboscope is a portable, highly stable, industrial- quality stroboscope for non-contact inspection and observation of moving parts by providing the user the illusion of stopped or slowed down equipment movement.

A rugged metal enclosure allows the Shimpo DT-735 Battery Powered Xenon Stroboscope to withstand harsh industrial usage. The internal rechargeable battery and included top and bottom handles aid in portability and usage flexibility. The control adjustment settings allow the flash rate to be readily altered by the user to visually inspect rotating or reciprocating machinery such as gear teeth, rotors, shafts, rewinders, printing presses, etc. all without stopping production. These features make the DT-735 ideal for quality inspection and preventive maintenance of automated motion equipment.

Kit Contents

Shimpo DT-735 Battery Powered Xenon Stroboscope Universal AC Charger

Features

• NIST-Traceable Calibration Certificate & Test Report optionally available
• Includes top and bottom handle to allow user operation preference

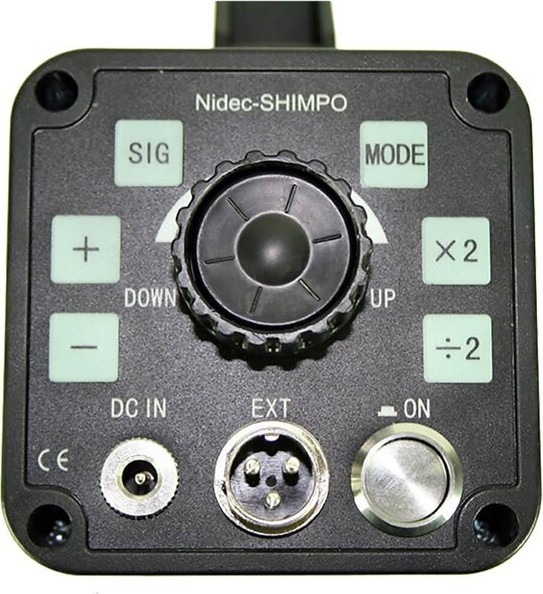

• Easy-to-use controls with bright LED display
• Made in China
• 1-year warranty
• CE Certified

Specifications

Flash Range	60 - 12,000 FPM
Accuracy	± 0.01%
Resolution	0.1 from 60-9999; 1 from 6,001-12,000
Display	5 digits 0.4” (10 mm) height
Flash Tube	Xenon ≤ 45W
Tube Life	50,000,000 flashes
Flash Duration	10-30 μs automatically adjusts with flash rate
External Trigger Input	5V ~ 12V pulse signal (high level trigger) up to 50 mA
Lux Rating	8” (20 cm) Distance = 1550 lx @ 1500 fpm, 2350 lx @ 6000 fpm with 15.5” (400 mm) irradiation diameter. | 20” (50 cm) Distance = 650 lx @ 1500 fpm , 580 lx @ 6000 fpm with 23.5” (600 mm) irradiation diameter
Battery Type	Ni-MH
Battery Life	1.5 to 2 hours depending on settings
Charging Time	5 hours to full charge
Power Requirement	100-240 VAC 50/60 Hz
Operating Temperature	32 - 104°F ( 0 - 40°C )
Dimensions	9.8 x 4.7 x 4.7” (250 x 120 x 120 mm)
Product Weight	2.75 lb (1.25 kg)
Package Weight	4.1 lbs (1.86 kg)
Warranty	1 year
Certification	CE
Included Accessories	Upper and Lower Handle, AC charger with cable
