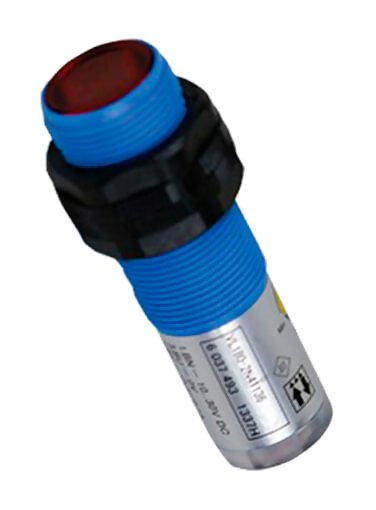

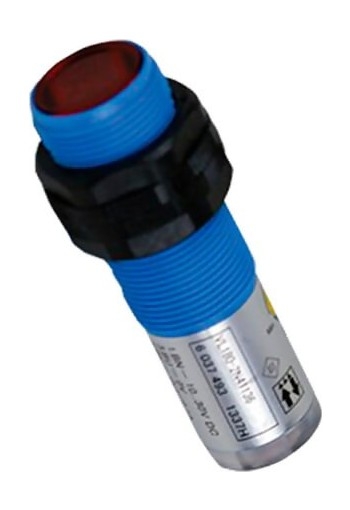

Name: Shimpo MCS-655P Photo-Reflective Speed Sensor, Plastic Housing
Brand: Shimpo
SKU: 382
Price: 150.00 USD
Availability: InStock

Shimpo MCS-655P Photo-Reflective Speed Sensor, Plastic Housing

See More Stroboscopes

Sensing distance up to 23' (7 m)

Bright red sender LED simplifies alignment and saves installation time

High switching frequencies up to 1000 Hz

The MCS-655M and MCS-655P is a photo-reflective NPN open collector photo sensor with Light/Dark activated output that operates up to 1000 Hz. For simplified installation purposes the integral LED aids in the MCS-655M and MCS-655P model comes in a robust metal housing with a connection cable, LED status indicator, sensitivity control and mounting nuts

line
Features
line

Sensing distance up to 23' (7 m)
Polarizing filter ensures reliable detection of highly-reflective objects
Bright power and signal LEDs with 360° visibility offer quick and simple troubleshooting, reducing maintenance time and costs
Bright red sender LED simplifies alignment and saves installation time
Reflector Included
High switching frequencies up to 1000 Hz
The flat and smooth lens reduces the collection of dust and dirt, ensuring reliable operation
Polarizing filter prevents false readings on reflective surfaces, reducing errors

line
Specifications
line

Sensor / Detection Principle	Photoelectric retro-reflective sensor
Housing Length	2.5" (62.9 mm)
Housing Thread Diameter	M18 x 1
Sensing Range	2" – 23' (0.05 -7 m)
Light/Source	Visible red LED
Light Spot @ Distance 19.7'(6 m)	15.75" (400 mm)
Wave Length	645 nm
Sensitivity Adjustment	Turnable Potentiometer over 270°
Supply Voltage	10-30 V DC
Switching Output	NPN open collector, Light/dark-switching, Selectable via L/D control wire
Signal Voltage NPN HIGH ⁄ LOW	Approx. VS ≤ 1.8 V
Output Current Max.	100 mA
Response Time MCS-655M	≤ 0.5ms
Response Time MCS-655P	0.5ms
Switching Frequency	1,000 Hz with light/dark ratio 1:1
Angle of Dispersion	Ca. 4.5 °
Ambient Operating Temperature	-13 to 131 °F (-25 to 55 °C)
Housing Material MCS-655M	Nickel-plated brass
Housing Material MCS-655P	PBT and PC
Optics Material	PMMA
Cable Material	PVC
Connection Type	Cable, 4-wire, 6.6'(2 m)
Circuit Protection	Inputs and output reverse-polarity protected; outputs overcurrent and short-circuit protected
Weight MCS-655M	3.35oz (95 g)
Weight MCS-655P	2.2oz (62 g)
Enclosure Rating	IP 67
Items Supplied	Fastening nuts (2 x), Reflector target, reflection tape
