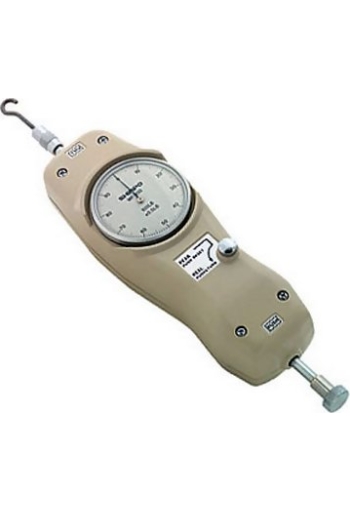

Shimpo Economical Mechanical Force Gauge

---

Accuracy ± 0.2%

---

15 Ranges up to 100 lbs or 50kg

---

15 Ranges up to 100 lbs or 50kg

Incredibly durable and user-friendly, the Shimpo economical MF mechanical force gauges are excellent for push/pull force testing in manufacturing, material testing, maintenance and inspection applications.

The peak force mode features an easy push-button reset; this is especially helpful for doing repetitive testing in an assembly line or in quality control. The large dial indicator allows viewing of force changes as they occur. This large dial reduces the chance for parallax errors when taking readings.

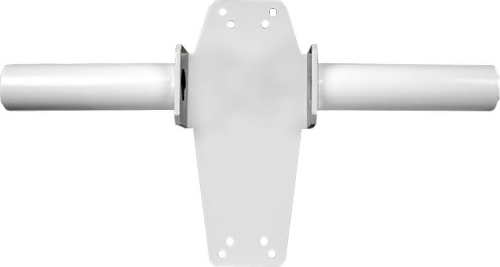

The Shimpo Economical Mechanical Force Gauge was ergonomically designed for handheld use, but may also be used with the optional handle-great for loads over 15 pounds (6.8 kg). Due to its mechanical design, response time is immediate. Calibration is achieved by a set of precisely matched springs which are overload protected to 165 pounds (75 kg)!

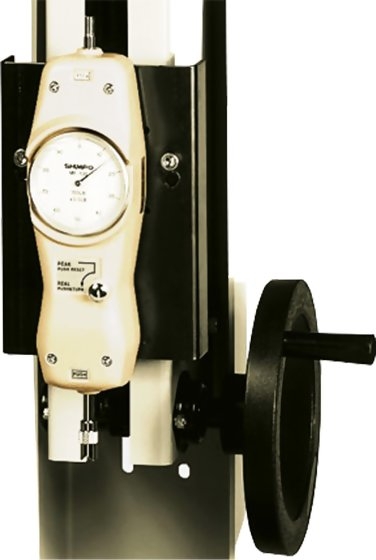

MF gauges feature a die-cast aluminum housing which mounts easily to all of our test stands for even greater control of repetitive testing. All standard Series MF gauges include a protective carrying case plus attachment adapters.

Kit Contents

---

Features

---

• Accuracy ± 0.2%
• Easy-to-read analog scale
• Peak mode retains highest reading
• Overload protection up to 165 pounds
• 100% mechanical, no batteries required

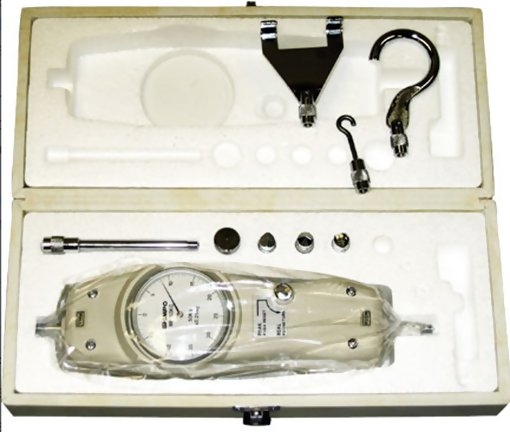

• Supplied as a complete kit with several attachments in a foam fitted carrying case
• 1 Year Warranty

Specifications

---

Accuracy	±0.2% F.S.
Display	Analog dial, 2" (50mm) diameter
Operating Modes	Real time or Peak-Hold
Overload Protection	165lb (75kg)

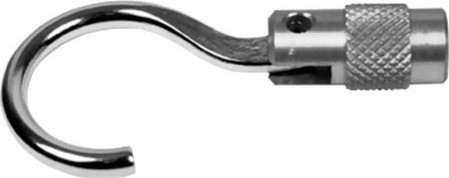

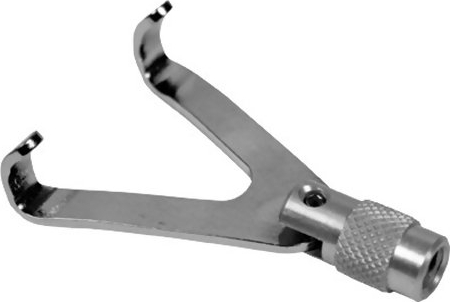

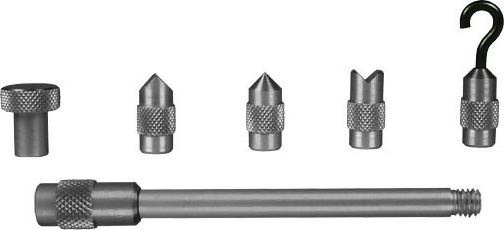

Standard Accessories	flat head, hook, chisel, notched head, cone head, extension rod, large hook and large V-hook all supplied in a foam fitted carrying case
Weight	1.6 lbs (0.73 kg), net  4 lbs (1.81 kg), gross
Warranty	1 Year

Force Ranges

---
