StraightPoint INSIGHT Software, Datalogging, visualisation, centre of gravity & proof test software with SW-D USB dongle - 2789318

See More Dynamometers Tension Load Cells
Price:
$2,426.00
    warrenty

    Product Description
    StraightPoint INSIGHT Software
    Logging at timed intervals, manual or on overload/underload
    Visual and audible alarms indicate overload, underload, low battery and communications error
    Zoom in to individual load cell to see data trends and history

    The StraightPoint INSIGHT Software is supplied with an SW-D USB wireless dongle, allows connection of up to 126 Straightpoint wireless load cells simultaneously onto any Windows tablet or laptop.

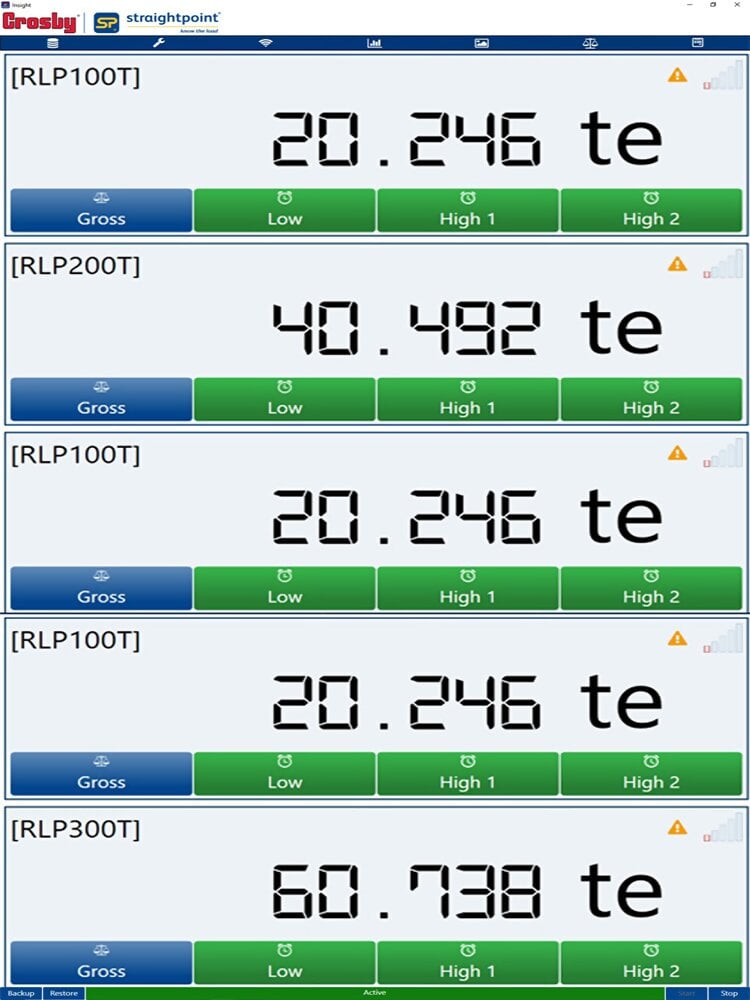

    1. Multi-channel display and data logging mode – view and log load data from connected load cells plus totals loads live on screen and directly into a .csv file for later analysis at speeds of up to 200Hz.

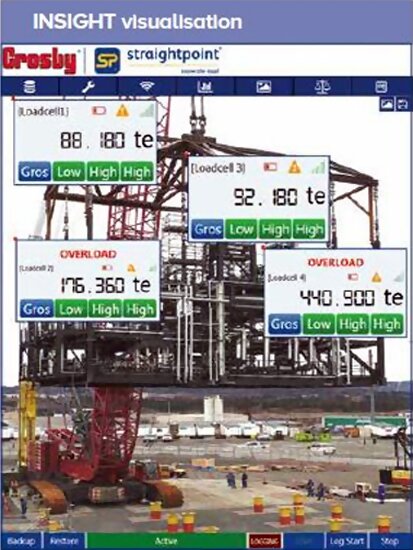

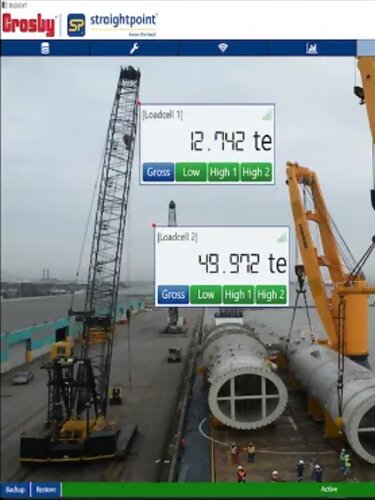

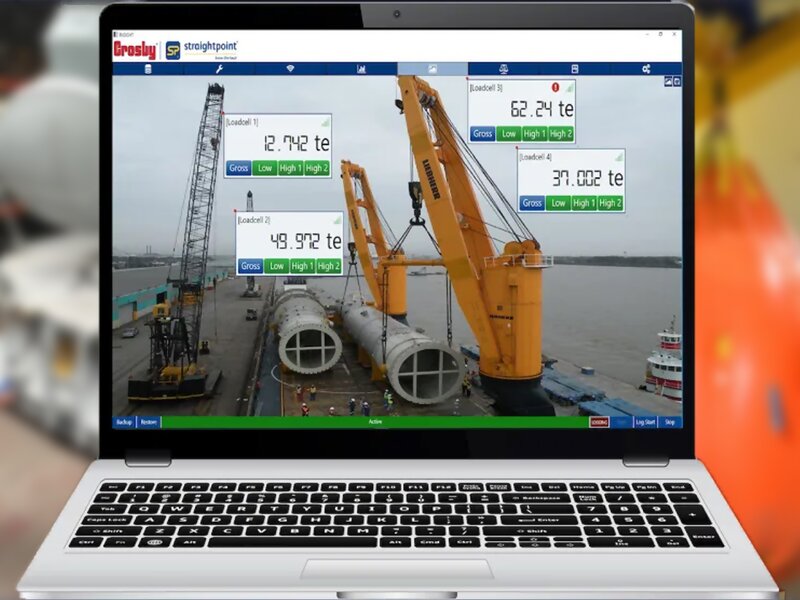

    2. Visualisation mode – For complicated lifts import a photo of the lift and drag and drop load cell displays – make the screen look like the lift.
    3. Centre of gravity mode – Connect to SP’s range of wireless compression load cells and use this feature to weigh and calculate the centre of gravity of large items and structures.
    4. Proof Load Testing - Real time graphing of load test and auto generated test certificates.


    line
    Features
    line

    • Logging at timed intervals, manual or on overload/underload
    • Visual and audible alarms indicate overload, underload, low battery and communications error
    • Zoom in to individual load cell to see data trends and history
    • 100% wireless, no easily damaged cables
    • 700m or 2300ft range

    Benefits

    • Displays and logs data up to 126 Straightpoint wireless load cells simultaneously
    • Three weighing’s per C of G report with averages and statistical analysis to ISO19901
    • Plot load cell positioning using measurements or GPS co-ordinates
    • Extra fields for operator, client, wind speed and temperature available for reporting

    Appications

    • Tandem Lifting and Lowering
    • Water weight Testing
    • Overhead Weighing
    • Bollard Pulling
    • Tug Testing
    • Stevedoring
    • Entertainment rigging
    • Dynamic load monitoring
    • Weighing large industrial items - absorbers, jackets, transformers, generators and modules


    line
    Specifications
    line

    USB Dongle Operating Tem-20°C to +70° / -4°F to 158°F
    LicenseLicense Free
    Frequency2.4 GHz
    Range700 meters / 2300 ft
    Load Cell InputsUp 126
    Operating SystemWindows 7, 8 or 10
    Max Data Throughput4000 samples/sec | 20 Loadcells at 200Hz each or max of 126 Loadcells at low sample rate


    line
    Downloads
    line

    StraightPoint INSIGHT Software - Data Sheet
    StraightPoint INSIGHT Software - Instruction Manual
    StraightPoint INSIGHT Software - Guide
