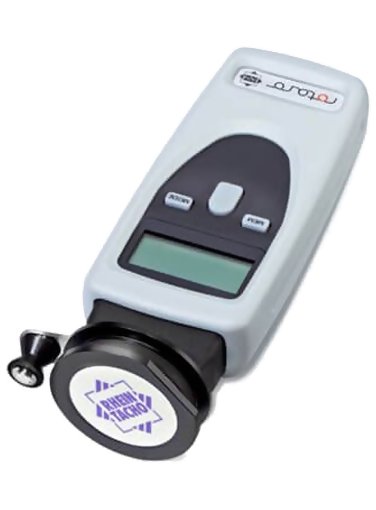

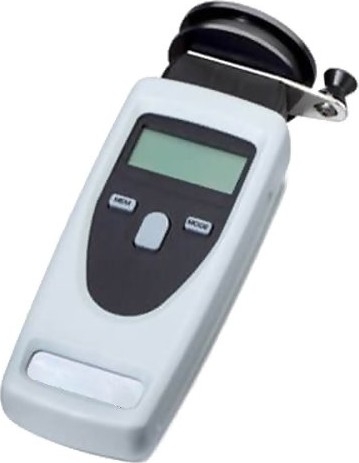

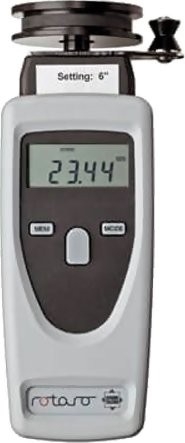

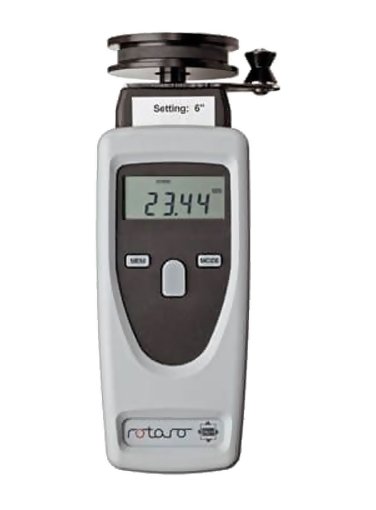

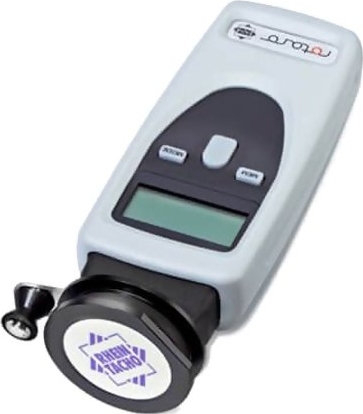

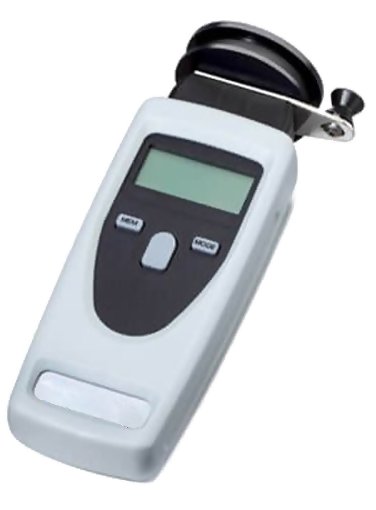

CDT-2000HD-TE accurately measures speed and ,

---

Length of wires

---

Cables and ropes up to 8 mm diameter, e.g.in elevator applications

---

Checkline CDT-2000HD-TE allows the device to measure speed and length of wires, cables and ropes up to 8 mm diameter, e.g.in elevator applications. The Checkline CDT-2000HD-TE is just as useful when setting up plants and machinery as during service jobs, monitoring manufacturing processes or in development laboratories.

Example applications include measuring the rotational speeds of engines, pumps and turbines, as well as of mixers, centrifuges and conveyors; it can also measure the velocities and lengths of all kinds of threads, sheets and belts.

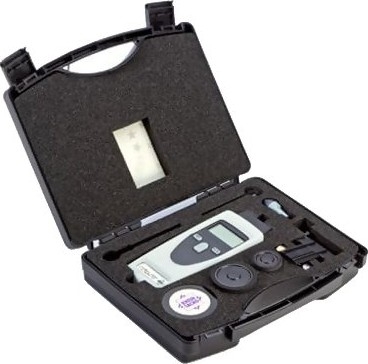

Kit Contents

CDT-2000HD-TE Wire, Cable, and Rope Speed Meter Wire Cable Rope Speed Adaptor Slide-In Tachometer Contact Adapter 6" & .1m Surface Speed Wheels Cone Tip

Funnel Tip Extension Shaft Reflective Tape Two (2) AA Batteries (1.5 V) Calibration Certificate Operating Instruction Manual Carrying Case

Features

• Measurement of wires, cables and ropes up to 8 mm
• Used for elevator applications and similar applications for measure cable speed and length
• Wire Speed can be measured in feet/min, meters/min or in/min (user selectable)
• Total Length can be measured in feet, meters, inches.
• Wrapper roller mounted beside main roller insures adequate contact to eliminate slippage
• Designed and fabricated in Germany
• Includes Traceable Calibration Certificate

Specifications

Measurement Diameter	Up to 8mm
Resolution	.01 from 0 - 100 .1 from 100 - 1,000 1 from 1000 - 99,999
Accuracy	± 0.02% of reading or 1 digit
Display	5 - Digit LCD, 10mm high
Decimal Point	Automatic
Memory System	Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System	Non-Contact: Visible LED light beam Contact: Contact adapter
Engineering Units	RPM: RPM Surface Speed: Ft/min, inch/min & meters/min Length: Feet, inches, meters
Sensing Distance	Up to 24 inches (60 cm)
Display Update Time	0.5 seconds or one measuring
Auto Power Off	After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life	40 hours continuous use
Battery	2 AA (1.5 V) or rechargeable
Weight	6 ounces (170 grams)
Housing Material	ABS Plastic housing with removable protective rubber shell
Operating Temperature	32 to 122° F (0 to 50° C)
Storage Temperature	-4 to 150° F (-20 to 70° C)
Accessories included	Contact adapter, cone tip, universal surface speed wheel, reflective tape, operating instructions and foam-fitted, hard plastic carrying case
Optional Accessories	Shaft extension, 3.15 inches (80 mm)
Warranty	5 years
Calibration Certificate	Included

Ranges

RPM	Non-Contact: 1.00 - 99,999 rpm Contact: 1.00 - 19,999 rpm
Surface Speed	0.30 - 6,500 feet/min 0.10 - 1,999 meters/min 4.0 - 78,000 inches/min
Length	0.01 - 99,999 feet 0.02 - 99,999 meters 1.0 - 99,999 inches
