Name: Checkline CDT-2000HD-TW Welding Wire Speed Meter / Combination Tachometer kit
Brand: Checkline
SKU: 1465
Price: 895.00 USD
Availability: InStock

Checkline CDT-2000HD-TW Welding Wire Speed Meter / Combination Tachometer kit

See More Handheld Tachometers

CDT-2000HD-TW accurately measures the linear feed speed of welding wire in feet

inches or meters per minute

For use on Welding Wire Diameter Range of 0.032" - 0.120" (0.8 to 3.0mm)

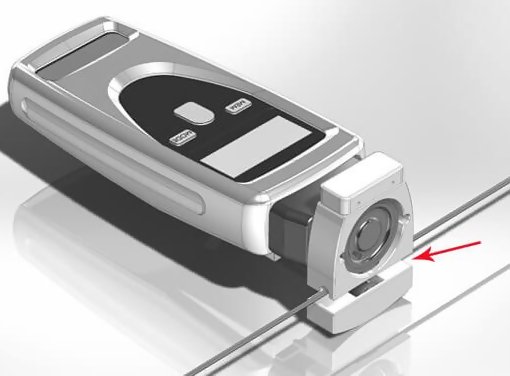

The Checkline CDT-2000HD-TW accurately measures the linear feed speed of welding wire in feet, inches or meters per minute. A precision measuring head secures the wire and maintains contact against the measuring wheel for accurate measurements. Based on the award winning CDT-2000HD tachometer, the CDT-2000HD-TW also measure RPM via contact and non-contact methods.

line

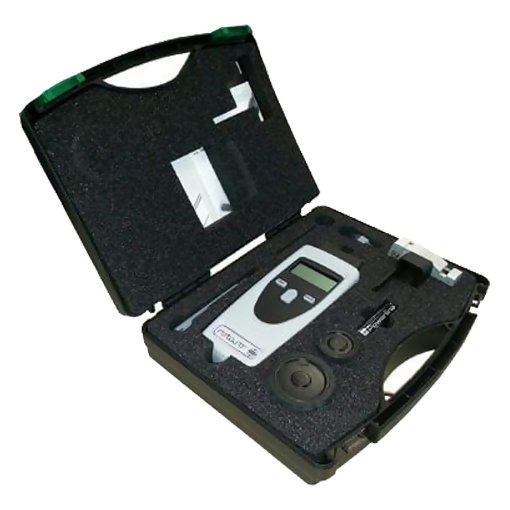

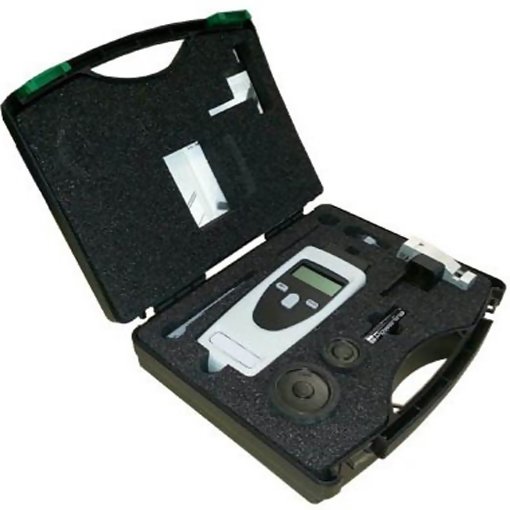

Kit Contents
line

CDT-2000HD-TW Welding Wire Speed Meter / Combination Tachometer Kit
Welding Wire Speed Adapter
Slide-In Tachometer Contact Adapter
6" & .1m Surface Speed Wheels
Cone Tip
Funnel Tip

Extension Shaft
Reflective Tape
Two (2) AA Batteries (1.5 V)
Calibration Certificate
Instruction Manual
Carrying Case

line
Features
line

Includes Traceable Calibration Certificate
For use on Welding Wire Diameter up to 0.120" / 3mm
Wire Speed can be measured in feet/min, meters/min or in/min (user selectable)
Total Length can be measured in feet, meters, inches.
Spring-loaded head and ball-bearing mounted contact roller eliminates slip and ensures accuracy
Designed and fabricated in Germany

line
Specifications
line

Accuracy	± 0.02% of reading or 1 digit
Display	5 - Digit LCD, 10mm high
Decimal Point	Automatic
Memory System	Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System	Non-Contact: Visible LED light beam Contact: Contact adapter
Engineering Units	RPM: RPM Surface Speed: Ft/min, inch/min & meters/min Length: Feet, inches, meters
Sensing Distance	Up to 24 inches (60 cm)
Display Update Time	0.5 seconds or one measuring
Auto Power Off	After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life	40 hours continuous use
Battery	2 AA (1.5 V) or rechargeable
Weight	6 ounces (170 grams)
Housing Material	ABS Plastic housing with removable protective rubber shell
Operating Temperature	32 to 122° F (0 to 50° C)
Storage Temperature	-4 to 150° F (-20 to 70° C)
Accessories included	Contact adapter, cone tip, universal surface speed wheel, reflective tape, operating instructions and foam-fitted, hard plastic carrying case
Optional Accessories	Shaft extension, 3.15 inches (80 mm)
Warranty	5 years
Calibration Certificate	Included

Ranges

Speed Range	0.30 - 6,500 feet/min 0.10 - 1,999 meters/min 4.0 - 78,000 inches/min
Resolution	.01 from 0 - 100 .1 from 100 - 1,000 1 from 1000 - 99,999
