Compact A2106 Advent Diesel Engine Handheld Tachometer is  Ideal for checking fast idle & maximum governed speeds

---

Hands free operation mode

---

Range of Injector pipe Transducers available for 4.5mm - 10mm dia. Pipes

---

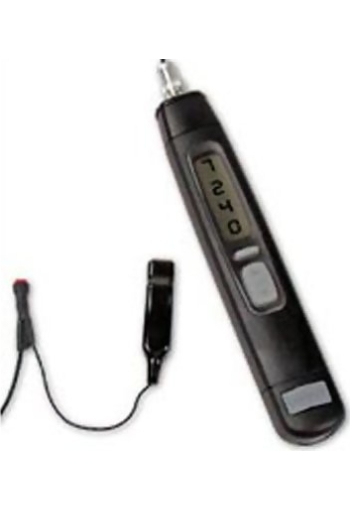

The Compact A2106 Advent Diesel Engine Handheld Tachometer is an ideal test Tachometer for most diesel engine applications, it functions with all types of Diesel engines (where exposed injector pipes exist). The speed is sensed by a transducer clamped around an injector pipe, the correct size sensor is required for each pipe diameter.

Automatic Measurement - Auto switch off

The units operate continuously once powered on, measurement will be automatic while speed pulses are being received from the Transducer, after approximately 5 minutes of inactivity the instrument switches off.

Inverting display

This unique feature allows the Tachometers to be used through 180 degrees rotation, providing easy readability in difficult applications.

Maximum revs capture mode

Allows the user to take “single shot” peak speed checks on machines with automatic overspeed governors and centrifugal clutch checking, the actual maximum speed is held in the display.

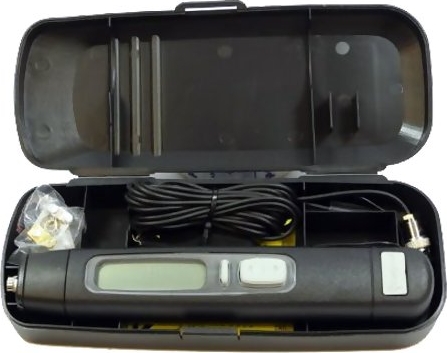

Kit Contents

Compact A2106 Advent Diesel Engine Handheld Tachometer Batteries Calibration certificate Transducer cable Transducer DES/10 (6mm) Instruction Manual Carrying Case

Features

• Ideal for checking fast idle & maximum governed speeds
• Speed range 60 - 8,000 rpm
• 1 rpm resolution
• Ideal for most 4 Stroke and 2 Stroke Diesels
• Range of Injector pipe Transducers available for 4.5mm - 10mm dia. Pipes
• Reversible display
• Hands free operation mode
• Inverting display adds versatility

Specifications

Speed Range	60 to 18,000rpm
Resolution	10 rpm
Accuracy	0.05% +/- 1 digit
Update	0.8 sec (normal mode)
Capture mode	0.1 sec
Controls	On, invert, Capture select ratios 1:2 or 1:1
Auto Off	Auto shutdown if inactive for 5 minutes
Signal Indicator	Yes in display
Low battery ind.	Yes in display
Power	4x AAA batteries

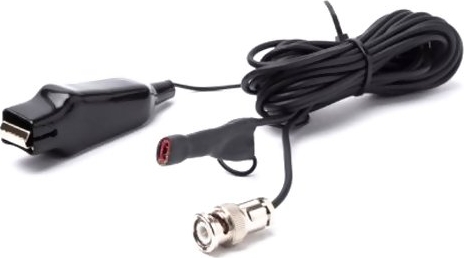

Transducer Cable	1 metre cable connectors included
Carrycase	Supplied

Injector Pipe Transducers Standard
