Name: Compact A2108 Tachometer with Analog Output
Brand: Compact
SKU: 514

Compact A2108 Tachometer with Analog Output

See More Handheld Tachometers

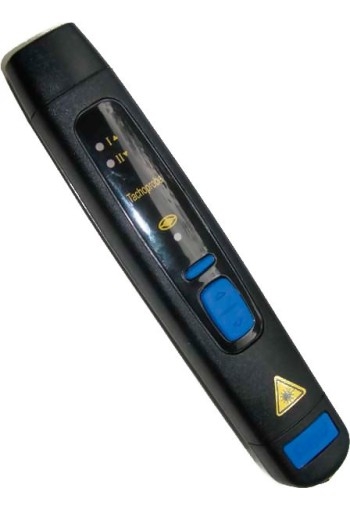

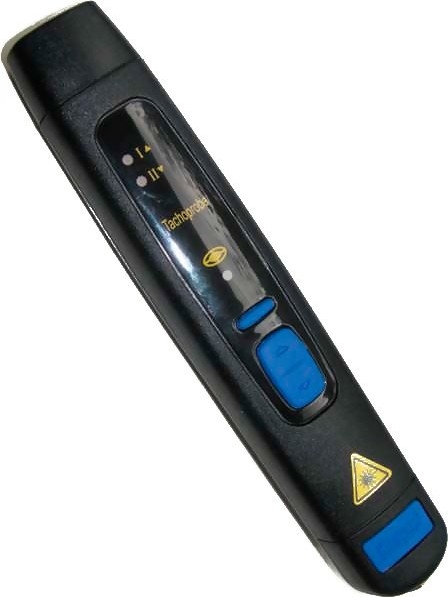

Compact A2108-LSR Tachometer with Analog Output

The Compact A2108 Tachometer with Analog Output is designed to provide short term continuous monitoring of rotational speeds or linear rate with our optional Contact Adaptor accessory type A2100/01.

The voltage output on the A2108-LSR Analogue Output version provides 1mv/rev = 6vdc @ 6000 rpm.

The A2108-LSR version is switched On manually, using the continuous mode feature. option, provided continuous measurement is taking place the Probe will remain in the ON mode. An Auto OFF feature provides shutdown if no activity is logged for 1 minute.

One model - Analog output

line
Kit Contents
line

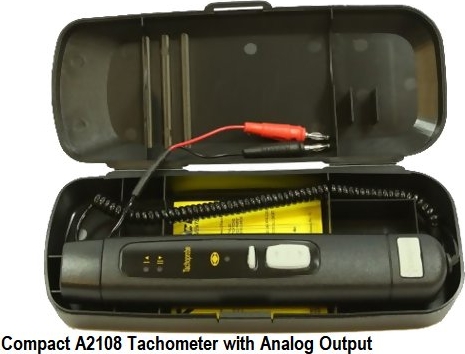

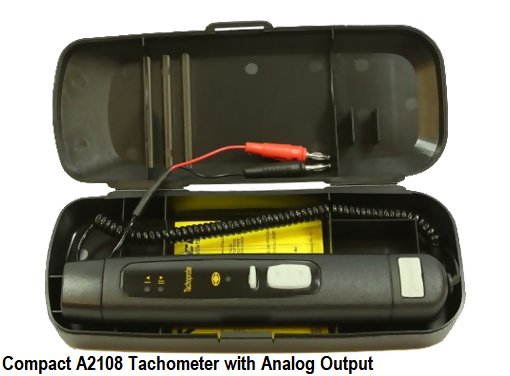

Compact A2108 Tachometer With Analog Output
Reflective Tape
Certificate of Calibration

Instruction Manual
Carrying Case

line

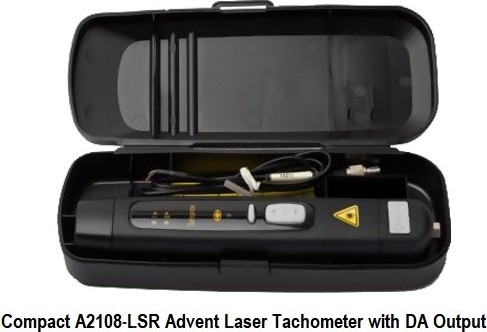

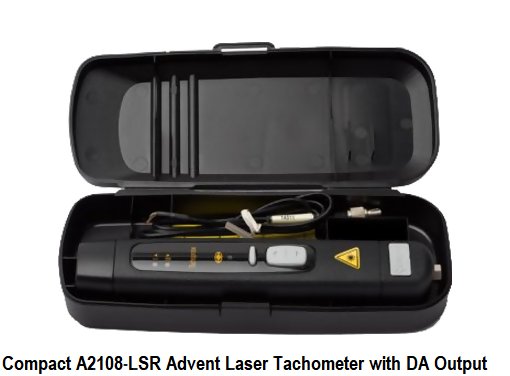

Compact A2108-LSR Tachometer With Analog Output
Reflective Tape
Certificate of Calibration

Analogue Adaptor
Instruction Manual
Carrying Case

line

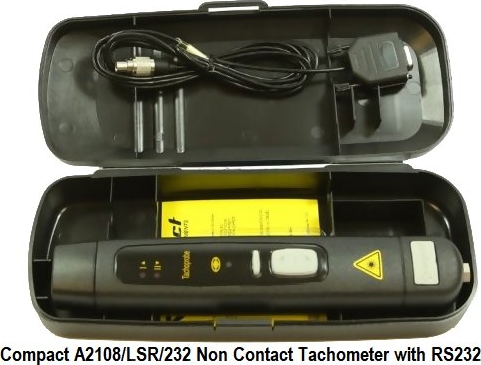

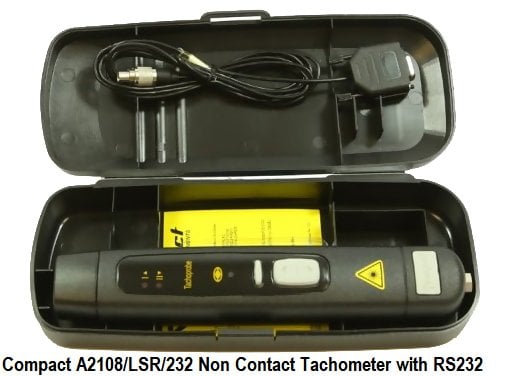

Compact A2108/LSR/232 Tachometer With Analog Output
Pack of 4 AAA Batteries
Reflective Tape
Certificate of Calibration
RS-232 Serial Adaptor

Software available to download from the PDF Downloads & Software Product Tab
Analogue Adaptor
Instruction Manual
Advent Carry Case

line
Features
line

Long optical range - up to 2 metre (6ft)
Very wide speed range - up to 60,000rpm
Self powered - integral AAA batteries
Optical & Contact measurement with Adaptor)
Hand held, bracket or tripod mounting

line
Specifications
line

Compact A2108 Tachometer

RPM Overall Range	100 – 60,000 rpm
Speed Ranges I	100 – 6000 rpm
Speed Ranges II	1000 – 60,000 rpm
Accuracy	± 0.5%
Revolution	± 1.5mV
Zero Offset	± 3mV Maximum
Light Source	Minilamp
Optical Range	50mm – 1000mm
Optical Angle	± 45 degree to reflective marker
Voltage Output	0 – 6vdc
Connections	Coiled cable with 2 x 4mm plugs fitted
Contact Adaptor	Optional Accessories
Power Requirements	Batteries not included, 4 x AAA batteries are required

Compact A2108/LSR Tachometer

Speed Range I	100 – 6000 rpm
Speed Range II	1000 – 60,000 rpm
Range Select	Up Arrow = I, Down arrow = II
Output Signal	Analogue 0.1-6vdc, both ranges
Accuracy	± 0.5%
Revolution	1.5mV
Zero Offset	± 3mV Maximum
Update Time	Time of one revolution or 1 millisecond
Controls	2 x Press to Measure buttons One Continuous Mode button
Auto Off	Auto shutdown if inactive for 5 minutes
Optical Range	50mm – 2000mm
Optical Angle	± 80 degree to reflective marker
Light Source	Red Laser Class II 635nm WARNING LASER RADIATION, DO NOT STARE INTO BEAM, CLASS II LASER PRODUCT
On Target Indicator	Yes
Signal Indicator	Yes
Power Requirements	Batteries not included, 4 x AAA batteries are required

Compact A2108/LSR/232 Tachometer

Speed Range	100 – 60,000 rpm continuous
Revolution	± 1 rpm
Accuracy	± 0.1%
Connections	RS-232 Serial
Capture Mode	0.1 seconds
Controls	On, Invert, Capture, Ratio
Optical Range	50mm – 2000mm
Optical Angle	± 80 degree to reflective marker
Light Source	Red Laser Class II 635nm WARNING LASER RADIATION, DO NOT STARE INTO BEAM, CLASS II LASER PRODUCT
On Target Indicator	Yes
Signal Indicator	Yes
Power Requirements	Batteries not included, 4 x AAA batteries are required

line
Downloads
line

Compact A2108 Tachometer With Analog Output - Instruction Manual

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Compact A2108 Tachometer with Analog Output View Model Details

$539.00

Compact A2108/LSR Advent Laser Tachometer with DA Output View Model Details

$765.00

Compact A2108/LSR/232 Non Contact Tachometer with RS232 Output, NO DISPLAY, ASCII Data Output In Hexadecimal Format View Model Details

$737.00

Recommended Accessories

PRICE

NISTCAL - NIST Traceable Calibration Certificate

$144.00

Compact A2100/03 - Mini Tripod Stand

$144.00

Compact A2100/09 - Advent 2-Way Panhead Tripod

$240.00

205T - Reflective Tape, 1x7 Inch Strip - TAPE

$84.00

Compact A2100/01 - Advent Contact Adaptor

$210.00

Reflective Tab Sheet, 35 1/2" x 1/2" Squares - TAB

$60.00

Output Cable for A2103/LSR/001, 4-Pin DIN to BNC, 2 meter length

$42.00
