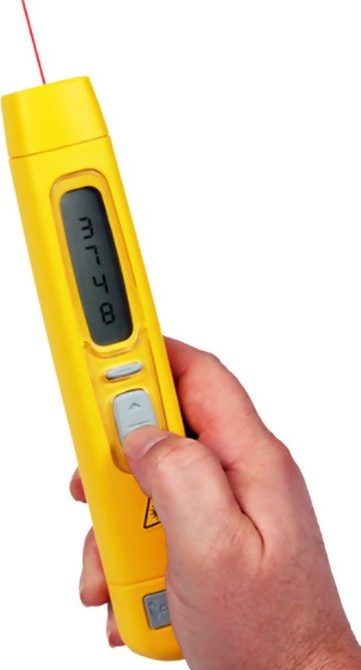

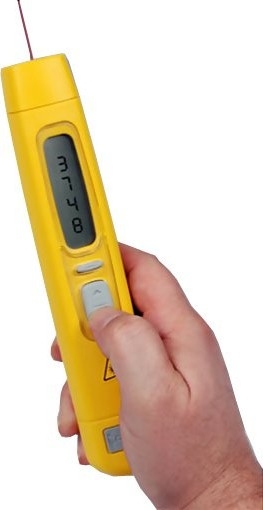

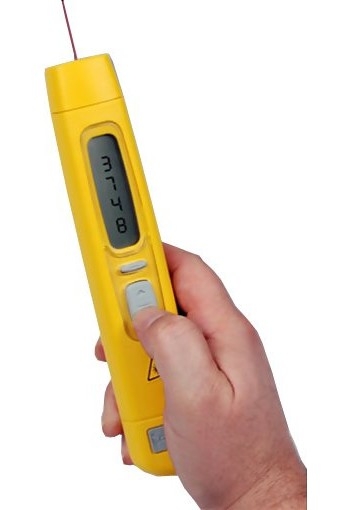

Compact ET-2109LSR Intrinsically Safe Handheld Tachometer

---

Type: Combination Contact & Non-Contact

---

Measuring Range:
Non-Contact - 3.00 - 99,999 rpm
Contact - 3.00 - 99,999 rpm

---

Display Type: LCD

---

Housing Material: High Flow ABS - Metalised

---

Warranty: 1 year

---

The Compact ET-2109LSR Intrinsically Safe Handheld Tachometer explosion proof handheld tachometer is certified EEx ia IIC T4 - ATEX II 2 G to allow for use in a wide range of hazardous environments including petrochemical, Gas & volatile materials processing industries.

The ET-2109LSR is not certified for use in Mines

Kit Contents

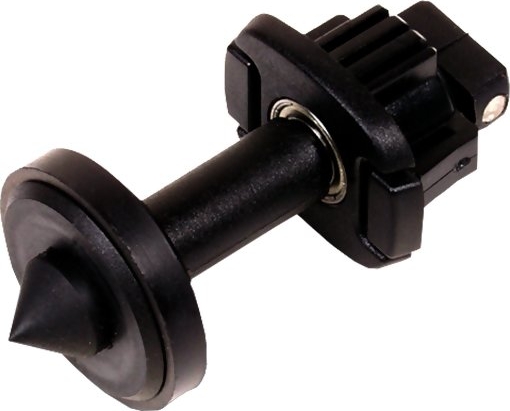

Compact ET-2109LSR Intrinsically Safe Handheld Tachometer Reflective tape Contact adapter Calibration certificate 4 AA batteries Instruction Manual Carrying Case

Features

• Explosion-Proof Housing
• Vertical display with 180° inversion capability
• Includes calibration certificate
• Memory holds last reading for 1 minute

Specifications

Measuring Range	3.0 - 99,999 rpm 0.3 - 1,500.0 Meters or Yards/min (4,500 ft/min) or seconds
Resolution	.001 rpm
Accuracy	0.05% ±1 digit
Optical Sensing Range	2 - 80" / 50 - 2000mm
Update Time	0.8 sec
Capture Mode	0.1 Sec
Count	0-99999 revs or length in linear
Time Interval	0-99999 seconds (auto)
Memory Hold	Holds last reading for 1 minute
On Target Indicator	Yes
Housing Material	High Flow ABS - Metalised
Batteries	4xAAA supplied
Dimensions	21 L x 4 W x 3.5 D - cm
Measuring Wheel	Included, 0.1 meter circumference
Weight (kit)	0.4 Kg
Warranty	1 year
Sensing Distance	1 meter (39 inches)
Battery Life	6 hours continuous (shorter when using rechargeable type
Display Update Rate	0.8 seconds/update (0.1 sec for Max Value capture)

Downloads

Compact ET-2109LSR Intrinsically Safe Handheld Tachometer - Certification

Compact ET-2109LSR Intrinsically Safe Handheld Tachometer - Instruction Manual

Compact ET-2109LSR Intrinsically Safe Handheld Tachometer - Sample NIST
