Name: Shimpo DT-105A - DT-107A Handheld Tachometers
Brand: Shimpo
SKU: 61

Shimpo DT-105A - DT-107A Handheld Tachometers

See More Handheld Tachometers

Contact Only Tachometer

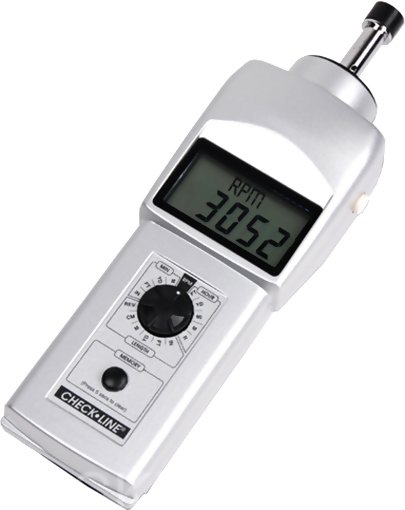

DT-105A (LCD Model)
DT-107A (LED Model)
DT-107A-12 (LED Model)

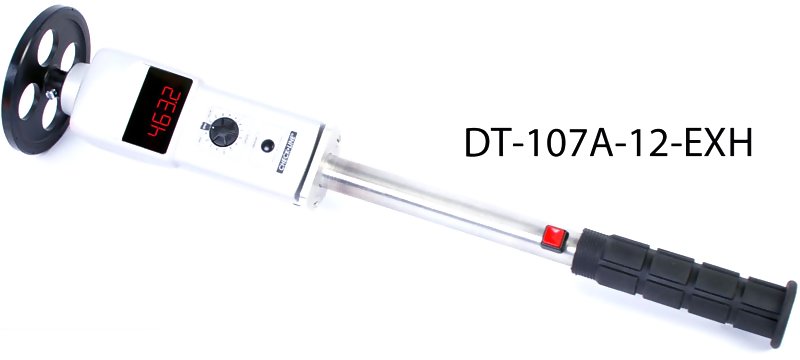

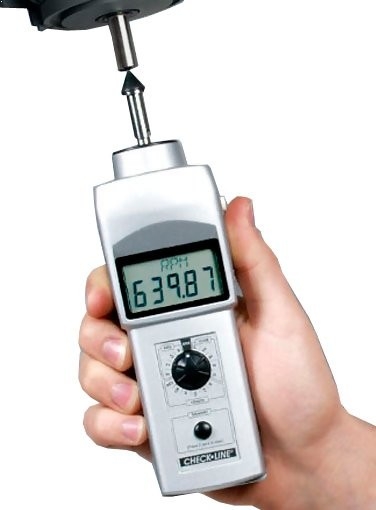

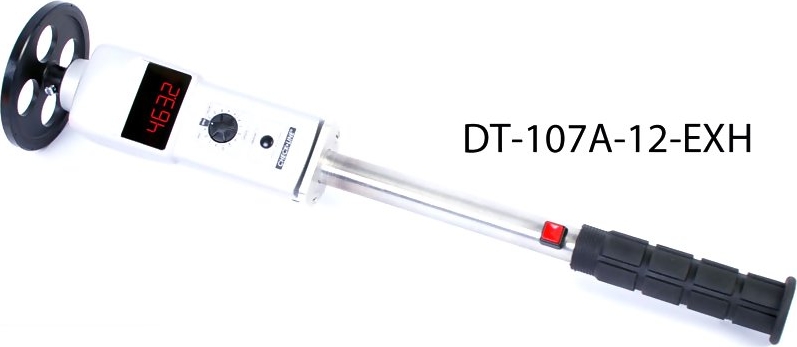

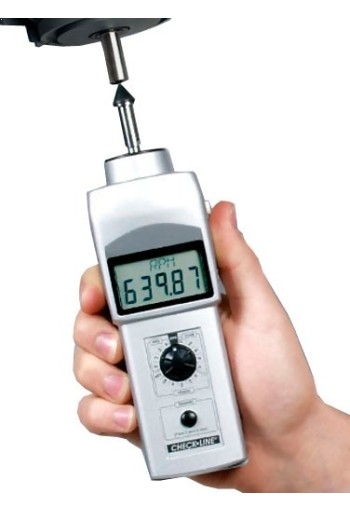

The Shimpo Handheld Tachometer accurately measures rotational and surface speed, as well as length. Built-in selector switch permits the user to display readings in a wide variety of engineering units. The Shimpo DT-105A - DT-107A Handheld Tachometers includes a 12" (30 cm) circumference measuring wheel which is offered for safer and easier surface speed measurement by keeping the users hand farther from the moving surface and slowing down the rotational speed.

line

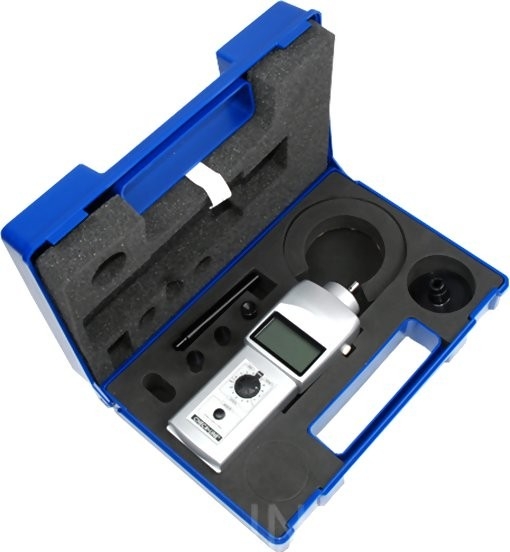

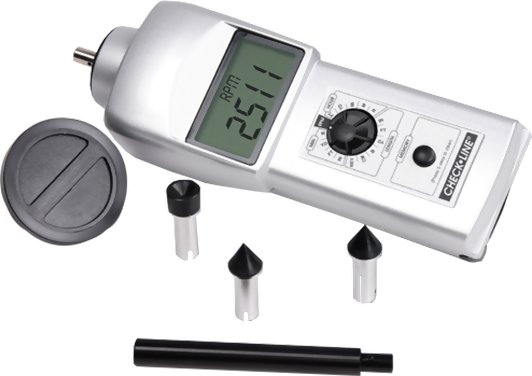

Kit Contents
line

Shimpo DT-105A - DT-107A Handheld Tachometers
6" circumference surface speed wheel
2 two cone tip adapters
Funnel tip adapter
Shaft extension
2 two AA batteries
Operating instruction manual
Carrying case

line
Features
line

Built-in memory for last, maximum, minimum and 10 separate readings
Rugged cast aluminum housing
Includes NIST calibration Certificate

line
Specifications
line

Display Range	0.10 to 25,000 rpm with floating decimal
Accuracy	0.10 to 999.99 rpm: ±0.06 rpm 1,000.0 to 9,999.9 rpm: ±0.6 rpm 10,000 to 25,000 rpm: ±0.006% rpm

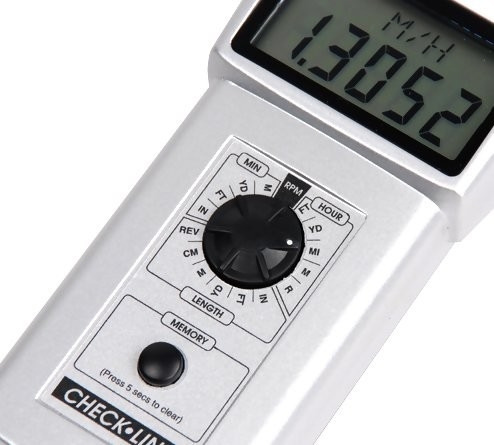

Measurement Units
per Minute	Revolutions, Inches, Feet, Yards, Meters
per Hour	Revolutions, Inches, Feet, Yards, Meters
Total	Revolutions, Inches, Feet, Yards, Centimeter, Meters
per Second	Revolutions, Inches, Feet, Yards, Meters (optional, inquire)
Memory System	13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements)
Over-Range Indicator	Flashing numerals
Detection	Optical coupler, 60 pulses/rev
Update Time	1 second (typical)
Batteries	Size: 2 1.5 V AA Life: Approx. 65 hrs. (DT-105A) Life: Approx. 40 hrs. (DT-107A)
Low Voltage Indicator	Flashing "LO BAT" display (DT-105A) " B" display (DT-107A)
Operating Temp	32° to 113° F (0 to 45° C)
Weight	0.9 pounds (400 grams)
Dimensions	7.3" L x 2.4" W x 1.8" H
Warranty	1 year
Accessories	2 cone adapters, 1 funnel adapter, 3-1/2" extension shaft, 1 surface speed wheel (6" circumference), carrying case, operating instructions

line
Downloads
line

Shimpo DT-105A - DT-107A Handheld Tachometers - Data Sheet

Shimpo DT-105A - DT-107A Handheld Tachometers - Instruction Manual

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Shimpo DT-105A Digital Contact Tachometer with LCD Display and 6" Circumference Wheel View Model Details

$270.00

Shimpo DT-107A Digital Contact Tachometer with LED Display and 6" Circumference Wheel View Model Details

$270.00

Shimpo DT-105A-12 Digital Contact Tachometer with LCD Display and 12" Circumference Wheel View Model Details

$325.00

Shimpo DT-107A-12 Digital Contact Tachometer with LED Display and 12" Circumference Wheel View Model Details

$325.00

Recommended Accessories

PRICE

DTCA - Spare cone tip for DT-105/7A

$12.00

DTFA - Spare funnel tip for DT-105/7A

$12.00

DTSX - Spare shaft extension for DT-105/7A

$18.00

DT6 - Spare 6 inch wheel for DT-105/7A

$36.00

DT12 - Spare 12 inch wheel for DT-105/7A-12

$60.00

LMA-3 - 12 in Circumference Knurled Aluminum Measuring Wheel

$234.00

FPM-12-CBL 12 inch Wheel for belts

$312.00

DT-TRI-HD - Tripod for Tachometers and Stroboscopes

$42.00

BATT-RC4AA-WC - 4-pack 2300mAh AA Ni-MH Rechargeable Batteries and Charger Kit

$42.00
