Shimpo DT-205L / DT-207L Handheld Laser Tachometers

See More Handheld Tachometers

This product has been replaced by the DT-205LR

Replaced by Shimpo DT-205LR

NOTE: "L" models have been replaced with "LR" models featuring smaller & brighter "Laser dot"

Type: Combination Contact & Non-Contact Tachometer

Measuring Range:
Non-Contact - 1.00 - 99,999 rpm
Contact - 1.00 - 25,000 rpm

Display Type: LCD (DT-205LR) or LED (DT-207LR)
NSN: 6680-01-378-6490

Housing Material: Metal
Warranty: 1 year

Replaced by model DT-205LR

4 Models:
DT-205LR LCD Display with 6" Circum Measuring Wheel
DT-205LR-12 LCD Display with 12" Circum Measuring Wheel
DT-207LR LED Display with 6" Circum Measuring Wheel
DT-207LR-12 LED Display with 12" Circum Measuring Wheel

NSN: 6680-01-378-6490

NOTE: DT-205L & DT-207L models have been replaced by the new "LR" models featuring smaller & brighter "Laser dot"

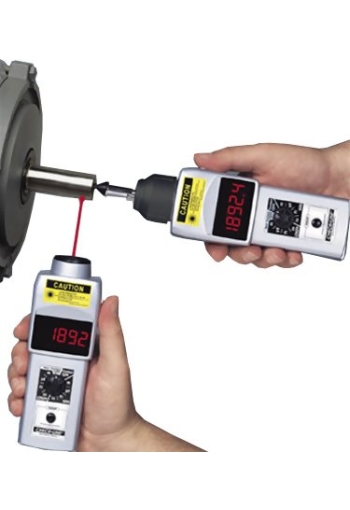

The CHECK-LINE DT-205LR & DT-207LR handheld tachometer combine the best features found in both contact and non-contact tachometers for the accurate measurement of rpm, surface speed and length. The screw-in contact adapter makes it quick & easy to convert from non-contact to contact operation.

line
Features
line

High-precision laser measures from distances up to 14 feet
Includes Traceable calibration Certificate
Built-in memory for last, maximum, minimum and 10 separate readings
Includes 6" circumference surface speed wheel
LCD Version for use in sunlight and for longest battery life
LED version for use in poorly lit or dark environments

line

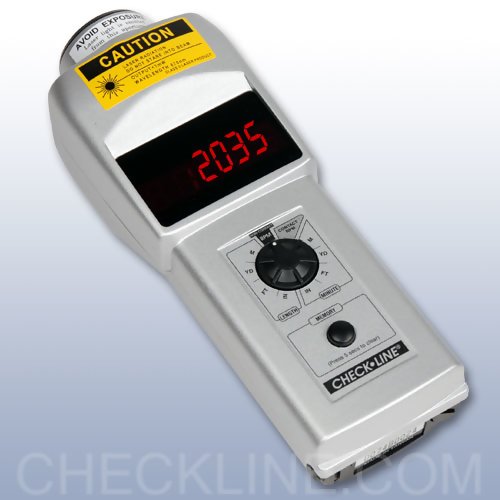

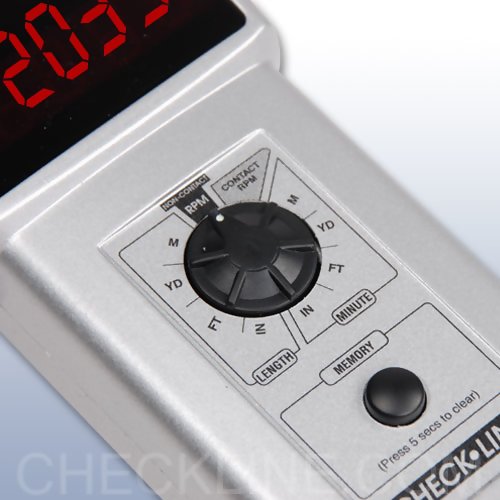

Photo Gallery
line

line
LCD Display vs LED Display
line

ABQ

line
Accessories
line

Click here for Tachometer Accessories

line
Complete Kit
line

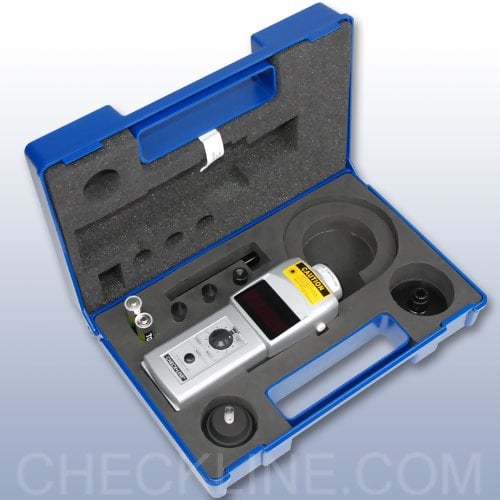

All models are supplied as a complete kit including the tachometer, reflective tape, screw-in contact adapter, 2 cone tips, funnel tip, shaft extension, surface speed wheel, two AA batteries and an operating instruction manual - all supplied in a foam-fitted carrying case.

complete kit

Note: On DT-205LR-12 and DT-207LR-12 models 12" circumference wheel is supplied instead of 6" version

line
Specifications
line

Measuring Range	Non-Contact - 6 to 99,999 rpm Contact - 0.8 to 25,000 rpm
Accuracy	6 to 8,299 rpm: ±1 rpm 8,300 to 24,999 rpm: ±2 rpm 25,000 to 99,999 rpm: ±0.006% rpm
Display	DT-205LR (LCD MODEL) 5 digit 0.47" (12mm) high LCD DT-207LR (LED MODEL) 5 digit 0.4" (10mm) high LED
Measuring Units
per Minute	Revolutions, Meters, Yards, Feet, Inches
Total Length	Meters, Yards, Feet, Inches
Measuring Distance	14 feet (5.2 m) maximum
Detection	Laser Diode, Class II
Memory	13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements)
Over-Range Indicator	Flashing numerals
Update Time	1 second (typical)
Batteries	2 - 1.5 V AA
Battery Life	DT-205LR Approx 40 hrs DT-207LR Approx 25 hrs
Operating Temp	32° to 113° F (0 to 45° C)
Construction	Die-cast aluminum housing
Weight	0.8 pounds (365 grams)
Dimensions	6.6" L x 2.4" W x 1.8" H (167mm x 61mm x 45.7)
Warranty	1 year
Accessories Included	Reflective tape, cone adapter, surface speed wheel (6" cir.), 200L contact adapter and carrying case
