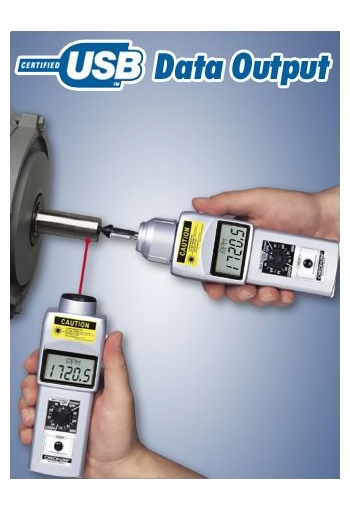

Shimpo DT-209X Handheld Laser Tachometer

See More Handheld Tachometers

The DT-209X is no longer available. There is no replacement / alternative model currently available.

Type: Combination Contact & Non-Contact Tachometer with USB Data Output

Measuring Range:
Non-Contact - 1.00 - 99,999 rpm
Contact - 1.00 - 25,000 rpm

Display Type: LCD

Housing Material: Metal

Warranty: 1 year

The new Shimpo DT-209X Handheld Laser Tachometer with Memory & Data-Output offers outstanding features and value in a compact rugged package.

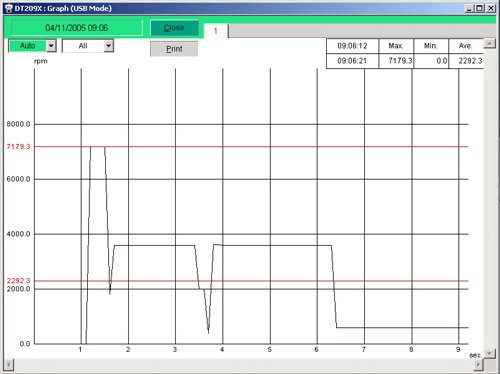

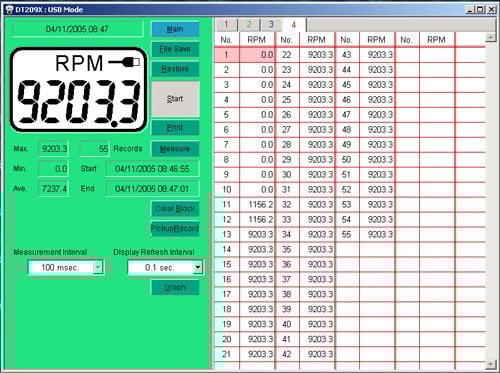

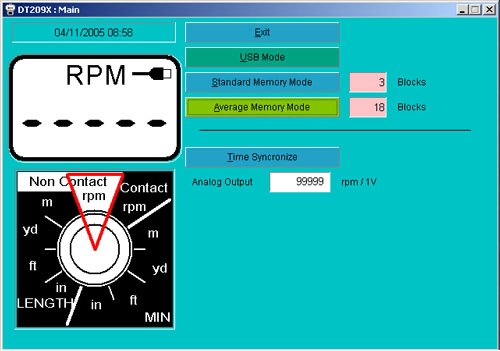

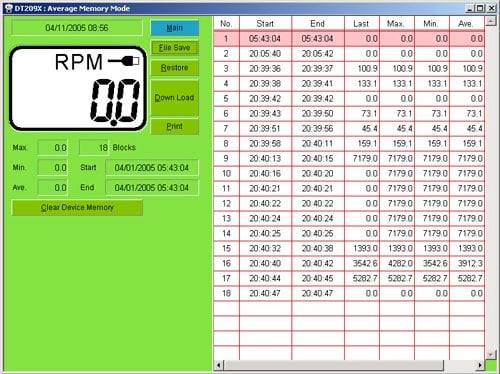

Enhanced download features and online controls, showing trending and real time data via USB communication; you can easily access your data by the free software included in each DT-209X package. USB and Analog output included.

line
Features
line

High-precision laser measures from distances up to 14 feet
Includes NIST calibration Certificate
Built-in memory for last, maximum, minimum and 10 separate readings
Includes USB cable and software
Includes 6" circumference surface speed wheel

line

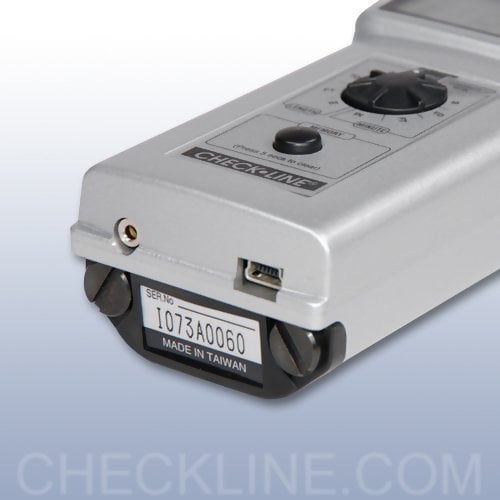

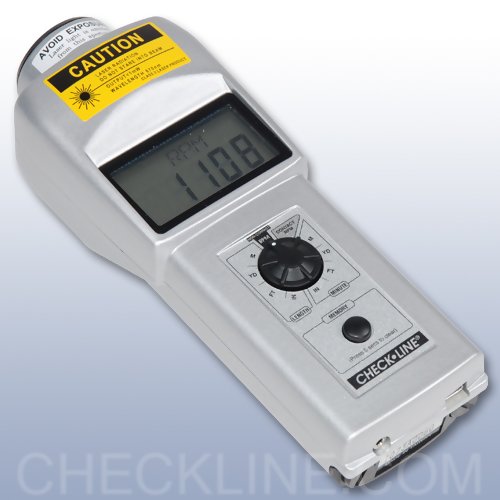

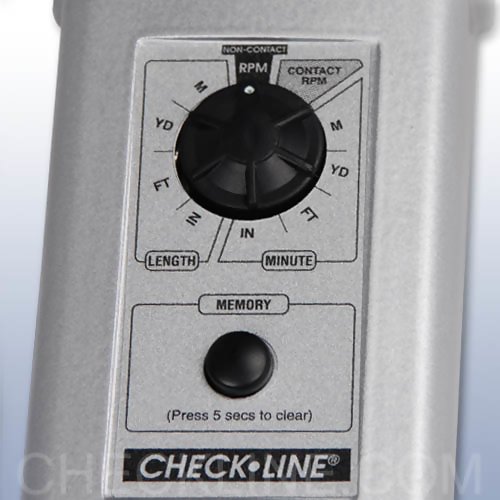

Photo Gallery
line

line

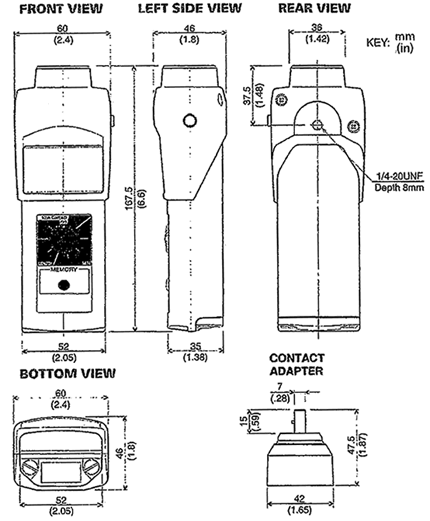

Dimensions
line

dimensions

line
Specifications
line

Measuring Range	Non-Contact - 6 to 99,999 rpm Contact - 0.8 to 25,000 rpm
Accuracy	6 to 8,299 rpm: ±1 rpm 8,300 to 24,999 rpm: ±2 rpm 25,000 to 99,999 rpm: ±0.006% rpm
Display	LCD - 5 digit 0.47" (12mm) high LCD
Measuring Units
per Minute	Revolutions, Meters, Yards, Feet, Inches
Total Length	Meters, Yards, Feet, Inches
Measuring Distance	14 feet (5.2 m) maximum
Measuring Modes	USB mode; PC online measuring / standard (STD) mode; Standard measuring /
Detection	Laser Diode, Class II
Memory	STD mode; 24 blocks, 10 points/block (Total; 240 data) AVE mode; 30 blocks
Over-Range Indicator	Flashing numerals
Update Time	1 second (typical)
Analog Output	Max. 1 V
USB Communication	USB 1.1
Batteries	2 - 1.5 V AA
Battery Life	15 Hours Approximately
Operating Temp	32° to 113° F (0 to 45° C)
Construction	Die-cast aluminum housing
Weight	0.8 pounds (365 grams)
Dimensions	6.6" L x 2.4" W x 1.8" H (167mm x 61mm x 45.7)
Warranty	1 year
Accessories Included	Reflective tape, cone adapter, surface speed wheel (6" cir.), 200L contact adapter and carrying case

line

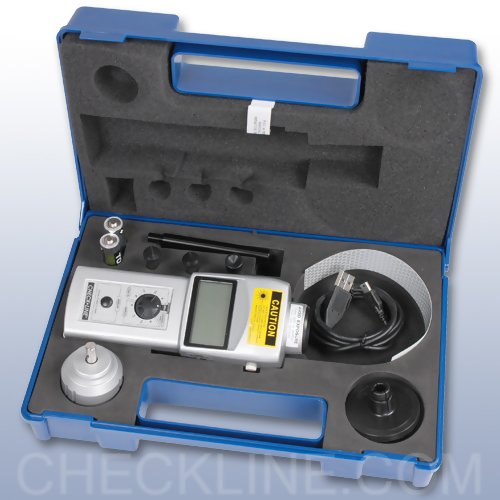

Complete Kit
line

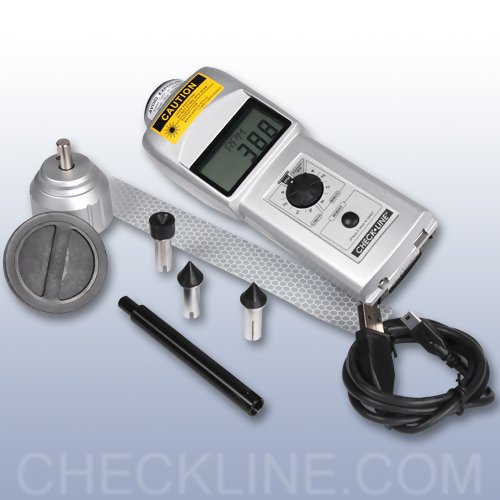

The DT-209X is supplied as a complete kit including the tachometer, contact adapter, reflective tape, 2 cone adapters, funnel adapter, 3 1/2” Extension shaft, 6” cir. measuring wheel, NIST certificate, USB cable and Application software in a rugged carrying case

complete kit
