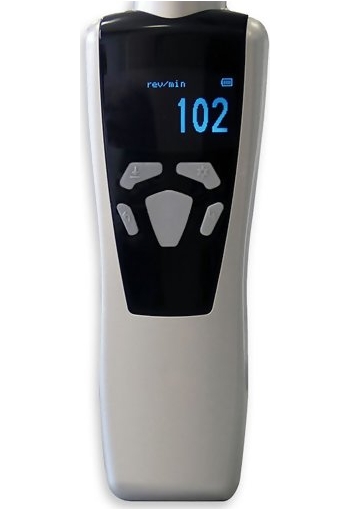

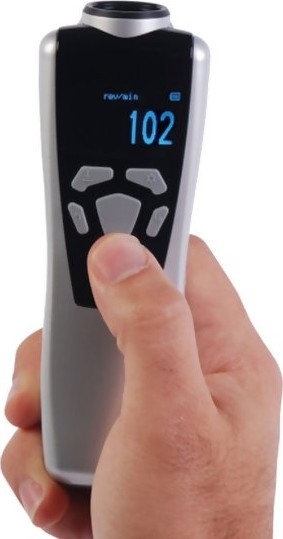

Shimpo DT-2100 Tachometer with USB Output, Combination Contact / Non-Contact

Measuring Range: Non-Contact - 1.00 - 99,999 rpm | Contact - 1.00 - 25,000 rpm

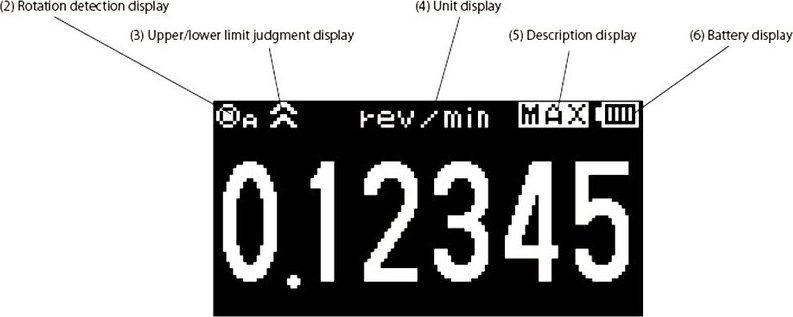

The Shimpo DT-2100 Tachometer with USB Output is an advanced combination contact / non-contact hand-held tachometer. The DT-2100 features data-logging, USB output and a programmable scaling feature to offset RPM according to application variables. It features a backlit LED Display with upper/lower limit icons and a unique X-Y Graphic mode. Additional display modes unique to the DT-2100 is the "Needle Sweep" and Bar Graph" offers the user a choice of how to view the data. The display can also be inverted to optimize the viewing angle.

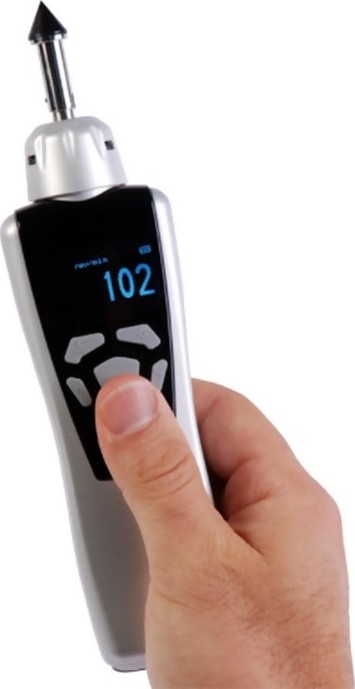

In non-contact mode the tachometer measures RPM up to 99,999 RPM at distances up to 13 feet or 500 cm. The DT-2100 can also measure contact RPM, surface speed, or length using the supplied screw-on adapter.

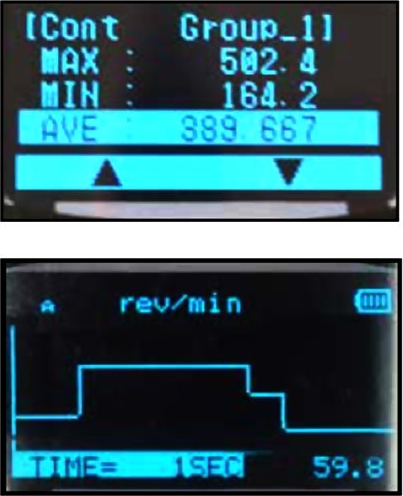

Data logging can be set for single point or continuous logging. Single data points as well as statistics (Max, Min, Average) can be stored in the built-in memory and recalled to the display. Often users need to adjust machinery during testing, with the DT-2100 you can mount it on a tripod, select continuous logging and adjust machinery as necessary. After the test, you can easily review the data on the DT-2100's display or download to a computer using the optional PC Software.

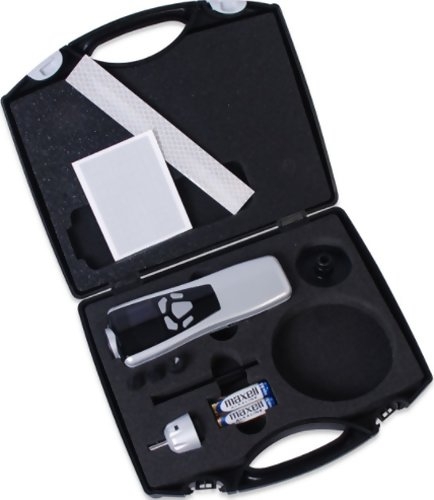

Kit Contents

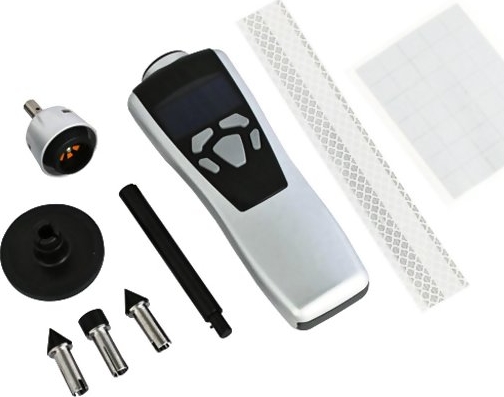

Shimpo DT-2100 Tachometer with USB Output 2 cone adapters Funnel adapter 3.5” extension shaft Surface speed wheel (6” circumference) Reflective tape 2 AA batteries Contact adapter Carrying case

Features

• Data Logging with Continous, Single Unit or Statistics modes
• View data and statistics on tachometer display or with optional Windows software
• Built-in Memory with USB Data Output
• Powerful laser for non-contact measurement 2” to 13.1’ (5 to 400 cm)
• Non-Contact length measuring mode (requires reflective tape or edge of roller)
• Programmable multiplier to convert reading based on wheel diameter, gear ratios, etc...
• On-screen hi-lo limits for pass/fail analysis
• Auto-detection of contact adapter
• Reversible Display
• 1/4-20 Threaded Insert on bottom of housing for fixed-mounting or use on Tripod

Specifications

Downloads

Shimpo DT-2100 Tachometer with USB Output - Instruction Manual

Shimpo DT-2100 Tachometer with USB Output - Software Manual

Shimpo DT-2100 Tachometer with USB Output - Tachometer Manual

Shimpo DT-2100 Tachometer with USB Output - Dimensional Drawing
