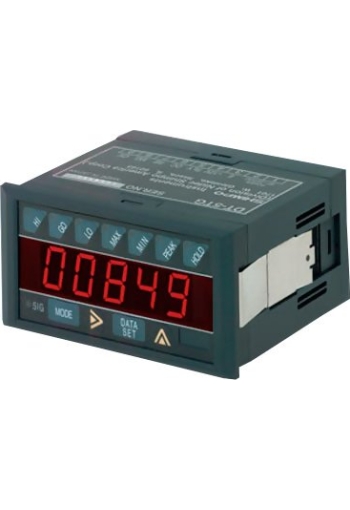

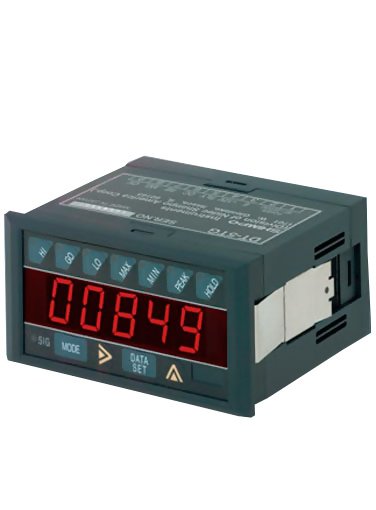

Shimpo DT-5TG Multi-Purpose Panel Tachometer

See More Handheld Tachometers

REPLACED BY DT-5TXR

Set-up data is easily entered via front panel keys and is not lost during power failures

Accepts various modules; works with a variety of sensors

DT-5TG-0 - NO LONGER AVAILABLE
DT-5TG-0-DC - Panel Tach Without module connectors, 24V DC-Powered

Accurately display RPM, surface speed, flow or production data scaled to any engineering units.

An additional mode displays the elapsed time required to travel a fixed distance at a pre-selected speed for baking and similar conveyor applications.

line
Photo Gallery
line

User-set Hi and Lo limits
Snap-in installation without tools, brackets or screws mounted into panel cutout 92x45 mm
Fully scalable to set value in desired engineering units
Highly accurate
User-set display update time, decimal points and scalable to any engineering units
Provides 12 V DC to power an external sensor
Set-up data is easily entered via front panel keys and is not lost during power failures
Powered by 24V DC
Self-testing ability

line
Features
line

line
Plug-In Modules
line

P/N	Type	Description
FV	ANALOG OUTPUT for recording and data acquisition	Provides 0-10 V DC or 4-20 mA output proportional to the input frequency. A 12-bit D/A converter is used.
CP	RELAY CONTACT for alarms and control systems	Provides 3 separate SPST relay contacts working in conjunction with the HI, GO & LO LED's on the front panel.

line
Dimensions
line

dimensions

line
Specifications
line

Operating Mode	Rate Measurement	Elapse Time Counter
Display Selections	0-9.9999	99.99 seconds
	0-99.999	99 minutes 59 seconds
	0-999.99	99 hours 59 minutes
	0-9,999.9
	0-99,999
Measuring Range	10-99,999 rpm (@ 1 pulse per rev.)
	0.2-30,000 rpm (@ 60 pulses per rev.)
Display	5-digit LED, 0.56" (14.2 Omm) high
Accuracy	± 0.008% or ± 1 digit
Number of PPR	1-9,999 pulses/rev (selectable)
Input Signal Maximum Frequency	Sine wave: 10kHz
	Square wave: 30kHz
	Open Collector: 30kHz
	Contact closure: 20Hz
Input Signal Amplitude	Sine wave: 0.3-30 V P-P
	Square wave: LO: 0-1.5 V, HI: 4-30 V
Input Impedance	10 k-Ohms for magnetic pickup, rotary pulse generator and proximity switch
Voltage Output	12 V DC ±5% (50 mA max.) to power sensors
Applicable Sensors	Rotary pulse generator, magnetic pickup, proximity switch, retro-reflective optical
Ambient Temperature	32º - 113º F (0-45º C)
Power Consumption	1 W (5 W when optional modules are used)
Voltage Requirement	85-265 V AC, 50/60Hz
	Option 24VDC for 9-35V DC
Dimensions	3.46" L x 1.88" H x 3.78" D (8 L x 48 H x 96 D mm) includes bezel and fits 1/8 DIN cutout
Weight	0.55 lbs. (250 g)
Cutout Dimensions	92W X 45H (mm)
