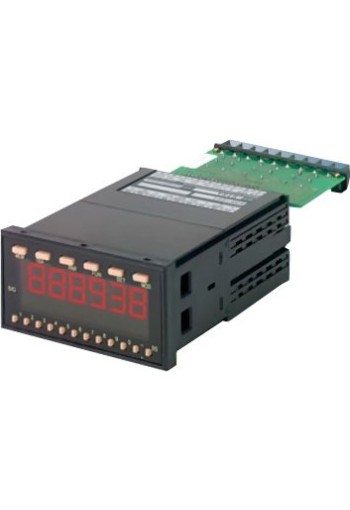

Shimpo DT-5TXR Panel Tachometer with Optional Output Modules

See More Handheld Tachometers

Panel Techometer with Optional Output Modules

Highly accurate (± 0.008% ± 1 digit) makes ideal for process control and analysis

Accepts up to two output modules allowing voltage, current, BCD, NPN & relay output combinations for control or remote process monitoring

The Shimpo DT-5TXR Panel Tachometer with Optional Output Modules with optional output Modules is an economical unit for speed and process time monitoring when combined with a compatible in-line sensor. Loaded with features found in more expensive units, the DT-5TXR Panel Meter is extremely versatile with selectable inputs. The DT-5TXR is fully scalable and possesses three selectable modes allowing it to measure RPM/linear speed/rate, elapsed time and process time. Each panel meter accepts a variety of signal inputs from any sensor providing an NPN, contact, sine wave, or square wave such as pulse generators, proximity sensors, photoelectric sensors, magnetic sensors and NPN OC transistors. Typical applications can range from machining operation timing, rate of change monitoring such as on a conveyor, elapsed time of oven curing etc. with any variety of compatible sensor inputs desired. The DT-5TXR panel meter also accepts various output modules, enabling it to output data for analysis, record keeping or assist in controlling the process through a separate control device. Up to two modules can be accepted simultaneously, offering an enormous number of combinations and options.

line
Features
line

Large 6 digit LED display plus two smaller 6 digit secondary displays allow easy viewing from greater distances
Highly accurate (± 0.008% ± 1 digit) makes ideal for process control and analysis
Selectable update time allows operator to speed up/slow down display changes to facilitate process
Selectable decimal point enables higher resolution display potential 1/8 DIN size panel cut out permits easy, industry-standard mounting
Great versatility with multiple sensor input capability in one unit: NPN open collector, contact and square or sine wave sensor inputs
Accepts up to two output modules allowing voltage, current, BCD, NPN & relay output combinations for control or remote process monitoring
IP66 front cover protection keeps water out, enables usage in compatible plant wash-down operations
Wide power range (85 – 264VAC, 50/60Hz) eliminates need for having to purchase and wire an additional power transformer. Low voltage models available
Scalable programming gives user the flexibility to set up and monitor virtually any process
DC power source output to power compatible sensors saves money by eliminating need for separate power supply
Front cover protection eliminates accidental bumping of keypad to incorrect program

line
Plug-In Modules
line

Module	Description
DOP-BCD	BCD output module, 36 Pin Connection
DOP-CPTR	Relay output module, terminal block connection
DOP-FVC	Analog output module (4-20mA & 0-1, 0-10, 1-5 VDC), 36-pin connection
DOP-FVTR	Analog output module (4-20mA & 0-1, 0-10, 1-5 VDC), terminal block connection
DOP-RMTR	Ratio input module, terminal block connection
DOP-TRC	NPN open collector output module, 36 pin connection
DOP-TRTR	NPN open collector output module, terminal block connection

line
Display
line

	Designation	Function
1	Memory Button	Activates memory function
2	Memory Indicator	ON when memory function is activated
3	Teaching Button	Quick scaling setup mode
4	Teaching Indicator	ON when in quick scaling setup mode
5	Parameter Button	For parameter setup
6	Function Button	For function setup
7	Set Button	Sets parameter’s functions
8	Mode Button	Mode selection
9	Unit Decal	Area for decal
10	Primary Display	Displays units of measurement
11	Secondary Display B	Secondary display
12	Backspace Button	Backspace for corrections
13	Negative Sign/Decimal Point Button	Negative sign setting/decimal point shift
14	Numeric Button	For various functions
15	Secondary Display A	Secondary display
16	Signal Indicator	Blinking when signal is present
17	Comparator Indicator	Indicates comparator condition

line
Specifications
line

Measuring Range	10 - 99,999 rpm (at 1 p/r) 0.2 - 30,000 rpm (at 60 p/r)
Display Range	Tachometer/Rate Meter: 0 - 999999 with selectable decimal point Elapsed Time: 0:00:00 - 9:59:59 or 0.00 - 999.99 sec. Process Time: 0:00:00 - 0:59:59 or 0.00 - 999.99 sec.
Scalable	Yes (with outputs, see modules)
Accuracy	Tachometer/Rate Meter & Elapsed Time: ± 0.008 % ± 1 digit Process Time: ± 0.008 % ± 1 digit
Display Update Time	0.2, 0.5, 1, 2, 5, 10, 15, 30, 60 sec.
Input No. of P/R	1 to 9,999 (programmable)
Input Signal Characteristics	NPN open collector input: max. frequency 100 kHz / Contact input: max. frequency 20 Hz / Square wave input: max. frequency 30 kHz - Sine wave input (magnetic pickup): max. frequency 10 kHz
Sensor Power Supply	12 VDC (150 mA)
Power Requirement	85 - 264 VAC (50/60 Hz) Optional (9 - 35 VDC at 1 W also available)
Ambient Temperature	32° - 113° F (0 - 45° C)
Dimensions	5.27" x 3.78" x 1.89" (134 x 96 x 48 mm)
Product Weight	0.66 lb (300 g)
Package Weight	0.95 lb (100% g)
Warranty	1-Year
Included Accessories	Mounting adapters & screws, decal sheet
