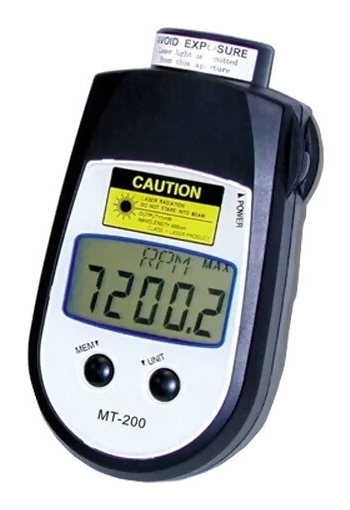

Shimpo MT-200 Combination Contact / Non-Contact Pocket Tachometer
Multiple measurement types in both contact or non-contact modes: total revolutions (rev); revolutions per minute (rpm); surface speed: m/min, y/min, ft/min, in/min; and length: meters, yards, feet and inches
Non-contact measurements up to 23.6” (60 cm) away

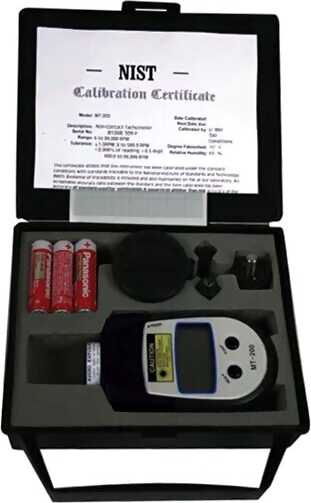

The Shimpo MT-200 Combination Contact/Non-Contact Pocket Tachometer with microprocessor technology possesses the precision of the standard SHIMPO Tachometer line, yet within a compact, pocket-style enclosure. These battery-operated tachometers feature the same rugged, high quality components that have made SHIMPO tachometers the benchmark in the industry. The MT-200 provides users with the capabilities of measuring and recording speeds of rotational, linear and surface plus total length in both contact or non-contact modes. The user-friendly, value-packed units feature memory storage; quick selection unit’s button; length functions; retrieval of last, maximum and minimum values; plus each unit comes standard with a free N.I.S.T. calibration certificate. Each unit ships in a protective carrying case which includes a cone adapter, funnel adapter and 6” circumference wheel

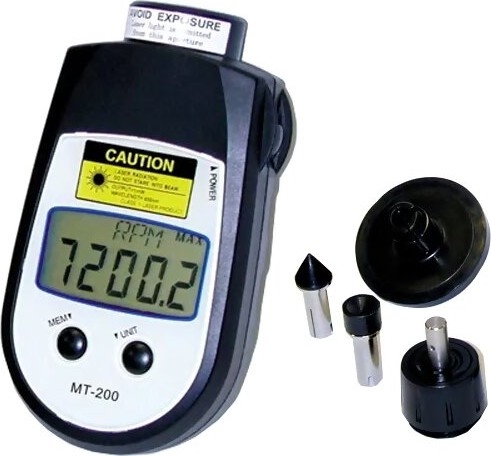

Kit Contents
- Shimpo MT-200 Combination Contact / Non-Contact Pocket Tachometer
- Cone adapter
- Contact adapter
- Funnel adapter
- Master wheel (6” cir.)
- Reflective tape
- NIST certificate
- Three AA Batteries
- Carrying case
- 1 Year Warranty
| |
Features
- Multiple measurement types in both contact or non-contact modes: total revolutions (rev); revolutions per minute (rpm); surface speed: m/min, y/min, ft/min, in/min; and length: meters, yards, feet and inches
- Non-contact measurements up to 23.6” (60 cm) away
- Compact, pocket-size design fits easily in the palm of the hand
- Memory automatically stores minimum, maximum and last. Plus, 10 user stored readings of the process can also be recorded
- Long battery-life enables continuous operation
- Instant conversion of units
- Low battery and over range indication
- NIST calibration certificate included with every unit
Specifications
| Display Range | RPM Non-Contact: 6.0 – 99,999 RPM Contact: 6.0 – 25,000 RPM
Revolutions (total) Non-Contact & Contact: 1 – 99,999
Speed Using 6” Cir. Wheel: meters/min: 0.1 – 3,809.8; yards/min: 1.0 – 4,166.4; inch/min: 36 – 99,999; feet/min: 3.0 – 12,499
Length Using 6” Cir. Wheel: meters: 0.2 – 99,999; yards: 0.2 – 99,999; feet: 0.5 – 99,999 |
| Accuracy | Revolution: 6.0 – 599.9 rpm: ±1 rpm ; 600 – 99,999 rpm: ±0.006% ±0.5 digit
Surface Speed, Length: ±0.4% ±1 digit |
| Display | 5 digit 0.47” (12 mm) high LCD |
| Memory System | Readings are stored in memory and retained for 5 minutes (last, max., min., and 10 user logged measurements) |
| Detection | Laser diode |
| Update Time | 1 second (typical) |
| Over Range Indicator | Flashing numerals |
| Power Requirement | 3 AA 1.5V batteries |
| Operating Temperature | 32° – 113°F (0° – 45°C) |
| Construction | ABS Resin housing |
| Product Weight | 0.35 lb (160 g)
0.46 lb ( 210 g) With contact adapter installed |
| Package Weight | 0.85 lb (386 g) |

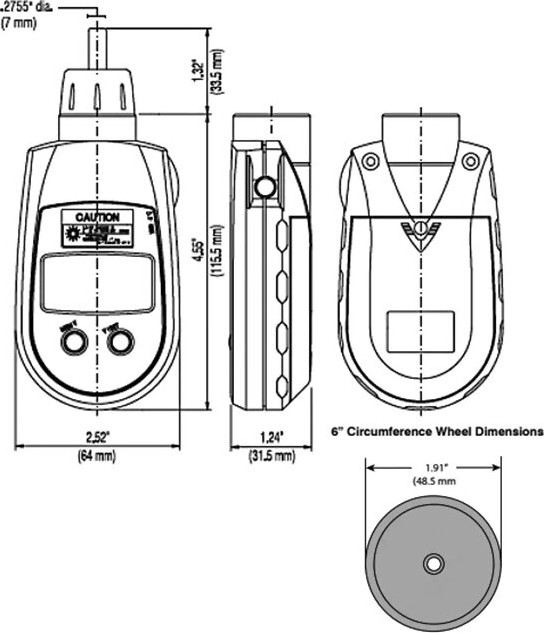

| Dimensions | Main unit: 4.55”L x 2.52”W x 1.24”H (115.5 mm x 64 mm x 31.5 mm)
Overall Length with contact adapter: 5.9” (149 mm) |
