LED Stroboscope Tachometer with Laser for Auto-Sync

---

7 High-Powered LEDs produce peak brightness of 9000 Lux

---

Flash range of 30 - 300,000 fpm (0.5-5000 Hz)

---

IP65-rated housing is extremely water resistant

---

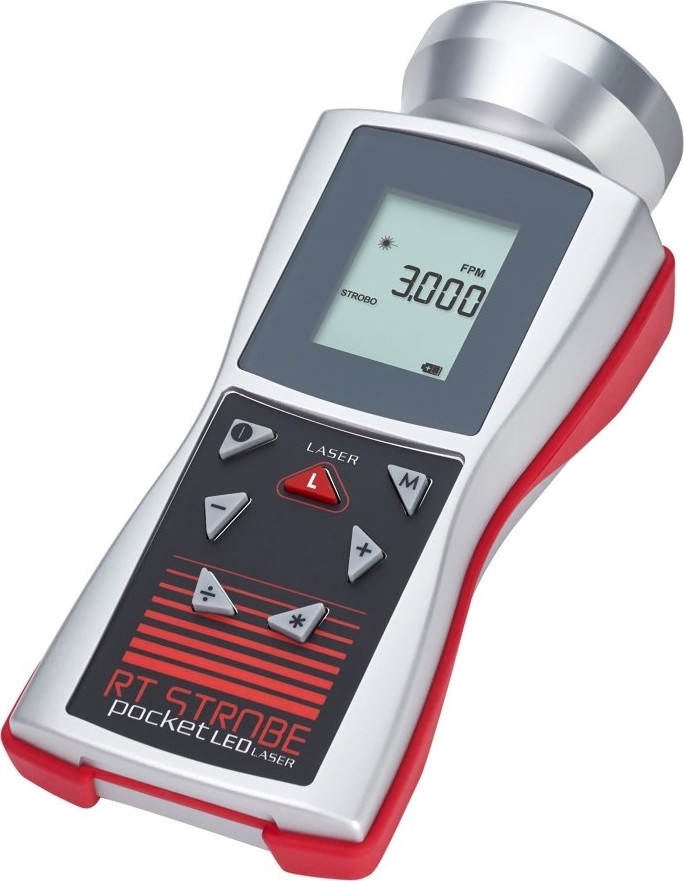

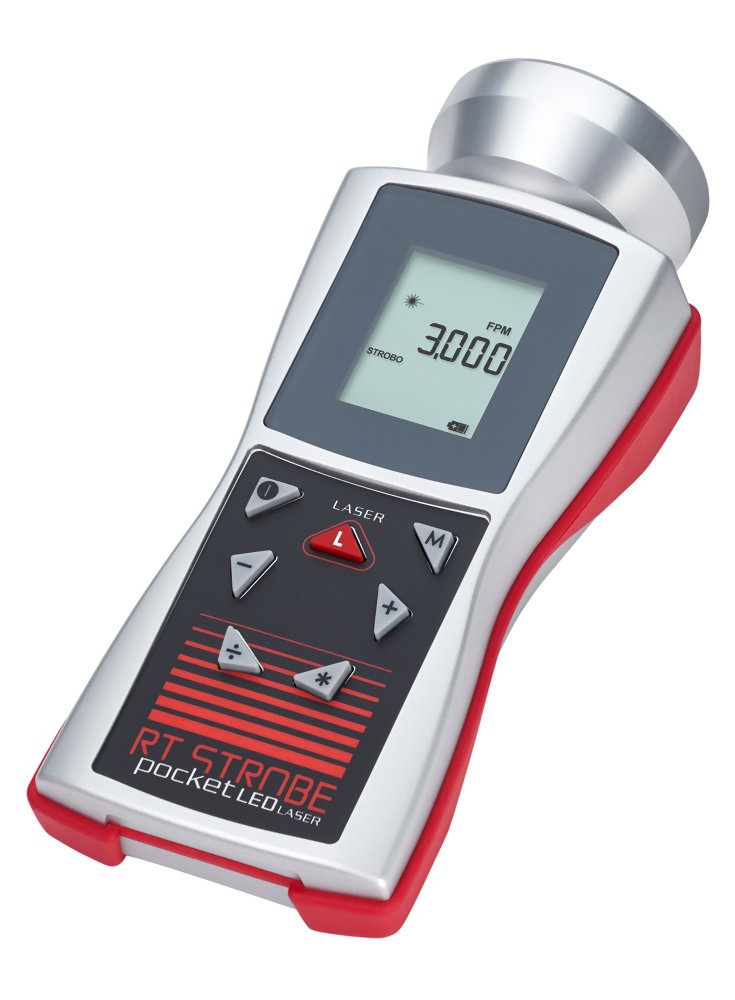

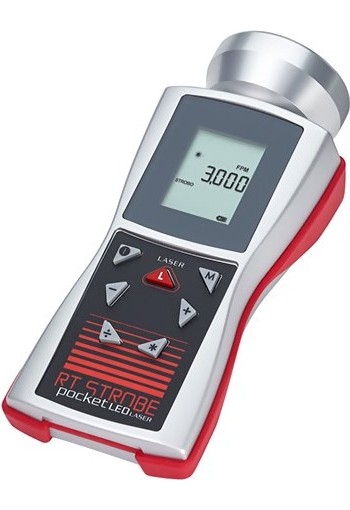

The DS-2000LED-LSR combines the observational features of an LED stroboscope with convenience of a laser tachometer to create the ideal inspection tool. A built-in laser sensor automatically syncs the stroboscope flash rate to the RPM of the rotating object for instant speed measurement while freezing the motion.

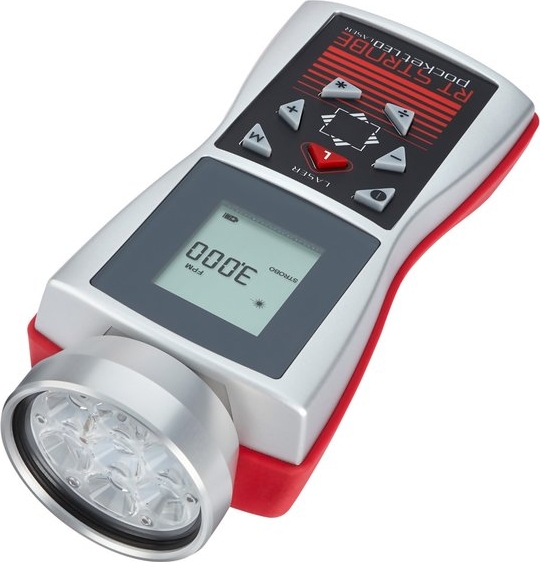

The DS-2000LED-LSR is fitted with six super-bright LEDs mounted in a precision-machined aluminum head with optimized optics, providing up to 9000 lux light output.

The DS-2000LED-LSR-OT model adds an input / output connector for syncing the strobe with an external sensor, vibration analyzer or other equipment.

A built-in laser sensor automatically syncs the stroboscope flash rate to the RPM of the rotating object for instant speed measurement while freezing the motion.

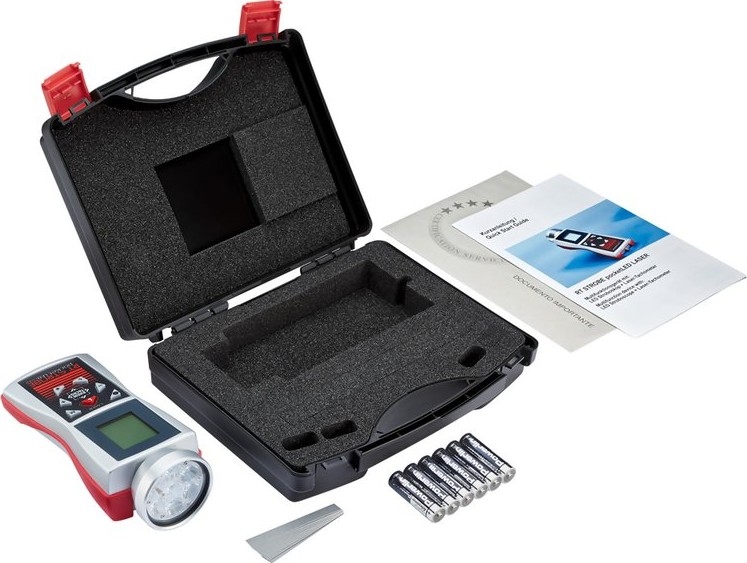

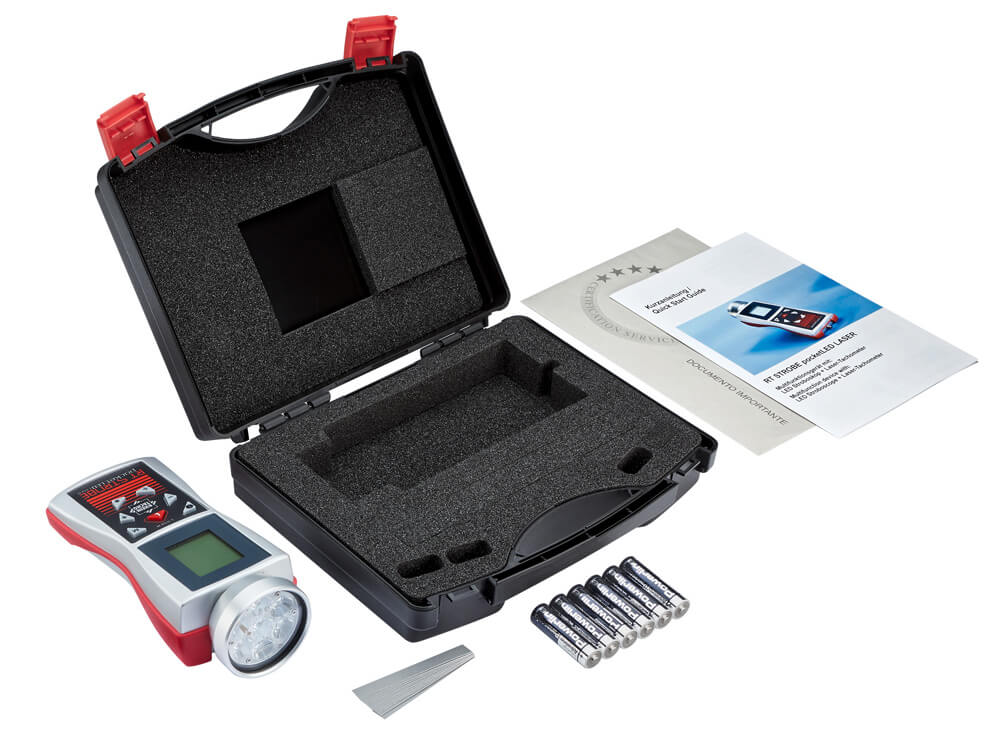

Kit Contents

DS-2000LED-LSR Pocket Laser LED Stroboscope Traceable Calibration Certificate Reflective Tape

2 sets of 3x-AA batteries (6 batteries total) Carrying Case Instruction Manual

DS-2000LED-LSR-OT Laser Stroboscope Tachometer &external trigger input/output Traceable Calibration Certificate Connection Cable for input / output Reflective Tape

2 sets of 3x-AA batteries (6 batteries total) Carrying Case Instruction Manual

Features

• Traceable Calibration Certificate provided
• Produces the brightest flash and sharpest image over the entire range to 300,000 FPM
• Lifetime LEDs do not wear-out or need replacement
• Three (3) AA-Batteries provide six hours of continuous use operation
• 9000 Lux brightness (measured at a distance of 8")
• Intuitive controls allow user to quickly adjust flash rate and shift phase
• User-selected units of Hz or FPM (Flashes Per Minute)
• IP 65 rated housing provides protection from water jets
• Made in Germany
• 2-Year warranty

Specifications

Frequency Range	30 - 300,000 FPM (0.5 - 5000Hz)
Flash Duration	Adjustable (1 usec up to 8522 usec)
Accuracy	± 0.02% ± 500ns
Resolution	± 0.1 FPM (30 - 999) ± 1 FPM 1000+
Brightness	9000 Lux @ 200mm (8 inch)
Protection Class	IP65 (Protection from Dust and Water Jets)
Display	LCD, multiple lines
Certification	CE (as per EU norms)
Flash Color	Approx. 6.500 K
Power Supply	3x AA size batteries or 3x NiMH rechargeable batteries
Housing Material	Aluminum / ABS Heavy duty design
Dimensions	191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch
Weight Approx	400g (including batteries)
Temperature Range	0° - 45° C / 32° - 113° F
Battery Life	NiMH: approx 11h at 6.000 FPM Disposable: approx 6 h at 6.000 FPM
Warranty	2 Years
Default Settings	FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0
Trigger Input (-OT version)	3 - 32 V, NPN + PNP Low Level: < 1 V Principle: Optocoupler, voltage-free
Trigger Output (-OT version)	Level: max. NPR, max 32V Pulse Length: Adjustable Maximum current: 50mA Reverse voltage protection: Yes Principle: Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated
