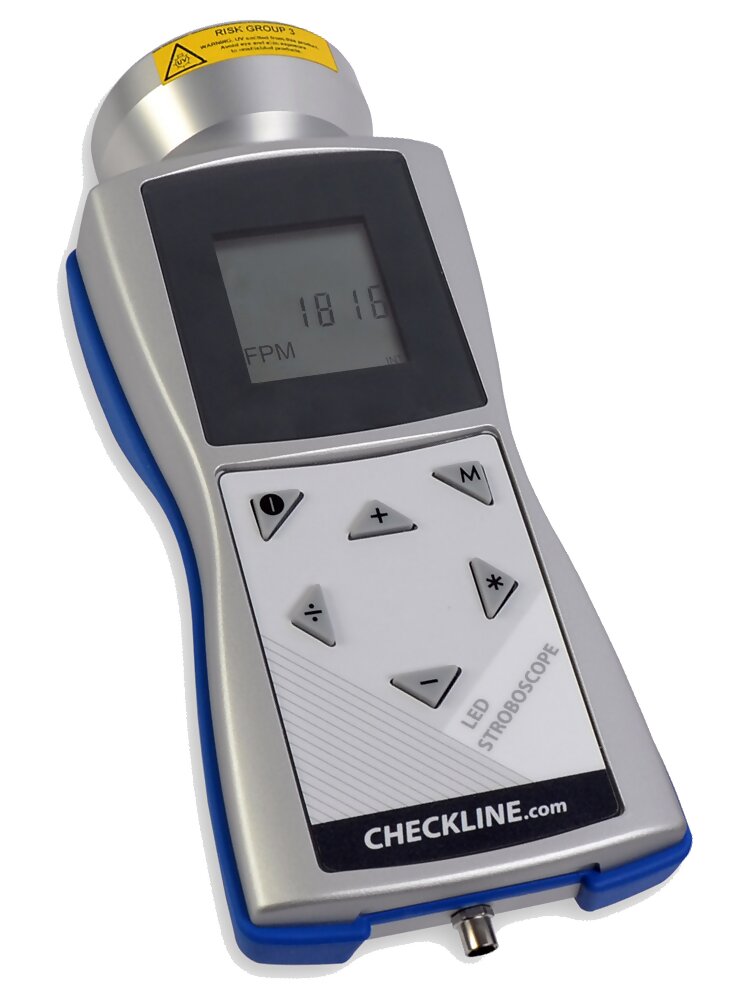

The DS-2000LED-UV is a battery powered hand-held LED blacklight stroboscope designed for inspecting UV ink on labels, security tags, watermarks and more

---

7 High-Powered LEDs produce peak brightness of 3000 Lux

---

Flash range of 30 - 300,000 fpm (0.5-5000 Hz)

---

IP65-rated housing is extremely water resistant

---

UV LED Stroboscope with external trigger input/output

The DS-2000LED-UV is a battery powered hand-held Blacklight LED stroboscope designed for inspecting UV ink on labels, security tags, watermarks and more. Seven state-of-the-art, super-bright UV LEDs mounted in a precision-machined aluminum head with optimized optics, provide the superior light output.

Powered by 3 AA batteries, the DS-2000LED-UV can operate even at the highest flash rates for up to six hours. An easy-to-use interface allows the operator to quickly adjust the flash speed to sync to the moving process.

A high-impact plastic housing with rubber sleeve provides additional protection as well as improved grip for the operator. Lifetime LEDs do not wear-out or need replacement making this product ideal for use in harsh printing environments.

Kit Contents

Checkline DS-2000LED-UV Battery Powered UV LED Stroboscope 6x AA batteries Carrying case

Features

• Produces the brightest flash and sharpest image over the entire range to 300,000 FPM
• Lifetime LEDs do not wear-out or need replacement
• Three (3) AA-Batteries provide six hours of continuous use operation
• Intuitive controls allow user to quickly adjust flash rate and shift phase
• User-selected units of Hz or FPM (Flashes Per Minute)
• 2-Year warranty
• IP 65 rated housing provides protection from water jets
• An External Trigger Inpup signal can be used to externally control the flash rate
• The Trigger Output provides a frequency output signal which can be used by data collection devices to record flash rate

Specifications

Frequency Range	30 - 300,000 FPM (0.5 - 5000Hz)
Flash Duration	Adjustable (1 usec up to 8522 usec)
Accuracy	± 0.02% ± 500ns
Resolution	± 0.1 FPM (30 - 999) ± 1 FPM 1000+
Protection Class	IP65 (Protection from Dust and Water Jets)
Display	LCD, multiple lines
Certification	CE (as per EU norms)
Power Supply	3x AA size batteries or 3x NiMH rechargeable batteries
Housing Material	Aluminum / ABS Heavy duty design
Dimensions	191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch
Weight Approx	400g (including batteries)
Temperature Range	0° - 45° C / 32° - 113° F
Battery Life	NiMH: approx 11h at 6.000 FPM Disposable: approx 6 h at 6.000 FPM
Default Settings	FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0
Trigger Input	3 - 32 V, NPN + PNP Low Level: < 1 V Principle: Optocoupler, voltage-free
Trigger Output	Level: max. NPR, max 32V Pulse Length: Adjustable Maximum current: 50mA Reverse voltage protection: Yes Principle: Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated
Default Settings	FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0
Warranty	2 Years
