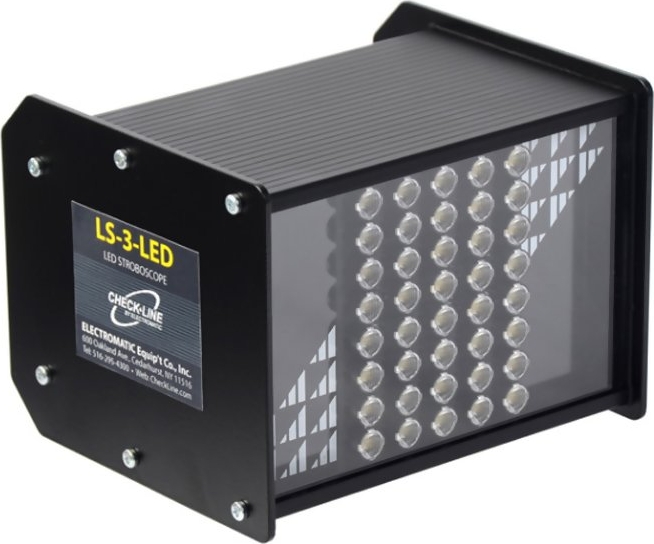

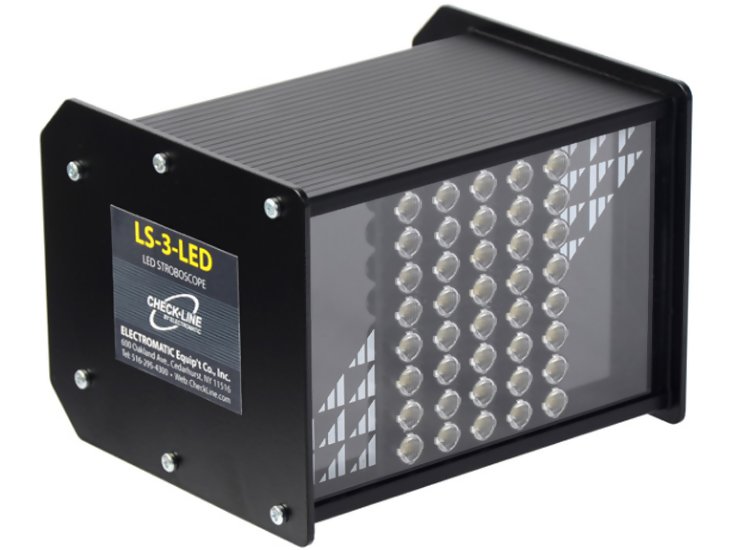

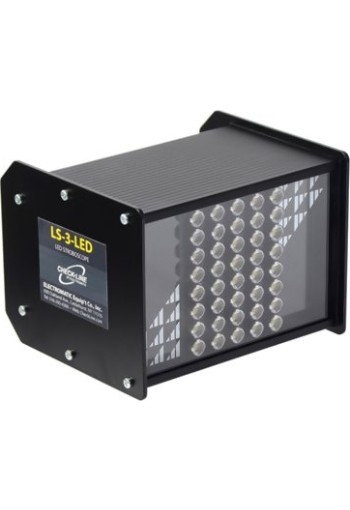

Checkline LS-3-LED Inspection Strobe Light
40 Hi-powered LEDs produces peak brightness of 5000 Lux
LED Inspection Stroboscope, 5 Inch Width covers web widths up to 10" / 25cm

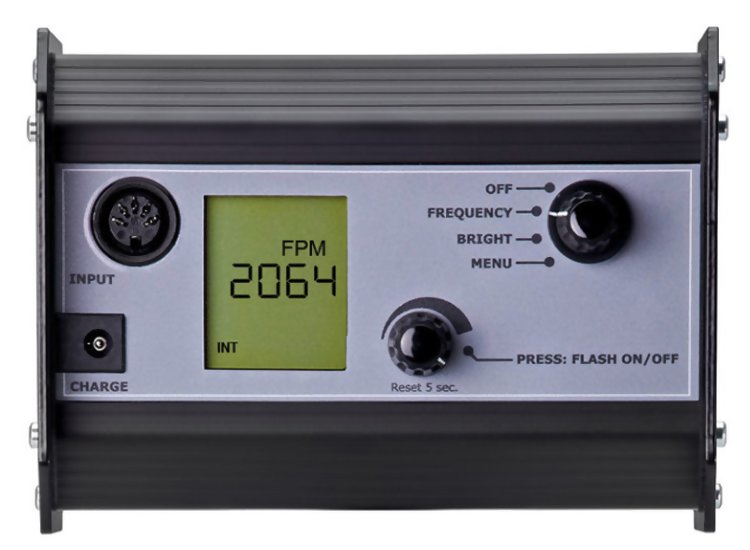

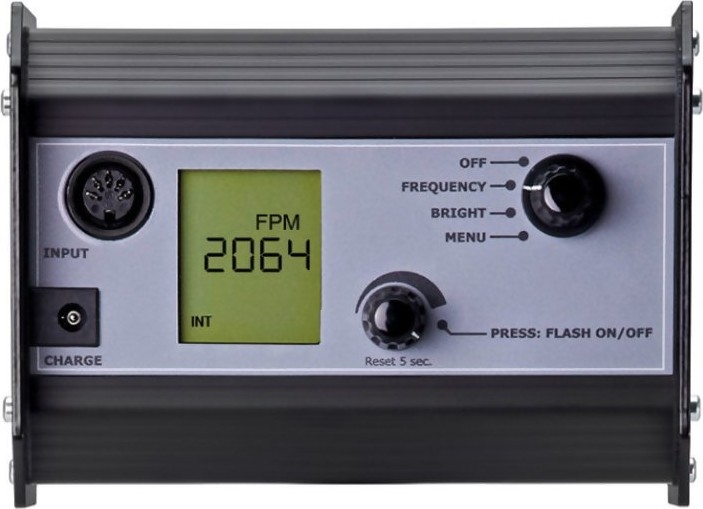

Built-in Flash Control
Adjustable brightness and image sharpness allows optimal setting for each application

LED Inspection Strobe Light for process and narrow web inspection

The Checkline LS-3-LED is a high-performance LED stroboscope designed for inspection of webs up to 10"/25cm. Built-in strobe control allows for easy adjustment of flash rate, brightness, phase and more. External input allows syncing the strobe with a remote sensor.

The LS-3-LED features a rugged aluminum housing with forty, high performance LEDs providing a peak brightness of 5000 Lux and convenient adjustment of flash duration to easily select the optimal balance of brightness and image sharpness. It is supplied with a universal battery charger (100-240VAC) with USA, Euro and UK plug adapters. A convenient tripod mount allows for easy installation on a range of equipment


line

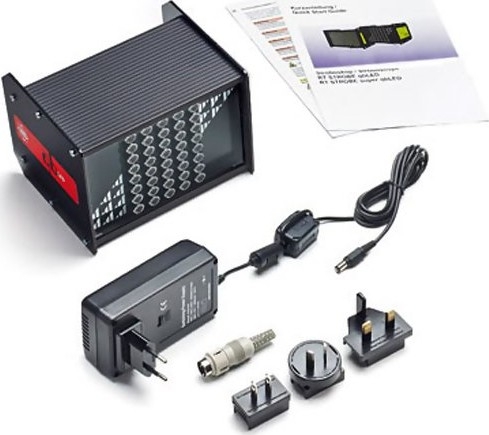

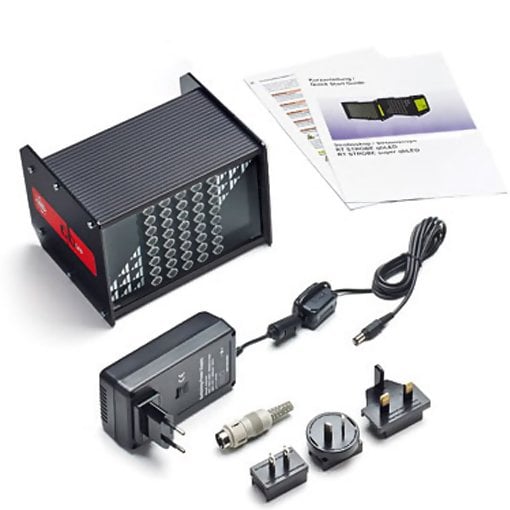

Kit Contents
line

  • LS-3-LED Compact LED Inspection Stroboscope
  • Universal AC adapter with USA, EURO and UK plugs
  • DIN Connector (for use when externally triggering from sensor)


line
Features
line

  • 40 High Power LEDs produce 5000 Lux Peak Brightness
  • Flash range of 30 - 300,000 fpm (0.5-5000 Hz) with user-selected units of Hz, FPM, 1/MIN
  • Adjustable flash duration allows for optimal tuning of brightness and image sharpness
  • External trigger input for flash control via external sensor
  • Designed for fixed-mounting using 1/4"-20 Tripod Mount or 2 M5 Threaded Inserts
  • Supplied with AC-Adapter (100 - 265V AC)
  • "Slow Motion" Mode allows user to offset the flash rate to put the "frozen" image into "slow-motion" (External Trigger Mode only)
  • "PRO Mode" provides additional functions including Multiplier, Delay and Memory (5 User-set Values)
  • Threaded mounting holes for fixed mount applications
  • CE Certified with 1-Year Warranty
  • Options include Screw-On Handle for Hand-Held use, Strobe Guards for added protection and foam-fitted plastic carrying case


line
Specifications
line

LEDs40 Hi-Powered LEDs in a 5x8 array
Frequency Range30 - 300,000 FPM (0.5 - 5000Hz)
Flash DurationAdjustable (1 usec up to 2000 usec)
Accuracy± 0.02% (± 1-digit/±0.025usec)
Resolution± 0.1 FPM (30 - 999)
± 1 FPM (1000 - 9999)
± 10 FPM (10,000-300,000)
Brightness5000 Lux @ 6000 FPM / 30cm (12 inch) - and 3° Sharpness
Flash ColorApprox. 5,000 - 8000 K
DisplayLCD, multiple lines
External Trigger Input3...30 V / max. 5 mA
Potential-free optocoupler
DIN 41524 5-pin standard plug
Uout = Uin, max. 200 mA
switchable trigger input
Trigger Outputnot available
MaterialAluminum
Housing ProtectionIP30
Dimensions6.0" x 5.1" x 4.4" (150 x 130 x 112mm)
Weight2.09 lbs
Ambient temperature0°...40°C (32°...114°F)
Storage temperature-25°C...70°C (-10°...125°F)
Humiditymax. 95% not condensing
CertificationsCertificate of CE conformity
Warranty1 Year

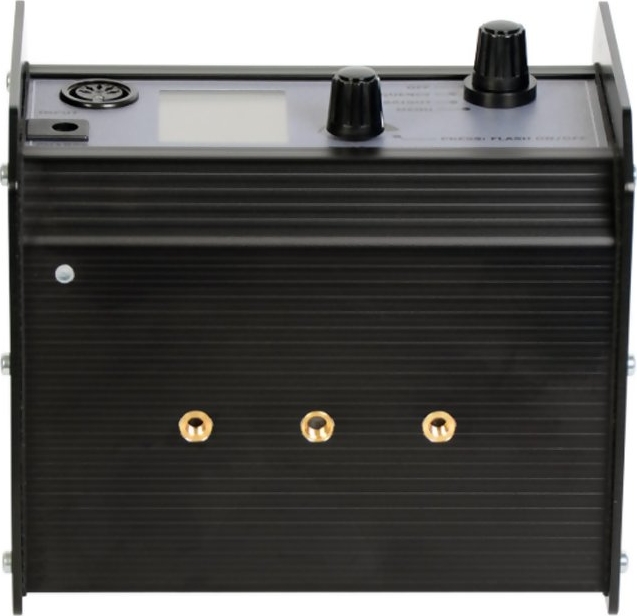

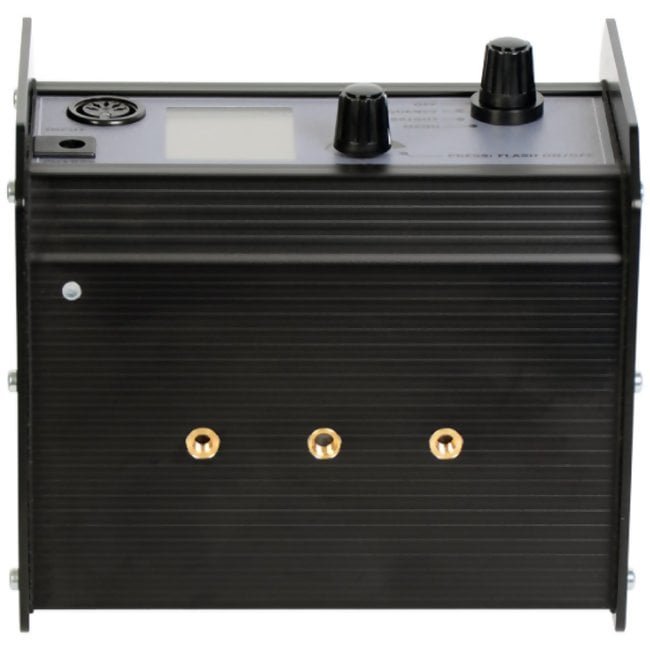

Mounting HolesLocated on underside of housing:
(1) 1/4 - 20UNC in center
(2) M5 Threaded Inserts (60 mm c:c) outer
Power24V DC supplied via Universal AC Wall Plug Adapter (100-240V AC), supplied with USA, Euro and UK Plug Adapters
Default SettingsFREQUENCY=1000 FPM, BRIGHT=1°/166usec, PHASE=0, TRIGGER=INT, Display Units=FPM, Miltiplier=x1, Bright Units=deg, Delay=0msec, Divider=1, Slow=0, Trigger=0(rising)


line
Overview of LCD Strobe Models
line

ModelLEDsArray SizeBrightness (peak)Housing Width
LS-3-LED4010 x 45000 Lux150 mm
(6 inch)
LS-5-LED8010 x 86000 Lux150 mm
(6 inch)
LS-9-LED12015 x 87500 Lux230 mm
(9 inch)
LS-9-LED-WB1205 x 8 (3x)7500 Lux440 mm
(17 inch)
LS-18-LED20025 x 89000 Lux440 mm
(17 inch)
LS-36-LED48060 x 814000 Lux948 mm
(37 inch)


line
Related Products
line

LS-FCM
Flash Control Module
  • Produces the brightest flash and sharpest image over the entire range to 300,000 FPM
  • Lifetime LEDs do not wear-out or need replacement
related

line

LS-SCU
Remote Control Unit
related

line

LS-GAPSENSOR
Label Sensor for Triggering On Label Gaps

  • Only label sensor on the market that is immune to the interference caused by a strobe.
related


line
Downloads
line

Checkline LS-3-LED Compact LED Inspection Stroboscope - Instruction Manual
Checkline LS-3-LED Compact LED Inspection Stroboscope - Data Sheet
