Remote Control Unit for LS-5-12000 Stroboscope

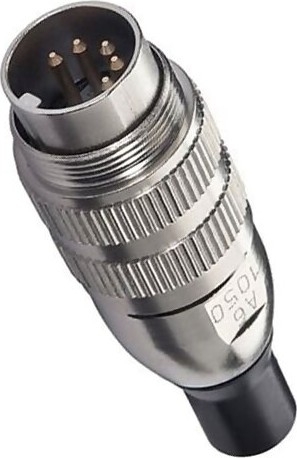

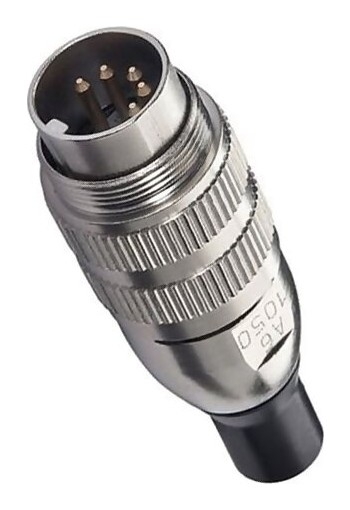

When manual flash rate adjustment is needed, the Checkline LS-5-FCM Flash Control Module offers a convenient low-cost solution to provide this capability. It simply plugs into one of the two connectors on the back side if the LS-5 Xenon Strobe or LS-9-LED Strobe, providing precise manual control of the flash rate for the user. Can be installed at any time.

Operating Instructions

This control unit is designed for use with the RT Strobe series. With this control unit you can manually adjust the flash frequency of the stroboscope

Warning: Please read all warnings as detailed in the instruction manual of the stroboscope.

How to use:

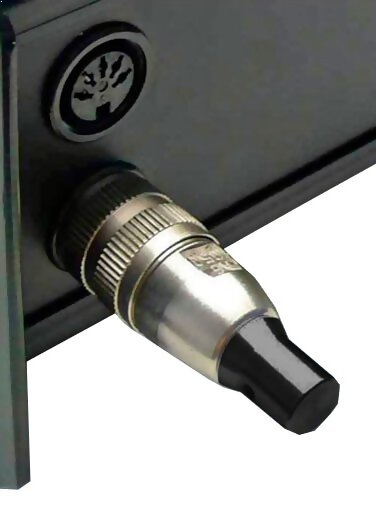

1. Plug the LS-5-FCM into either one of the (2) jacks on the backside of the RT Strobe and tighten the screw.
2. To adjust the frequency, rotate the knob CCW (Counter Clockwise, left) to DECREASE flash frequency or CW (Clockwise, right) to INCREASE flash frequency

(The rate of change will increase as you rotate the knob faster)
