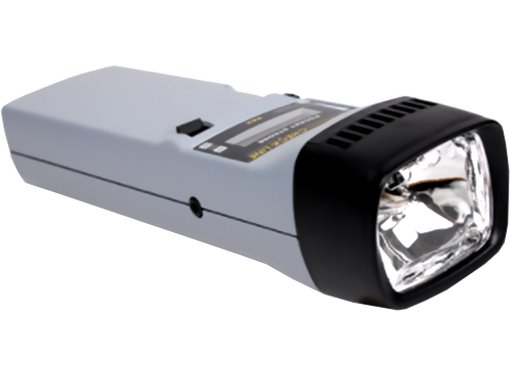

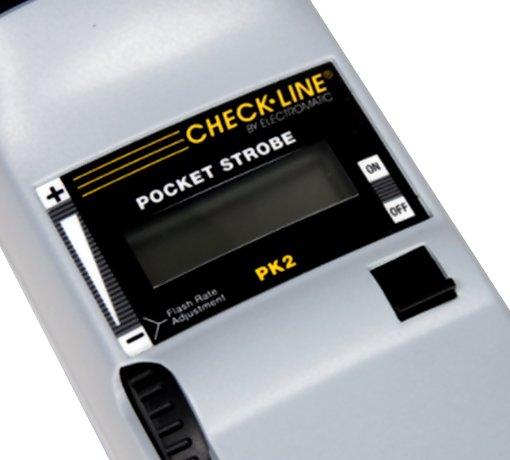

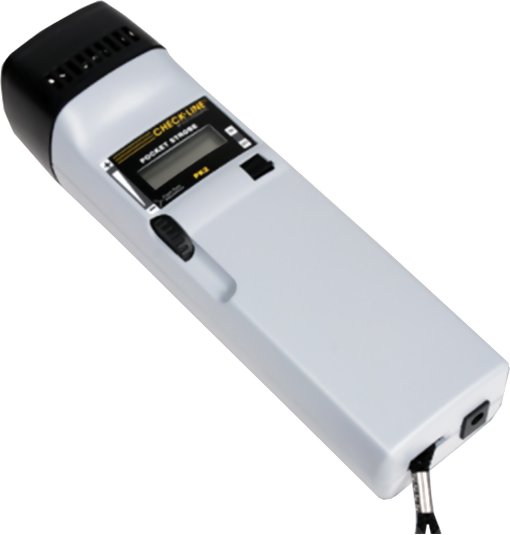

Checkline PK2X Pocket-Strobe Stroboscope

---

New & Improved Pocket-Strobe™, Compact Battery Powered Stroboscope

---

Range: 30 - 12,500 RPM/FPM

---

Power Internal Battery or AC-Power

---

2 Hour battery run-time, 50% brighter then PK2

---

PK2X
PK2X-OT (adds Trigger Signal Output)
30 - 12,500 RPM/FPM
and higher using harmonics

The Checkline PK2X hand-held Pocket Strobe® is convenient and accurate device to perform non-contact RPM measurements on rotating or reciprocating parts or components as well as a proven means for inspection of moving parts/machinery by “freezing” or “slowing down” the action. This stroboscopic effect is accomplished by matching the flash rate of the stroboscope with the repetitive rate (RPM) of motion of the target. A slow motion effect is accomplished with a slight mismatch of the relative speeds.

The Checkline PK2X is powered by a rechargeable internal battery or directly from an AC power source allowing for continuous use if necessary, or continued use when the battery charge is low. It small size, lightweight design makes it perfect for use by field technicians or maintenance personnel.

The new PK2X offer significant improvements from the previous generation model PK2 including the following (refer to table below): • 50% improvement in flash brightness • 100% improvement in battery run-time • Doubles the choice of power by permitting operation during re-charge or continuous operation when connected to AC-power

This new model continues to offer the highest reliability, refined by over 10-years of continuous design & manufacturing improvements since the introduction of the original Pocket Strobe Model PK1 was introduced in 1996.

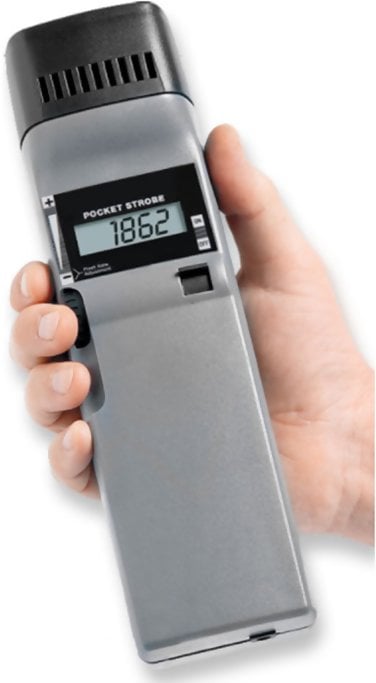

The PK2 requires only one hand to operate, yet delivers performance comparable to much larger and heavier “pistol-grip” type models. It is ideal for industrial, laboratory, R&D and academic environments. Its small size and excellent performance provide superior convenience and value — at a reasonable price.

Kit Contents

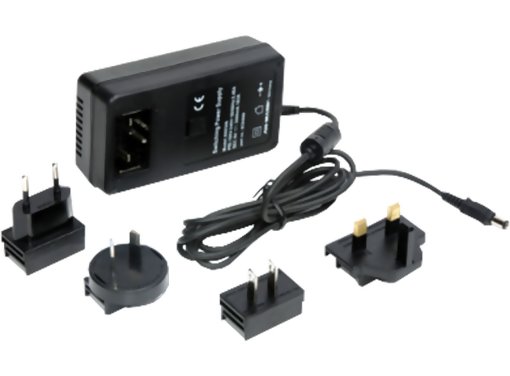

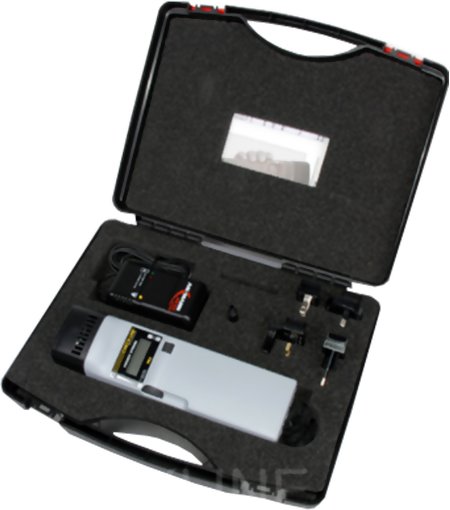

PK2X Pocket-Strobe Stroboscope Universal AC-Adapter/Charger (with plug adapters provided for North America, Europe, UK & AU) External input/output jack Traceable Calibration Certificate Instruction manual Carrying case

Features

• Internal rechargeable Lithium Ion battery uses latest “smart-charge” technology for longest possible life and 2-Hour run-time on a single charge
• Battery run time of 2 hours on full charge
• Operates when being recharged or run continuously via AC-power
• Includes Int'l Traceable Calibration Certificate(click for sample)
• Resolution of ±1 RPM over the entire range with highly accurate speed control and drift-free operation
• Bright XENON flash intensity (over 1200 Lux) with life of 200 million flashes
• Accepts input from sensor for external flash triggering
• Provided with a threaded insert on underside of strobe for mounting to articulating arm or other fixture
• AC-Adapter/Charger can be used anywhere worldwide
  (100 – 240V AC) with plug adapters provided for N. America, Europe, UK & Australia AC outlets
• Portable, lightweight and rugged construction

Specifications

Flash Range	30 - 12,500 FPM
Flash Brightness	1200 Lux (8"/20cm distance @ 4500 fpm)
Accuracy	± 0.01% over entire range + 1 LSD ± 0.04 Hz
Resolution	± 1 FPM over entire range
Display	5-digit LCD
Display Update	0.5 seconds
Flash Energy	170 mJ
Flash Duration	< 9 µs
Flash Tube Life	200 million flashes (at 6,000 fpm)
Flash Color Temp	6,000K - 6500K

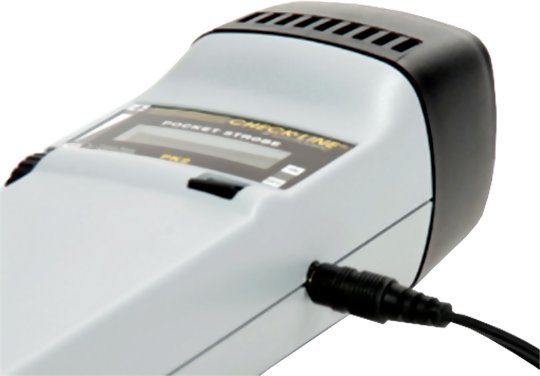

External Trigger	0-5 volt, DTL/TTL compatible 1/8" jack

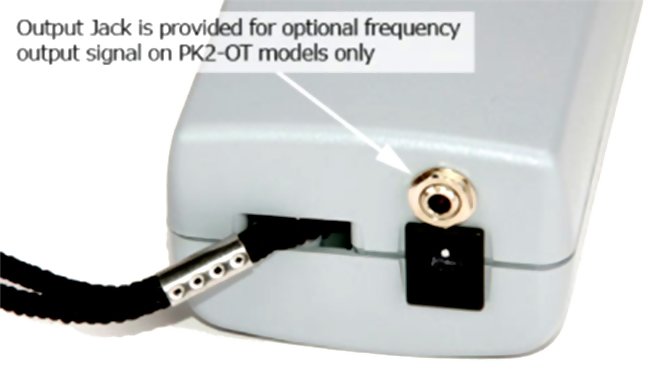

Optional* Trigger Signal Output	0-5 volt, DTL/TTL compatible 1/8" jack * on PK2X-OT Model Only
Operating Time	Battery, 2 hours. AC-Power, continuous
Battery Type	Lithium Ion (Li-Ion)
Battery Charger	AC Power Required, 100-240 VAC, 50/60 Hz. DC-Output, 9 VDC @ 2000 mA max Charging Time, 4-5 hours
Overcharge Protection	Yes
CE Certification	Yes
Weight	0.9 lbs (415 grams) including battery
Housing Material	High Impact ABS Plastic
Reflector Material	Aluminum
Tripod Mount	1/4-20, female insert
Operating Temp.	32 to 104° F (0 to 40° C)
Dimensions	9–3/4" x 2–3/4" x 1–3/4" 240 x 65 x 40 mm
Warranty	1 year

Optional Accessories

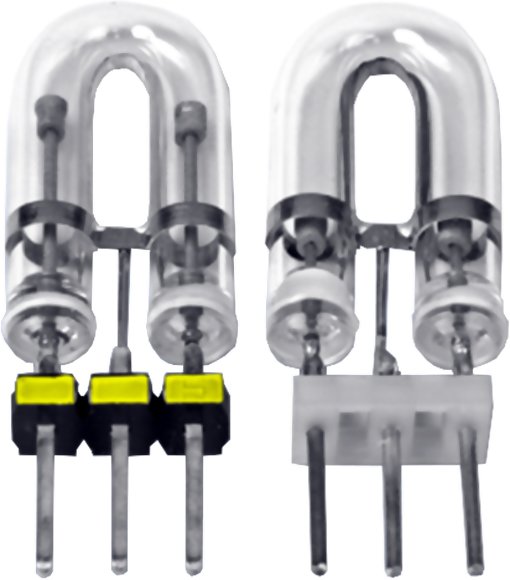

PK2X-TBE	Spare Xenon Flash Tube

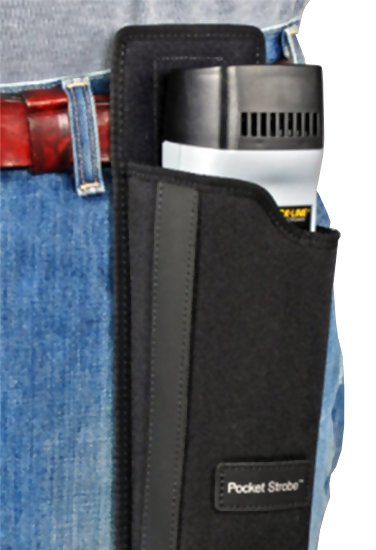

PK2-HLT	Padded-vinyl & leather belt-clip holster
PK2-PHONO	Connection jack for external trigger input signal
PK2-TRI	Telescoping tripod
PK2-BNC	External triggering cable; 6 ft. long; 1/8" male to BNC male connections
PK2-8M	External triggering cable; 6 ft. long; 1/8" male to 1/8" male connections
PK2X-BAT	Replacement Li-Ion Battery Pack
PK2X-AC-BC	Replacement Universal Battery Charger (100-240 VAC)
