Checkline QB-LED Battery Powered LED Stroboscope Peak Brightness of 5,000
Flash range of 30 - 300,000 fpm (0.5-5000 Hz)
Includes Slow-Motion, Phase-Shift, Multiplier & Memory

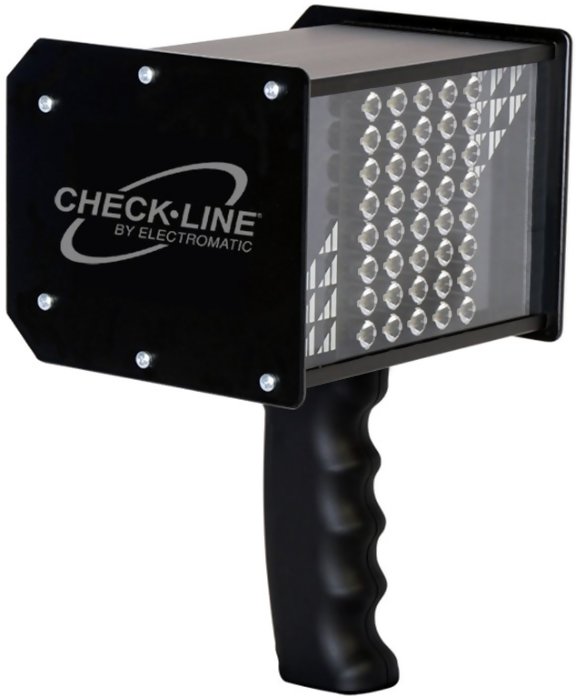

The Check-Line QB-LED is a hand-held, battery-powered stroboscope featuring forty (40) extremely bright LEDs for the highest light output in its class. Designed for machinery observation, visual inspection and motion analysis, its robust design is suitable for use in the toughest industrial environments.
The Checkline QB-LED features a robust aluminum housing fitted with forty long-life, high performance LEDs providing a peak brightness of 1750 Lux and convenient adjustment of flash duration to easily select the optimal balance of brightness and image sharpness. A built-in Lithium Ion battery provides up to seven hours of continuous use on a single charge. It is supplied with a universal battery charger (100-240VAC) with USA, Euro and UK plug adapters.
The strobe is extremely easy-to-use, as functions such as flash rate and brightness adjustments are separated from the special functions that are found a separate menu. The special functions include phase shift, internal/external trigger selection, flash delay, divider and "Slow Motion" mode. "Slow Motion" Mode allows the user to offset the flash rate to put the "frozen" image into virtual "slow-motion".
The QB-LED uses the "strobe effect" whereby when the flash rate is equal to the rotational speed, the target will appear "frozen". Typical applications include: motion and vibration analysis, balancing of rotating shafts, fans, cams, high speed motion analysis of speakers or ink-jet printing and more. Ideal for use in the textile, paper making, sheet metal production, automotive and printing industries

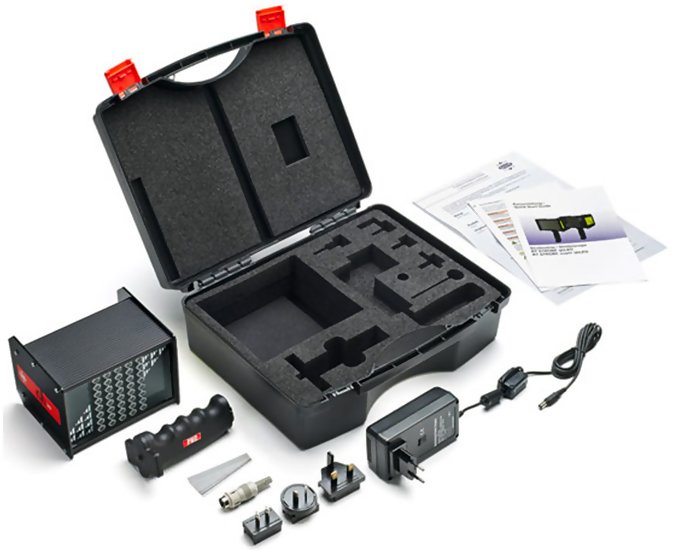

Kit Contents
- QB-LED Battery Powered LED Stroboscope
- Removable handle
- Universal AC adapter with USA, EURO and UK plugs
- DIN connector when using external trigger signal from sensor
- Traceable calibration certificate
- Carrying case
| |
Features

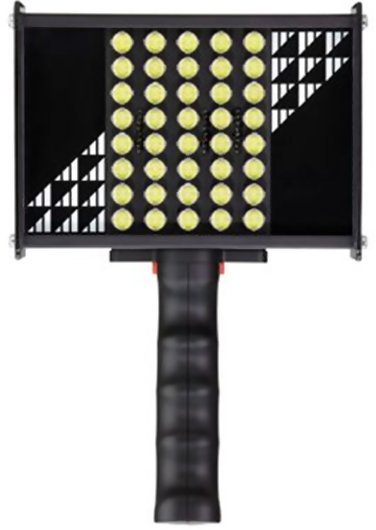

- 40 High Power LEDs produce 5000 Lux Peak Brightness
- Flash range of 30 - 300,000 fpm (0.5-5000 Hz) with user-selected units of Hz or FPM (Flashes Per Minute)
- Selectable units of "FPM, "Hz" or "1/MIN"
- "Slow Motion" Mode allows user to offset the flash rate to put the "frozen" image into "slow-motion"
- "PRO Mode" provides additonal functions including Multiplier, Delay and Memory (5 User-set Values)
- Additional features include "Phase Shift" and Internal/External Trigger

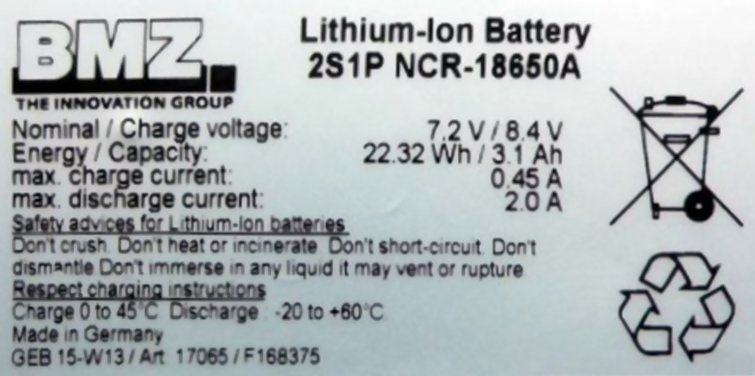

- Built-In Litium-Ion battery provides up to seven hours of continuous operation on a single charge. Battery status is shown on LCD display
- Adjustable flash duration allows for optimal tuning of brightness and image sharpness for every application
- Traceable Calibration Certificate included
- Supplied with universal AC battery charger. Can also be used to continuously power the QB-LED for fixed-mounted use
- Threaded mounting holes for fixed mount applications

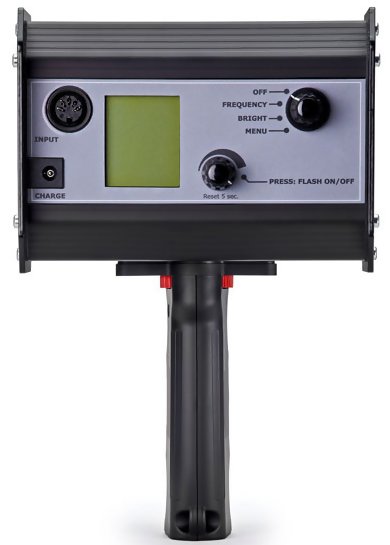

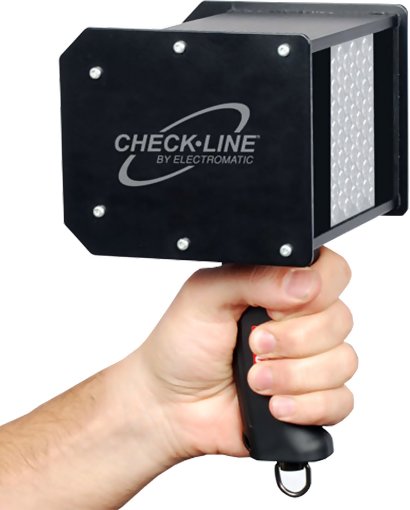

- Rugged, lightweight aluminum housing with an ergonomic handle, convenient operator controls and backlit LCD display
- CE Certified with 1-Year Warranty
Specifications
| Number of LEDs | 40 |
| Flash Rate | 30 - 300,000 FPM (0.5 - 5000Hz) |
| Flash Duration | Adjustable (1 usec up to 2000 usec) |
| Accuracy | ± 0.02% (± 1-digit/±0.025usec) |
| Resolution | ± 0.1 FPM (30 - 999)
± 1 FPM (1000 - 9999)
± 10 FPM (10,000-300,000) |

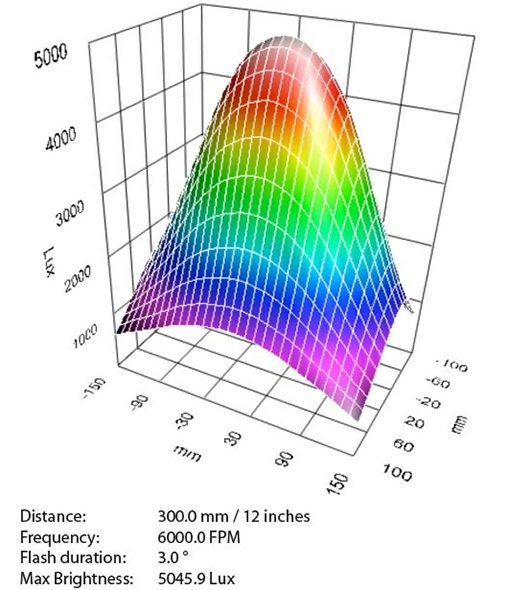

| Brightness | 5000 Lux @ 6000 FPM / 30cm (12 inch) - and 3° Sharpness |

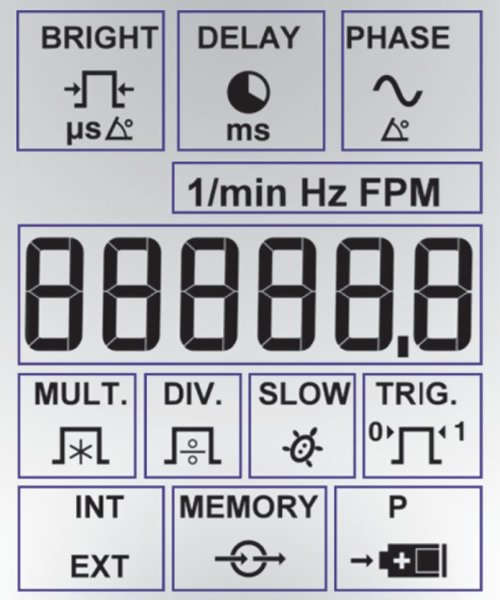

| Display | LCD, multiple lines |
| Certification | CE (as per EU norms) |
| Flash Color | Approx. 5,000 - 8000 K |
| Power | Built-In Lithium-Ion rechargeable battery |
| Housing Material | Aluminum |
| Dimensions | 150 x 130 x 112 mm / 6 x 5.1 x 4.4 inch |
| Weight | 1 Kg (2.2 Lbs) |
| Temperature Range | 0° - 40° C / 32° - 104° F |
| Battery Life | approx 7 hours at (@875 Lux)
approx 4 hours at 2000 Lux |
| Housing Protection | IP30 |
| Mounting Holes | 1x 1/4"-20UNC (in center)
2x M5 Threaded Holes (60 mm c:c) |
| Trigger Input Signal | 3...30 V / max. 5 mA (Isolated optocoupler)
DIN 41524 5-pin standard plug
Uout = 24V DC, 60 mA
switchable trigger input |
| Trigger Output | not available |
| Warranty | 1 Year |
| Default Settings | FREQUENCY=1000 FPM, BRIGHT=1°/166usec, PHASE=0, TRIGGER=INT, Display Units=FPM, Miltiplier=x1, Bright Units=deg, Delay=0msec, Divider=1, Slow=0, Trigger=0(rising) |
