    Checkline QB-LED Battery Powered LED Stroboscope Peak Brightness of 5,000


    Flash range of 30 - 300,000 fpm (0.5-5000 Hz)

    Includes Slow-Motion, Phase-Shift, Multiplier & Memory

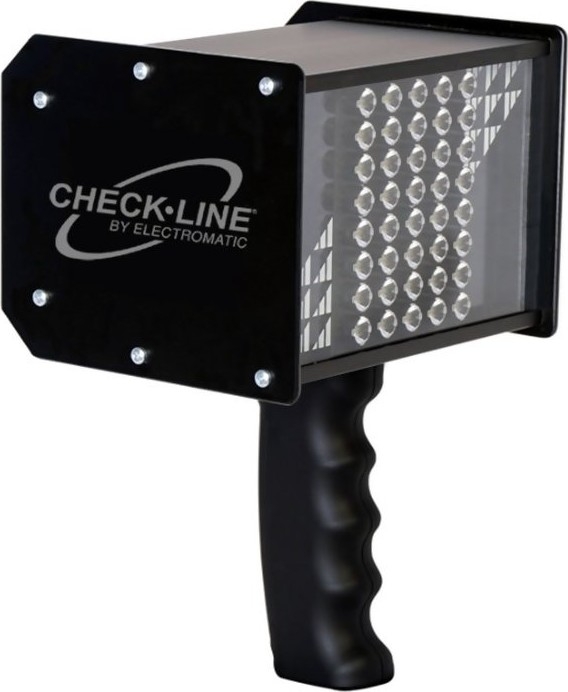

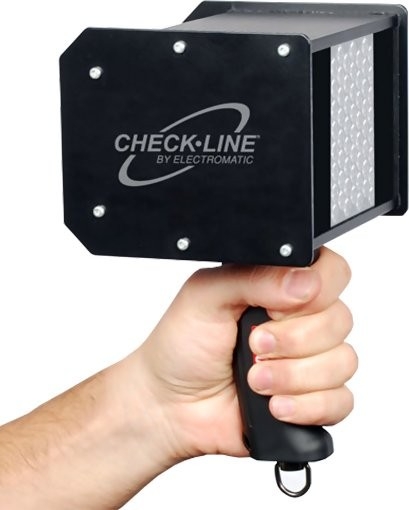

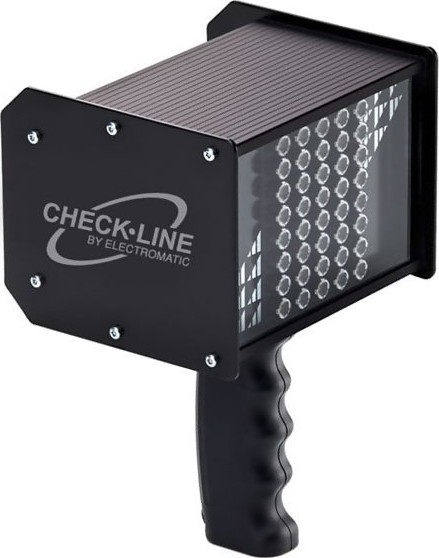

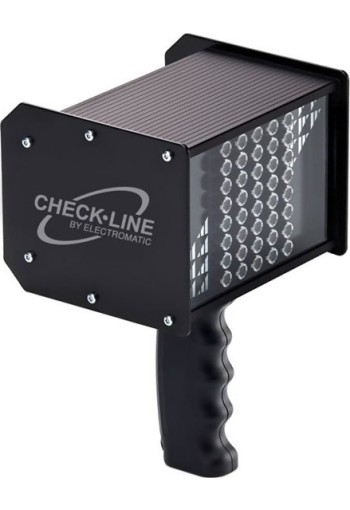

    The Check-Line QB-LED is a hand-held, battery-powered stroboscope featuring forty (40) extremely bright LEDs for the highest light output in its class. Designed for machinery observation, visual inspection and motion analysis, its robust design is suitable for use in the toughest industrial environments.

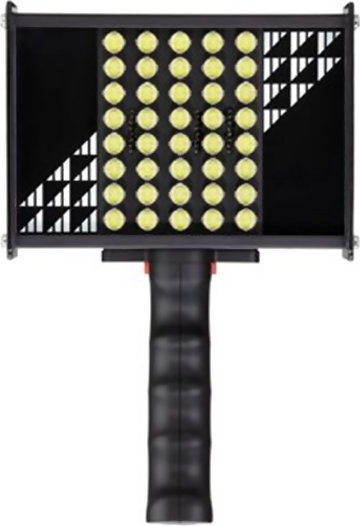

    The Checkline QB-LED features a robust aluminum housing fitted with forty long-life, high performance LEDs providing a peak brightness of 1750 Lux and convenient adjustment of flash duration to easily select the optimal balance of brightness and image sharpness. A built-in Lithium Ion battery provides up to seven hours of continuous use on a single charge. It is supplied with a universal battery charger (100-240VAC) with USA, Euro and UK plug adapters.

    The strobe is extremely easy-to-use, as functions such as flash rate and brightness adjustments are separated from the special functions that are found a separate menu. The special functions include phase shift, internal/external trigger selection, flash delay, divider and "Slow Motion" mode. "Slow Motion" Mode allows the user to offset the flash rate to put the "frozen" image into virtual "slow-motion".

    The QB-LED uses the "strobe effect" whereby when the flash rate is equal to the rotational speed, the target will appear "frozen". Typical applications include: motion and vibration analysis, balancing of rotating shafts, fans, cams, high speed motion analysis of speakers or ink-jet printing and more. Ideal for use in the textile, paper making, sheet metal production, automotive and printing industries


    line
    Kit Contents
    line

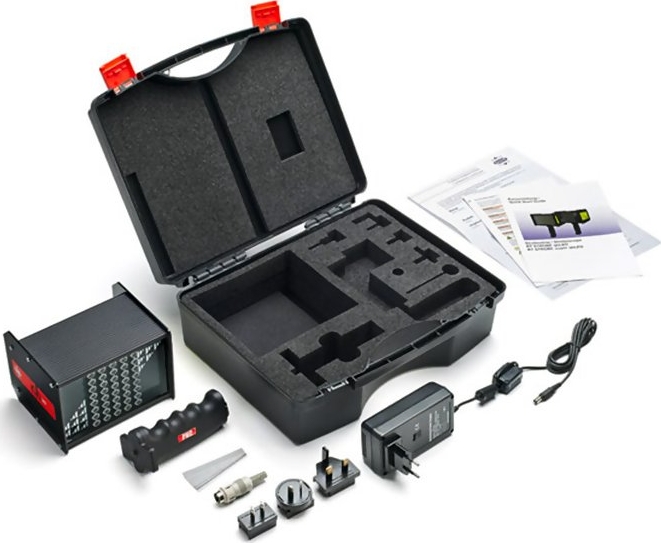

    • QB-LED Battery Powered LED Stroboscope
    • Removable handle
    • Universal AC adapter with USA, EURO and UK plugs
    • DIN connector when using external trigger signal from sensor
    • Traceable calibration certificate
    • Carrying case


    line
    Features
    line

    • 40 High Power LEDs produce 5000 Lux Peak Brightness
    • Flash range of 30 - 300,000 fpm (0.5-5000 Hz) with user-selected units of Hz or FPM (Flashes Per Minute)
    • Selectable units of "FPM, "Hz" or "1/MIN"
    • "Slow Motion" Mode allows user to offset the flash rate to put the "frozen" image into "slow-motion"

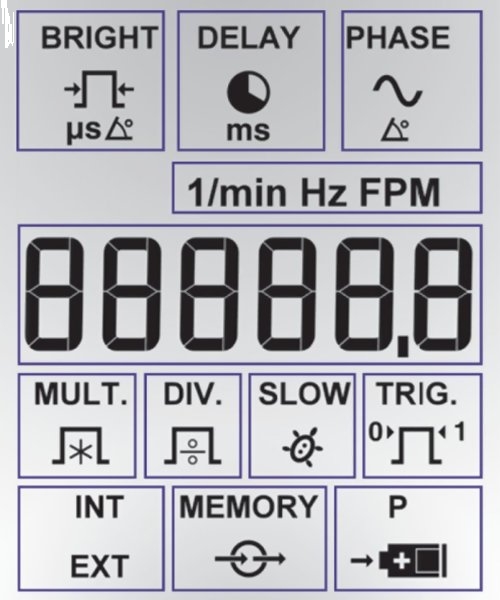

    • "PRO Mode" provides additonal functions including Multiplier, Delay and Memory (5 User-set Values)
    • Additional features include "Phase Shift" and Internal/External Trigger

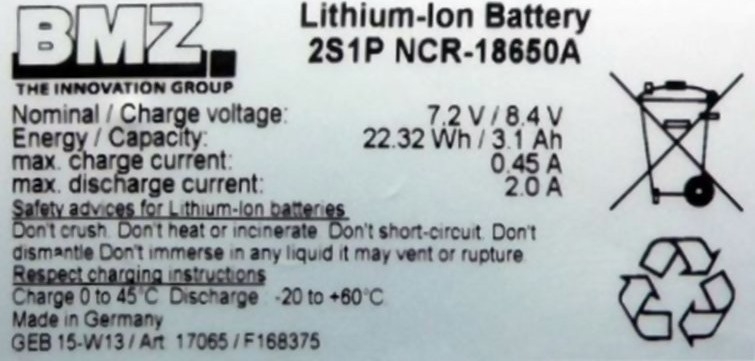

    • Built-In Litium-Ion battery provides up to seven hours of continuous operation on a single charge. Battery status is shown on LCD display
    • Adjustable flash duration allows for optimal tuning of brightness and image sharpness for every application
    • Traceable Calibration Certificate included
    • Supplied with universal AC battery charger. Can also be used to continuously power the QB-LED for fixed-mounted use
    • Threaded mounting holes for fixed mount applications

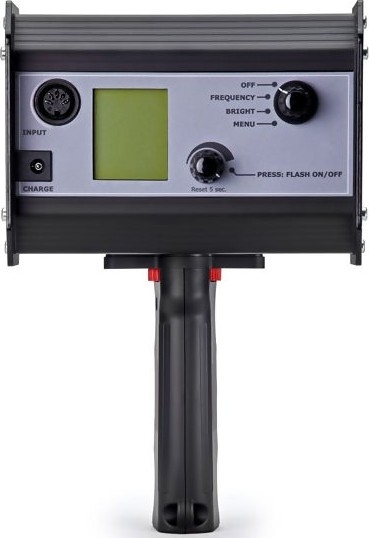

    • Rugged, lightweight aluminum housing with an ergonomic handle, convenient operator controls and backlit LCD display
    • CE Certified with 1-Year Warranty


    line
    Specifications
    line

    Number of LEDs40
    Flash Rate30 - 300,000 FPM (0.5 - 5000Hz)
    Flash DurationAdjustable (1 usec up to 2000 usec)
    Accuracy± 0.02% (± 1-digit/±0.025usec)
    Resolution± 0.1 FPM (30 - 999)
    ± 1 FPM (1000 - 9999)
    ± 10 FPM (10,000-300,000)

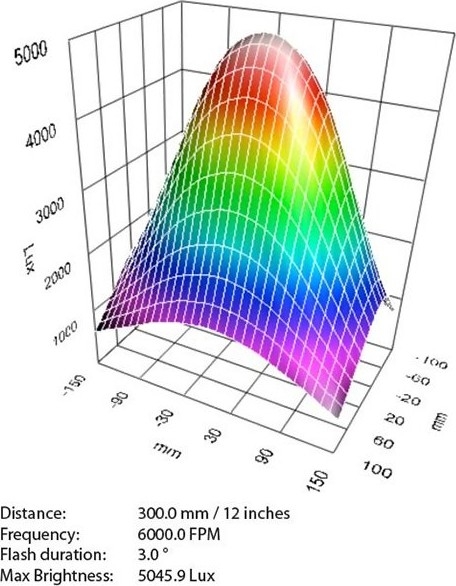

    Brightness5000 Lux @ 6000 FPM / 30cm (12 inch) - and 3° Sharpness
    DisplayLCD, multiple lines
    CertificationCE (as per EU norms)
    Flash ColorApprox. 5,000 - 8000 K
    PowerBuilt-In Lithium-Ion rechargeable battery
    Housing MaterialAluminum
    Dimensions150 x 130 x 112 mm / 6 x 5.1 x 4.4 inch
    Weight1 Kg (2.2 Lbs)
    Temperature Range0° - 40° C / 32° - 104° F
    Battery Lifeapprox 7 hours at (@875 Lux)
    approx 4 hours at 2000 Lux
    Housing ProtectionIP30
    Mounting Holes1x 1/4"-20UNC (in center)
    2x M5 Threaded Holes (60 mm c:c)
    Trigger Input Signal3...30 V / max. 5 mA (Isolated optocoupler)
    DIN 41524 5-pin standard plug
    Uout = 24V DC, 60 mA
    switchable trigger input
    Trigger Outputnot available
    Warranty1 Year
    Default SettingsFREQUENCY=1000 FPM, BRIGHT=1°/166usec, PHASE=0, TRIGGER=INT, Display Units=FPM, Miltiplier=x1, Bright Units=deg, Delay=0msec, Divider=1, Slow=0, Trigger=0(rising)
