This product has been replaced by the DT-315AEB

---

The DS-12V is no longer available. We recommend the DT-315AEB as a replacement.

---

Digital Porta-Strobe

---

0-12,000 FPM range; Locking trigger

---

Longest battery life of any portable strobe - three hours continuous use

---

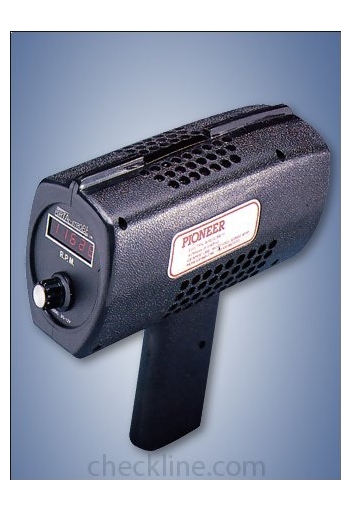

DS-12V Digital Porta-Strobe The DS-12V Porta-Strobe stroboscope is ideal for speed measurements and the examination of motor rotors, gears, cams, shafts, turbines, fans, vibarting parts, liquid spray patterns, leaks, etc.   Features  Longest battery life of any portable strobe - three hours continuous use  0-12,000 FPM range; Locking trigger  Includes NIST-traceable certificate  Longest flash tube life of any portable strobe - two billion flashes  Photo Gallery - click any photo to enlarge  Dimensions Stoboscope Accessories  Related Products 22-95 Flash Tube  Flash tube for DS-303 & DS-12V Stroboscopes.    Specifications Display Range 0 to 12,000 flashes per minute (FPM)  Display Output 5 digit LED  Resolution ± 1 FPM  Flash Duration 1 microsecond  Flashtube Life Two billion flashes  Locking Power Switch Press-to-operate mechanical switch  Power Requiremetns 12 V, 8 AH battery (model MM-12ATM)  Dimensions 9" x 8.5" x 4"  Construction High impact plastic  Weight 2 lbs (strobe); 8.5 lbs (battery pack); 9 lbs (AC power supply)  Operating / Storage Environment 32 - 114 ºF / 0 - 125 ºF   Download  PDF Data Sheet  Click here to download  PDF Instruction Manual  Click here to download
