Product Description

Imada ESL-200 Portable LED Stroboscope, 6.0 - 150,000 fpm / rpm


Flash Range: 6.0 - 150,000 fpm/rpm

Made in the USA

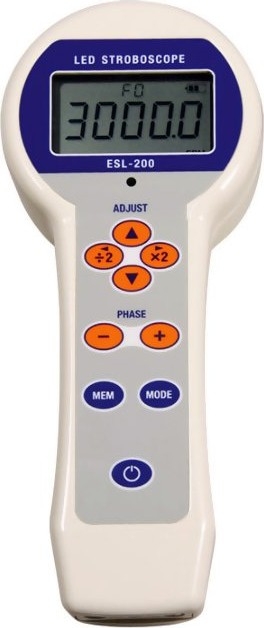

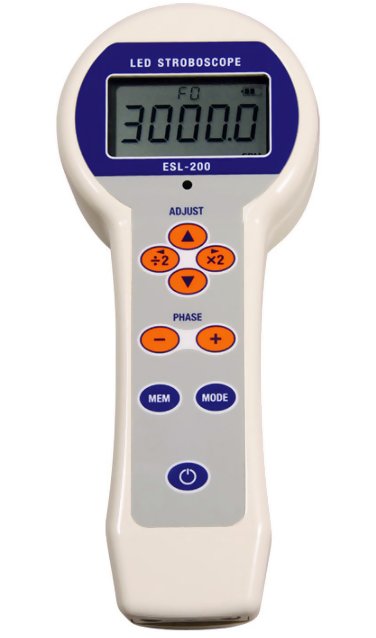

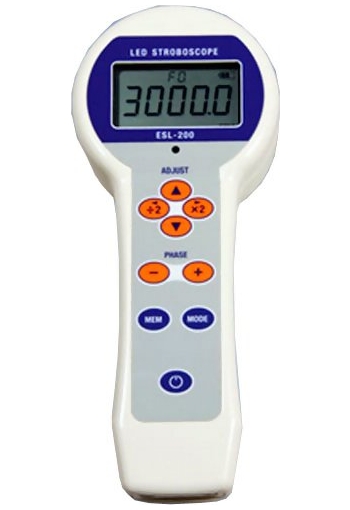

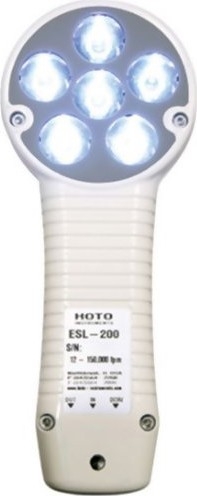

The Imada ESL-200 LED Stroboscope is a super bright, hand held, fully featured LED stroboscope in a compact design. The ESL-200 LED stroboscope is designed to measure the speed of rotating or cycling linear motion objects without contact or reflective tape, as well as freeze motion visually. Lifetime LED lights using pulse width modulation, encased in an aluminum housing, and powered by a NiMH rechargeable battery, make this pocket strobe extremely durable and capable of high flash rates. The Imada ESL-200 is an ideal inspection strobe for for speed, motion and vibration analysis, such as rotating shafts, fans, cams, etc.


line

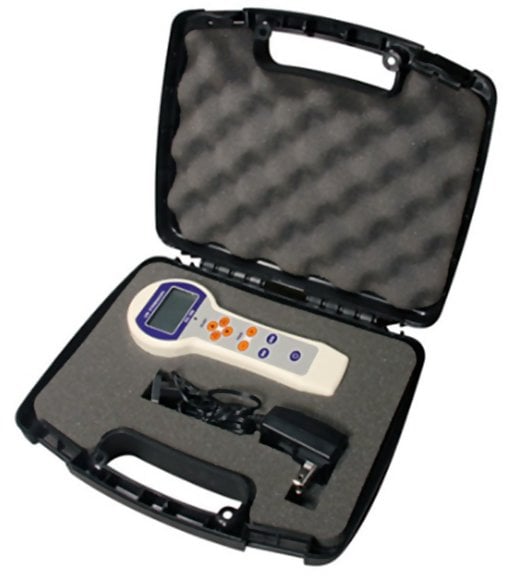

Kit Contents
line

  • Imada ESL-200 Portable LED Stroboscope
  • Universal AC-Adapter/Charger
  • NIST-Traceable Calibration Certificate
  • Instruction manual
  • Carrying case not included


line
Features
line

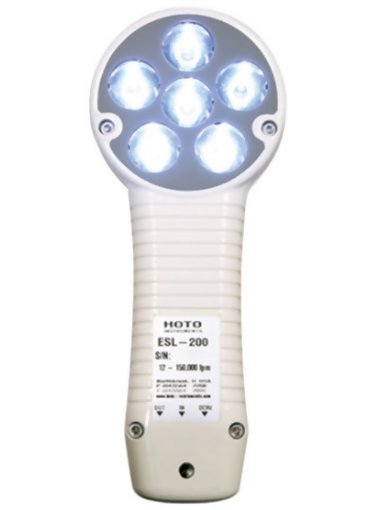

  • High efficiency LED solid-state light source
    Extended battery life of 10 hours continuous use at 6,000 fpm/rpm
  • Pulse Width Modulation for sharp images at high speed
  • Highly stable drift free operation
  • Auto wide measuring range – up to 150,000 fpm/rpm (over 100,000 display flashes)

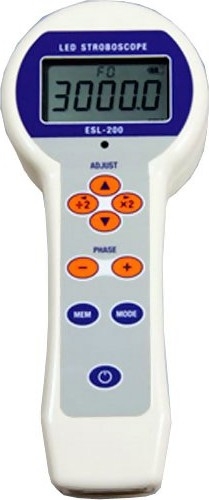

  • Push button operation with x2 and ÷2 buttons for easy and precise adjustment
  • 359° Digital phase shift adjustment by 1° increments

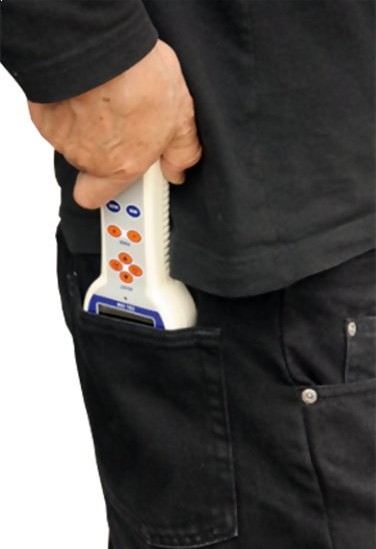

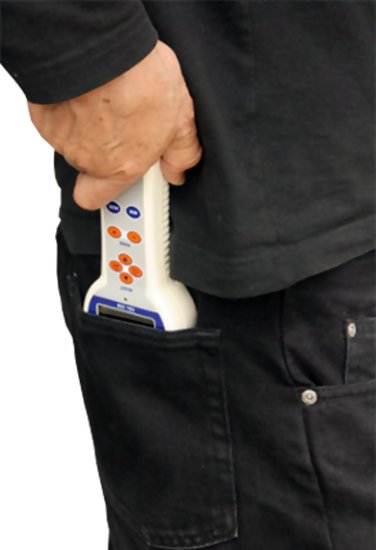

  • Rugged aluminum housing – compact size – weighs only 1.2 lb (540 g)
  • Easy-to-read 5 digit 0.47" (12 mm) high LCD
  • Store up to 19 flash rates in memory for records or quick retests (Restarts at the last flash rate)
  • External trigger input and output
  • Tripod mountable

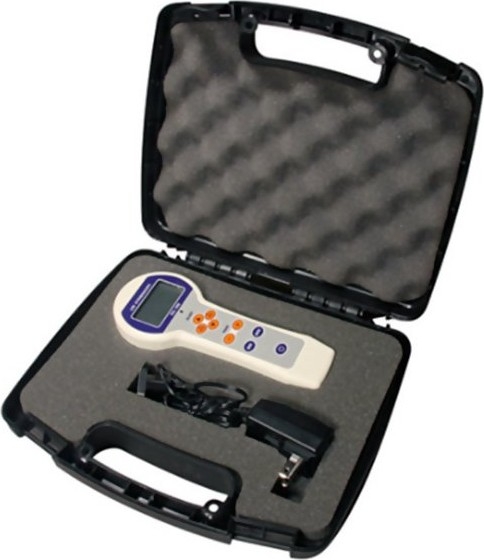

  • Kit includes stroboscope, AC Adapter/charger, and carrying case.


line
Specifications
line

Measuring Range6.0 - 150,000 fpm/rpm
Resolution±0.1 fpm/rpm (6.0 to 9999.9 fpm/rpm)
±1 fpm/rpm (10000 to 120000 fpm/rpm)
Accuracy±0.01%, ±1 LSD
Display12mm high, 5digit LCD
Brightness100%0 LUX 6,000 FPM, at 8" distance, flash duration F0
PowerNiMH Rechargeable battery with Universal 100-240V adapter
Battery Life6 hours continuous use at 6,000 fpm/rpm, Power save mode 12 hours continuous use at 6,000 fpm/rpm
Operating Temp0 - 45 C
Weight1.2 lb/540g
Housing MaterialAluminum
Tripod Mount1/4-20 UNC on backside
Phase Shiftwith external trigger: 0 - 359 degrees in 1 degree increments
Without external trigger: Image positioning only
Warranty2 years


line
Adjustable Flash Durationline

For most applications standard flash duration works without adjustment. For utra high rpm or larger objects rotating with high surface speed, ESL-200 features adjustable flash duration.
For ultra high speed applications, objects may move during the brief period of a single flash, resulting in a blurred image. By decreasing flash duration, objects have less time to move and the image will appear sharper.


line

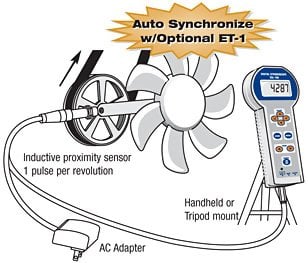

Optional ET-1 External Trigger Kit
line

The External Trigger immediately synchronizes the stroboscope with a rotating object. The sensor is aimed at a ferrous target mounted on the drive shaft and triggers the strobe to flash each time the target passes the sensor. ET-1 is complete with sensor, cables and AC adapter. Ferrous target not-included.

Target MaterialFerrous material
Target Size4mm dia. (minimum)
Sensing Distance3mm (based on 10 mm dia. target)
Max Speed50 m/min (using 10mm dia. target)
Max Frequency1 KHz
Sensor size12 mm dia. x 45 mm; M12 connector
Cable Length 1.8 m (6')
PowerAC adapter (up to 240VAC)


line
Downloads
line

Imada ESL-200 LED Stroboscope - Instruction Manual
Imada ESL-200 LED Stroboscope - Data Sheet
