Shimpo DT-3011J Harsh Environment NEMA 4X (IP65) Stroboscope with Included power 19.68 ft (6m) cable, rubber strobe guard with handle

See More Stroboscopes

Shimpo DT-3011J Harsh Environment NEMA 4X (IP65) Stroboscope with Included power 19.68 ft (6m) cable, rubber strobe guard with handle

See More Stroboscopes
Price:
$990.00
    warrenty
    View All 3 Models in this Product Family
    Secure Transaction

    Similar Products
    LS-5-UVKIT Checkline LS-5-UVKIT UV Strobe Conversion Kit for LS-5-12000 Stroboscope LS-5-UVKI
    DT-315AEB Shimpo DT-315AEB Digital Stroboscope, 40 - 35,000 RPM / FPM DT-315AEB
    TSV-1000 TSV-1000 Non-Contact Tachometer and Stroboscope Calibrator TSV-1000
    DT-3015N Shimpo DT-3015N Portable Xenon Stroboscope with Rechargeable Battery DT-3015N
    DT-366 Shimpo DT-366 Battery Powered LED Stroboscope DT-366
    DT-735 Shimpo DT-735 Battery Powered Xenon Stroboscope DT-735
    DS-2000LED-LSR Checkline DS-2000LED-LSR Laser Stroboscope Tachometer - A4-3005 DS-2000LE
    DT-326B Shimpo DT-326B High Performance LED Stroboscope DT-326B
    RS-220HR RS-220HR Photo Reflective Sensor RS-220HR
    LS-9-12000 Shimpo LS-9-12000 Xenon Linear Stroboscope LS-9-1200

    Product Description

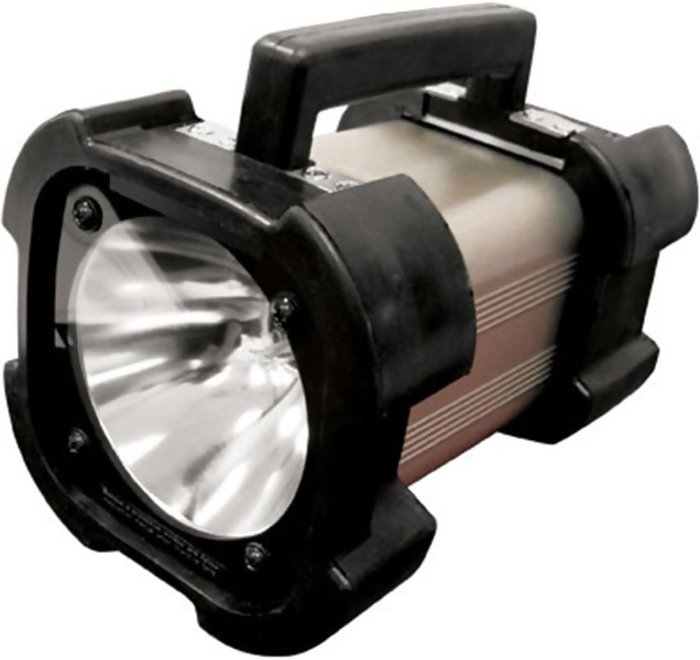

    Shimpo DT-311J Splash-Proof Stroboscope

    Range: 200 - 1,500 RPM/FPM
    Power: AC 115 or 230 V

    The Shimpo DT-311J Splash-Proof Stroboscope is designed for use in the harshest manufacturing environments and meet the specifications of protection code IP65.

    They are designed for observing fast repeated motions and for determining RPM or inspection and observation of moving parts by "freezing" or "slowing down" the movement.

    The instrument can be triggered by means of an external sensor (power supply for the sensor is provided by the stroboscope). The flashes can be delayed either in time or in rotation angle.


    line
    Features
    line

    • LIMTED RANGE: 200-1,500 RPM/FPM
    • Water & Dustproof housing (IP65)
    • Hand-held or tripod operation
    • Easy-to-read LED display
    • Accepts external trigger input and provides synchronizing pulse output
    • Phase shift for best view and flash photography
    • Easy-to-operate controls


    line
    Specifications
    line

    Flash Range200-1,500 FPM
    Accuracy± 1 digit
    Internal Signal
    Range    		200 to 1,500
    Delay SetterRotary Encoder
    Display4 digit, 10mm high Red LED
    Divide Ratio1/1, 1/2, 1/3, 1/4, 2/4 with shift
    Input SignalLO level: 0-0.4 VDC
    HI level: 2.5 - 12 VDC -- or open collector (npn)
    pulse width 50us min
    Input Impedance47 ohms
    Display ModePhase shift (degree), Tachometer
    FlashtubeXenon lamp, max 10 W at 1,5000 rpm
    Operating Temp0 to 40°
    Power Requirements115 V or 230 V AC (specify), 50/60 Hz, 30 VA
    Dimensions149w x 174h x 214d mm
    Weight4.2 lb (1.9 Kg)
    Warranty1 year
