Shimpo DT-311D AC Powered Digital Stroboscope

See More Stroboscopes

Shimpo DT-311D AC Powered Digital Stroboscope

See More Stroboscopes
Price:
$525.00 - $700.00
    warrenty

    Product Description
    Digital Stroboscope, AC Powered
    Range: 60-12,000 RPM/FPM
    Power: Universal 85-240 VAC

    Flash Range: 60-12,000 RPM/FPM

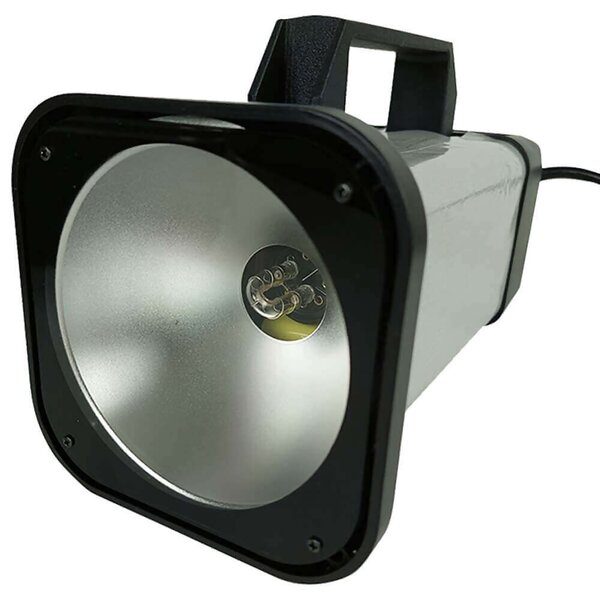

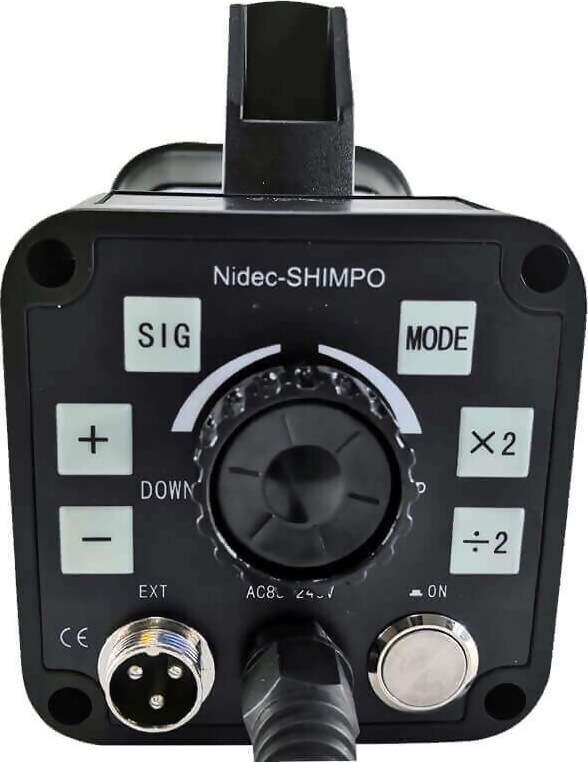

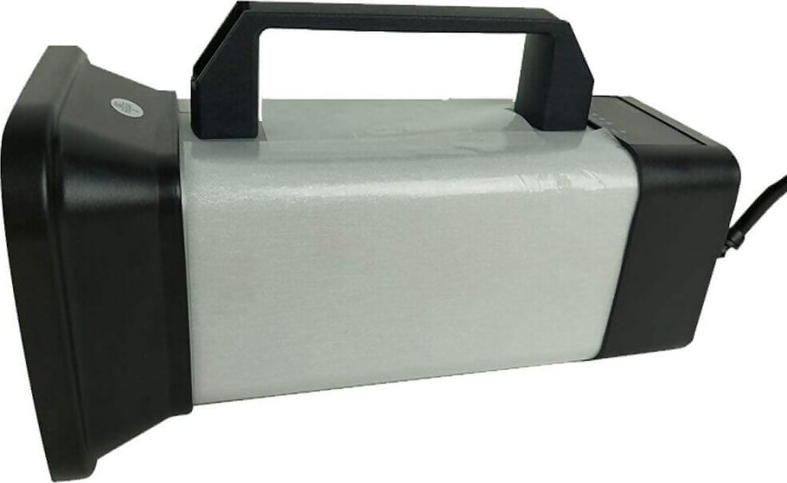

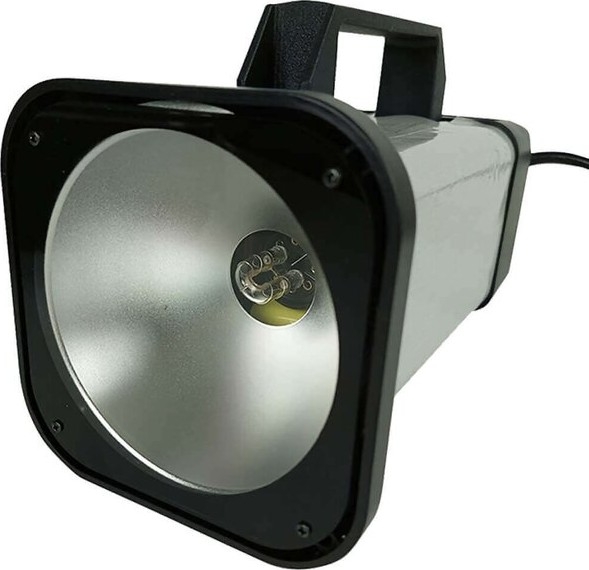

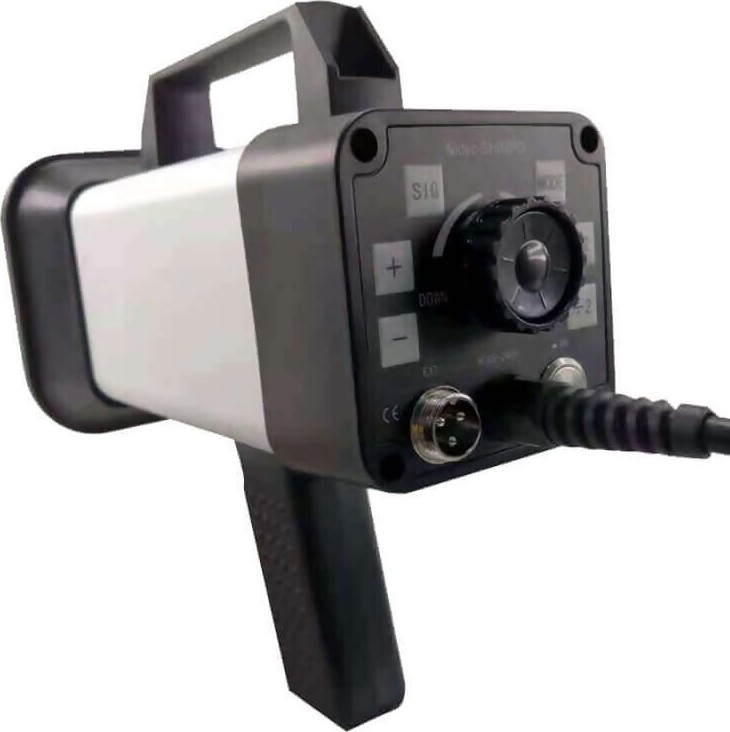

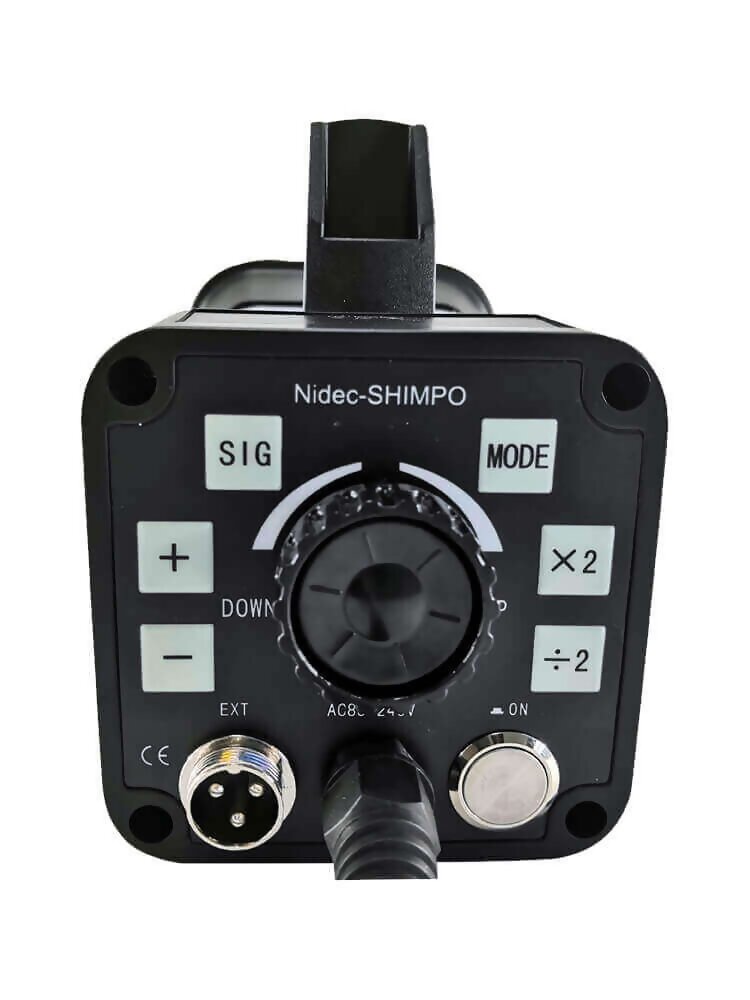

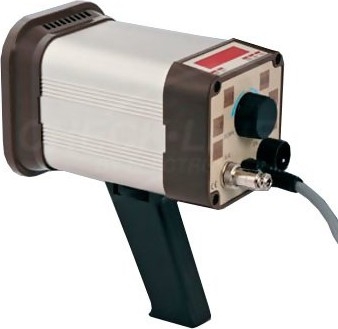

    The Shimpo DT-311D AC Powered Digital Stroboscope is a portable, highly stable, industrial-quality stroboscope for non-contact inspection and observation of moving parts by providing the user the illusion of stopped or slowed down equipment movement. Constructed with a rugged metal enclosure, the DT-311Ds withstand harsh, industrial usage. The included top & bottom handles aid in portability and usage flexibility. Built-in speed adjustment settings allow the flash rate to be easily altered by the user to visually inspect rotating or reciprocating machinery such as gear teeth, rotors, shafts, rewinders, printing presses, etc. all without stopping production. External trigger mode with connected remote sensor input enables the flash rate to be synchronized to the speed of the process. These features make the DT-311D universally-powered stroboscope ideal for quality inspection and preventive maintenance of automated motion equipment.


    line
    Kit Contents
    line

    • Shimpo DT-311D AC Powered Digital Stroboscope
    • Top & bottom handles
    • 9.8'(3 m) power cable
    • 3 pin female M16 threaded connector
    • Spare Flashtube

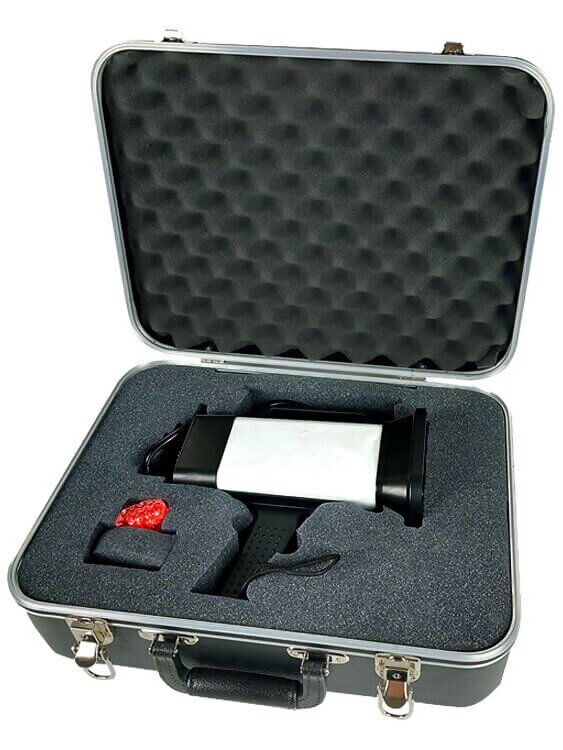

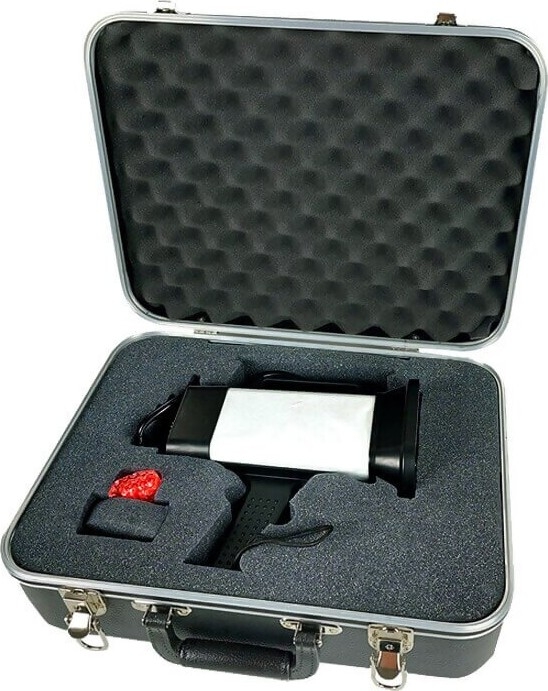

    • Carrying Case


    line
    Features
    line

    • Heavy-duty construction enclosure provides exceptional durability
    • Highly focused reflector eliminates "blind" viewing areas
    • External trigger input allows unit to be automatically synchronized with equipment
    • Universal power capability from 85-240 VAC allows one model to handle a multitude of local power requirements
    • Easy tri-pod or permanent mounting with integral mounting thread


    line
    Specifications
    line

    Flash Range60-12,000 fpm (flashes per minute)
    Accuracy±0.01% F.S.
    Resolution0.1 from 60-6,000; 1 from 6,001-12,000

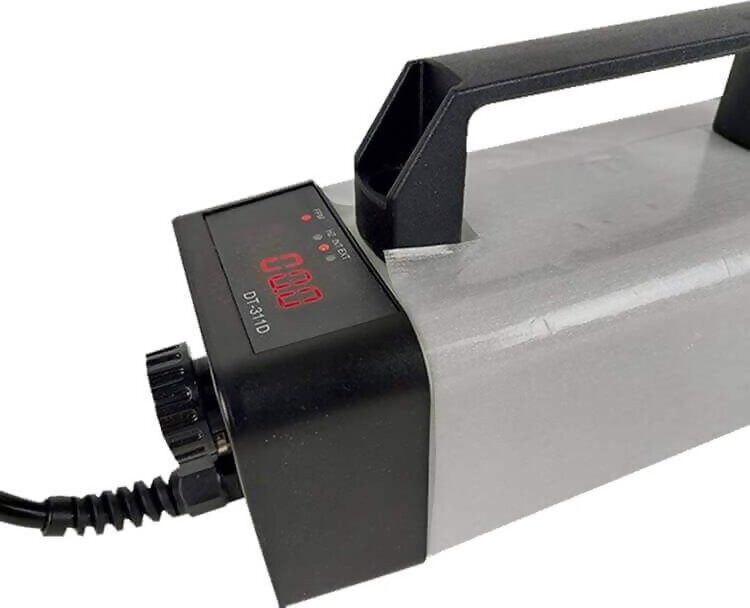

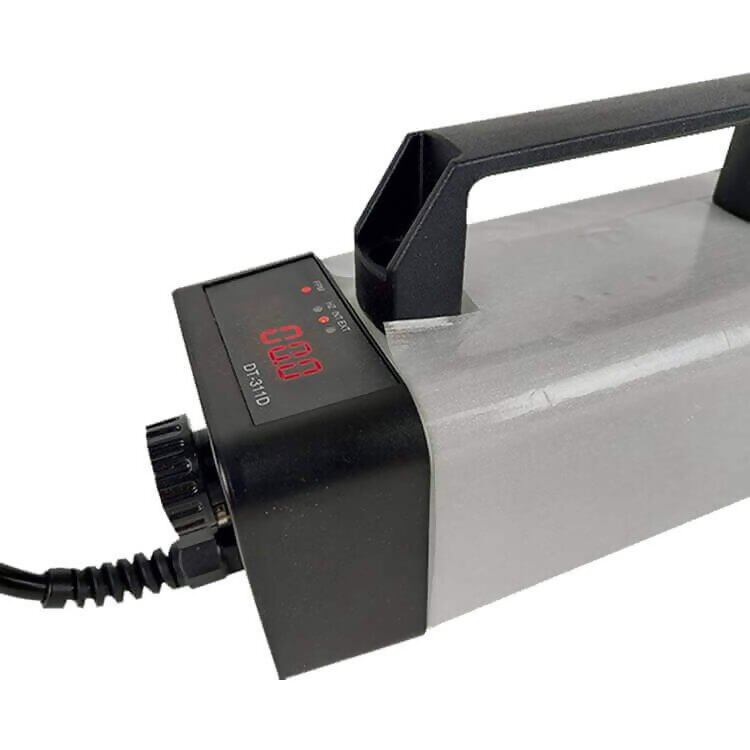

    Display5 digits, 10 mm high, red LED
    Flashtube Power/LifeXenon ≤ 45W / 50,000,000
    Flash Duration10-30 μs automatically adjusts with flash rate
    External Trigger Input5 V dc ~ 12 V dc pulse signal input (high level trigger) from sensor
    Sensor Power Supply12 V DC up to 50 mA
    Lux Rating8" (20 cm) Distance = 1550 lx @ 1500 fpm, 2350 lx @ 6000 fpm with 15.5" (400 mm) irradiation diameter. 20" (50 cm) Distance = 650 lx @ 1500 fpm , 580 lx @ 6000 fpm with 23.5" (600 mm) irradiation diameter
    Power Requirements85-240 VAC 60/50 H (Universal)
    Operating Temperature32-104 °F (0-40 °C)

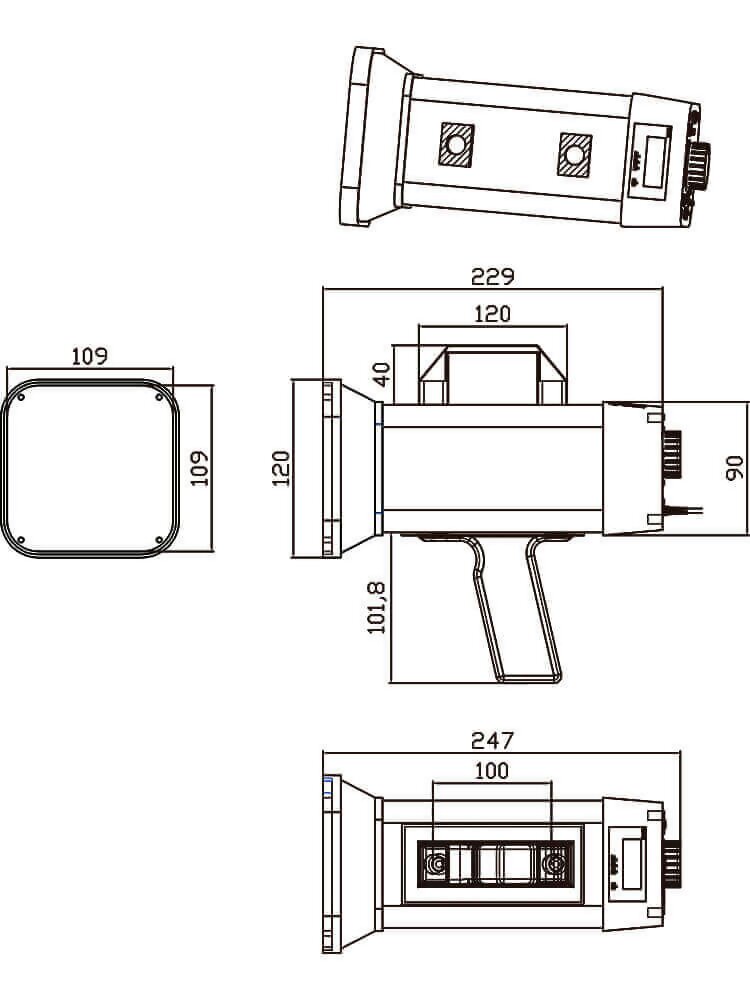

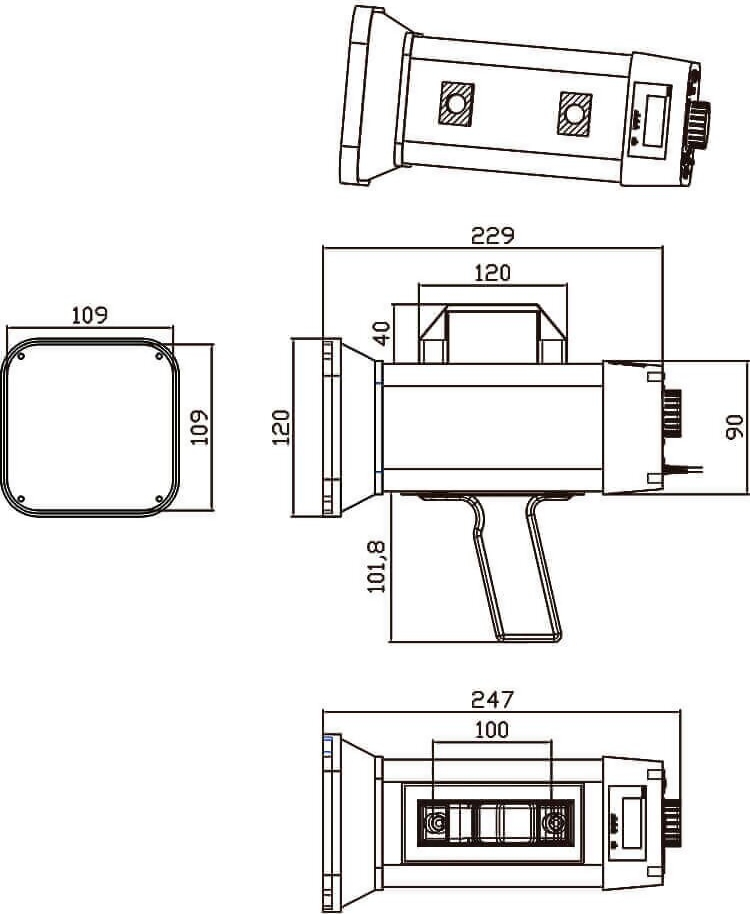

    Dimensions8.3 x 4.7 x 4.7" (210 x 120 x 120 mm)
    Unit Weight2.3 lbs. (1.0 kg)
    Warranty1 Year
    CertificationCE, RoHS
    Included AccessoriesTop & bottom handles, 9.8'(3 m) power cable, 3 pin female M16 threaded connector
