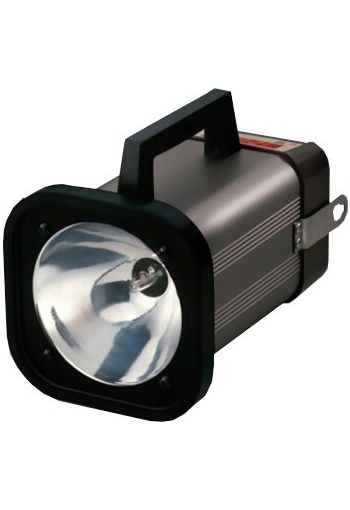

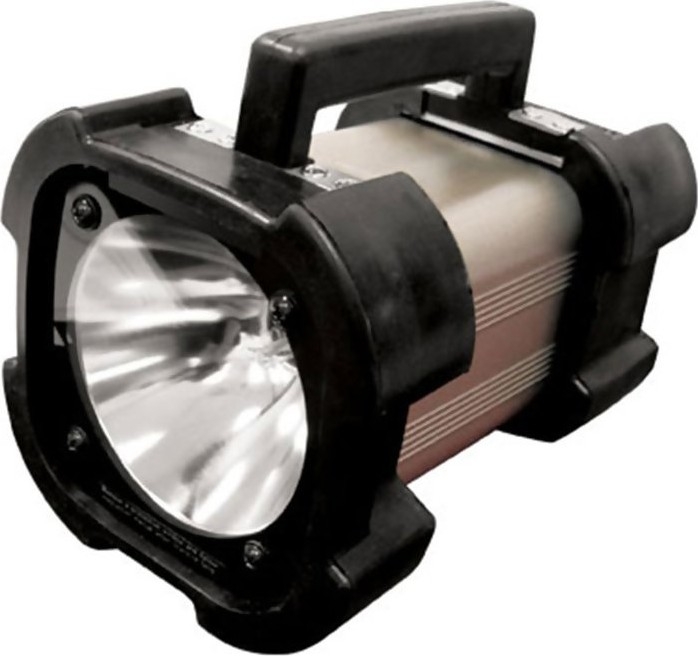

Shimpo DT-311J Splash-Proof Stroboscope

---

Range: 200 - 1,500 RPM/FPM

---

Power: AC 115 or 230 V

---

The Shimpo DT-311J Splash-Proof Stroboscope is designed for use in the harshest manufacturing environments and meet the specifications of protection code IP65.

They are designed for observing fast repeated motions and for determining RPM or inspection and observation of moving parts by "freezing" or "slowing down" the movement.

The instrument can be triggered by means of an external sensor (power supply for the sensor is provided by the stroboscope). The flashes can be delayed either in time or in rotation angle.

Features

---

• LIMTED RANGE: 200-1,500 RPM/FPM
• Water & Dustproof housing (IP65)
• Hand-held or tripod operation
• Easy-to-read LED display
• Accepts external trigger input and provides synchronizing pulse output
• Phase shift for best view and flash photography
• Easy-to-operate controls

Specifications

---

Flash Range	200-1,500 FPM
Accuracy	± 1 digit
Internal Signal Range	200 to 1,500
Delay Setter	Rotary Encoder
Display	4 digit, 10mm high Red LED
Divide Ratio	1/1, 1/2, 1/3, 1/4, 2/4 with shift
Input Signal	LO level: 0-0.4 VDC HI level: 2.5 - 12 VDC -- or open collector (npn) pulse width 50us min
Input Impedance	47 ohms
Display Mode	Phase shift (degree), Tachometer
Flashtube	Xenon lamp, max 10 W at 1,5000 rpm
Operating Temp	0 to 40°
Power Requirements	115 V or 230 V AC (specify), 50/60 Hz, 30 VA
Dimensions	149w x 174h x 214d mm
Weight	4.2 lb (1.9 Kg)
Warranty	1 year
