Shimpo DT-315A Digital Stroboscope, 40

Shimpo DT-315A Digital Stroboscope, 40 - 35,000 RPM / FPM

See More Stroboscopes

This product has been replaced by the DT-3015N Xenon

The Shimpo Shimpo DT-315A has been replaced by the Shimpo DT-3015N

Range: 40 - 35,000 RPM/FPM

Power: Internal Battery

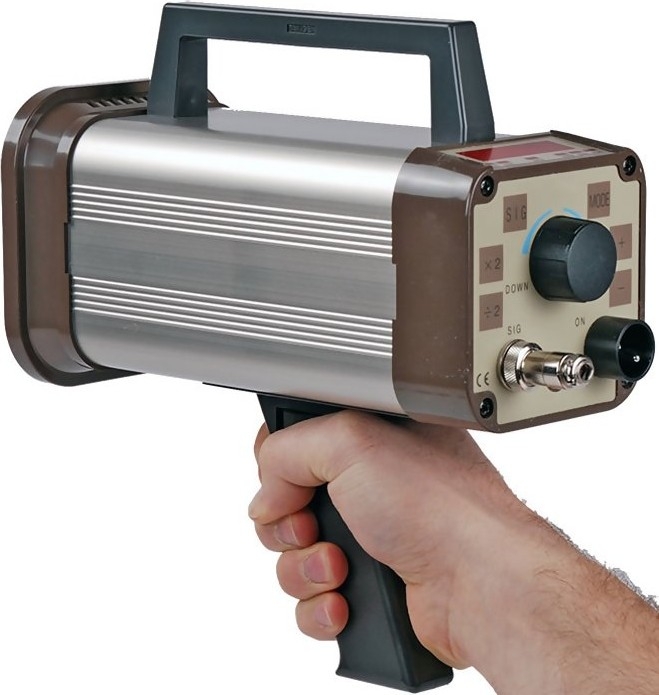

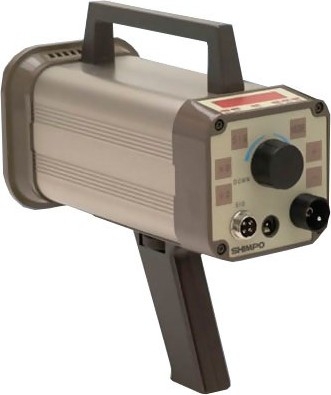

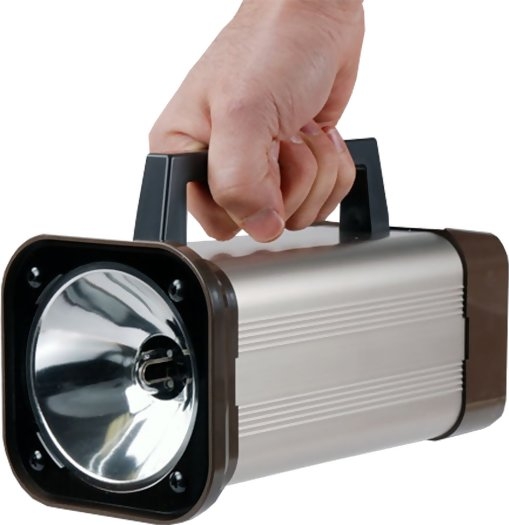

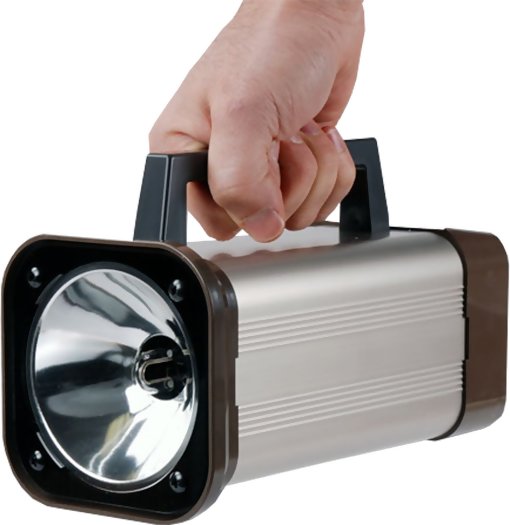

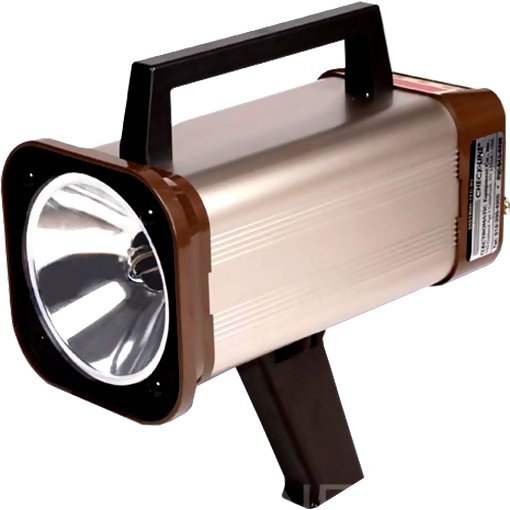

The Shimpo DT-315A Digital Stroboscope is a portable, highly stable and accurate, industrial-quality tools for non-contact RPM measurement, inspection and observation of moving parts by "freezing" or "slowing down" the action

line

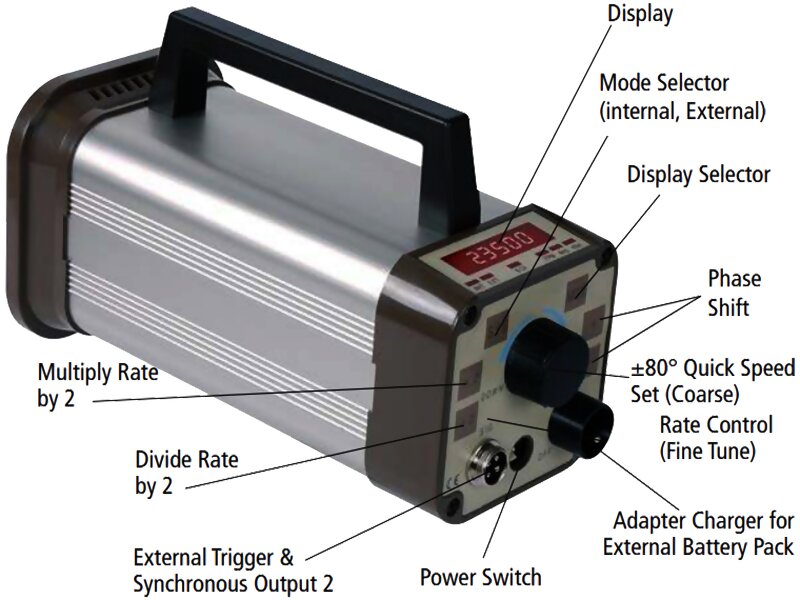

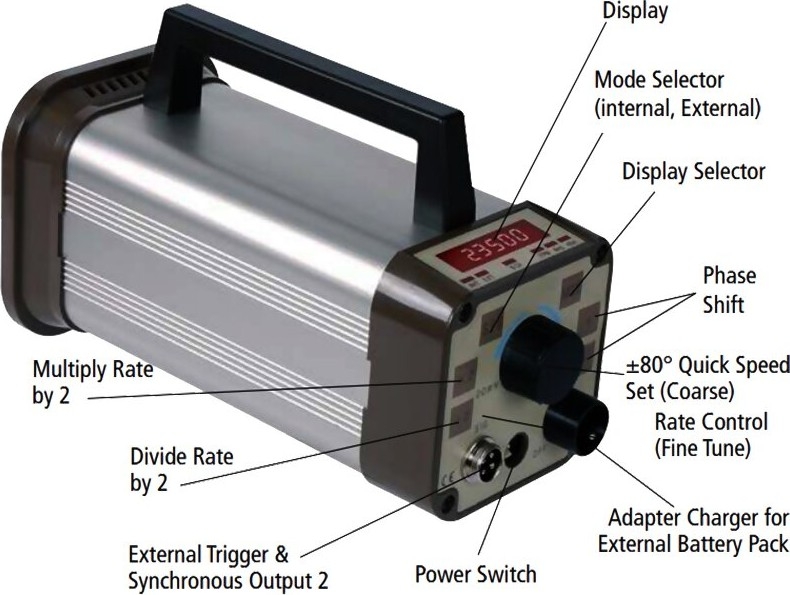

Features
line

Highest accuracy and most stable flash rate

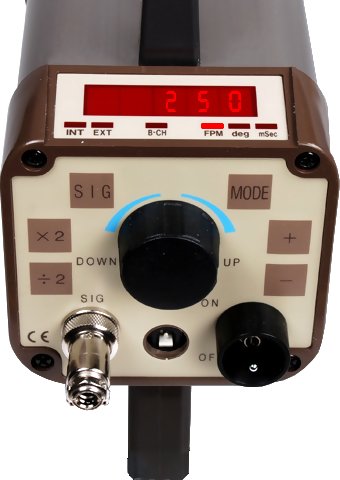

Easy-to-read LED display
Easy-to-operate controls

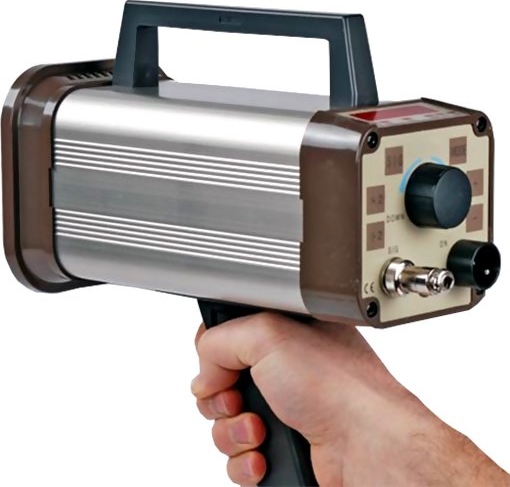

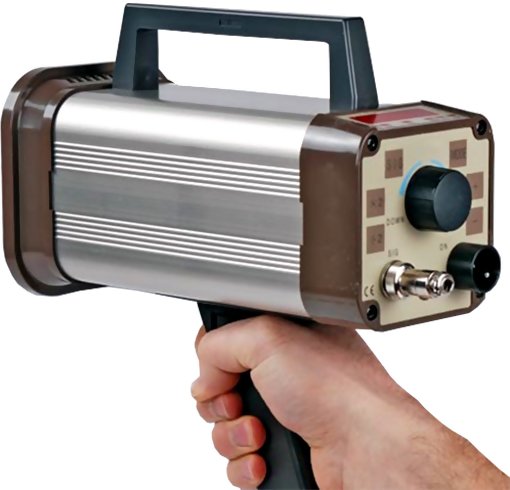

Detachable pistol-grip handle
Provides 12 V DC power for external sensors
Accepts external trigger input and provides synchronizing pulse output
Phase shift for best view and flash photography
Flash rate control
Instant double and half-rate flash selection for error-free reading

line
Specifications
line

Flash Range	40-35,000 FPM
Accuracy	Internal Mode: ±0.01% of reading External Mode: ±0.01% or ± 1 digit
Drift	±0.01% per degree C
Update Time	Internal Mode: 0.2 seconds External Mode: ±0.01% or ± 1 digit
Input Signal	LO level: 0-0.4 VDC HI level: 2.5 - 12 VDC -- or open collector (npn) pulse width 50us min
Output Signal	Synchronous, 400 µs pulse, 0 to approx. ± 12 V DC 1000 ohms impedance
Display & Rate	Divide or multiply by 2, selectable
Operating Temp	32-104° (0-40°C)
Display	5 digits, 10 mm high, red LED

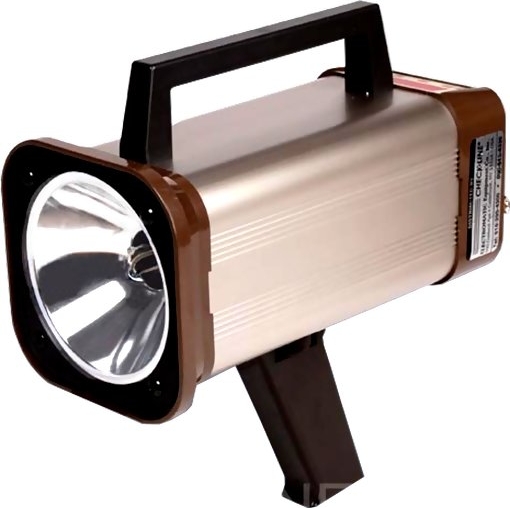

Flashtube	Xenon, 10 W maximum
Flash Duration	10-30 µs
Sensor Power Supply	12 VDC ± 0.5V (50ma)
Power Requirements	115 V AC or 230 V AC Adapter or one (1) hour, internal, rechargeable 12 V battery or external 12 V DC
Phase Shift	0 - 359° with 1° resolution or 0 - 333 ms from 200 - 3,000 FPM
Input Impedance	10,000 ohms
Battery Life	1 hour at high flash rate
Full Charge Time	16 hours
Weight	4.4 lbs. (2 kg)
Dimensions	4.7 x 5.6 x 9.7" (120 x 141 x 248 mm)
Warranty	1 year

line
Downloads
line

Shimpo DT-315A Digital Stroboscope - Data Sheet

Shimpo DT-315A Digital Stroboscope - External Connectors

Shimpo DT-315A Digital Stroboscope - Instruction Manual
